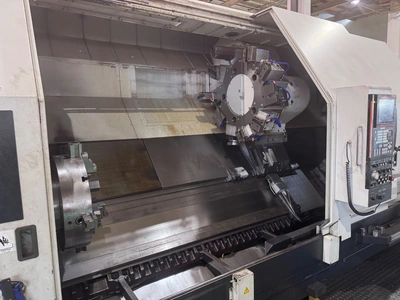

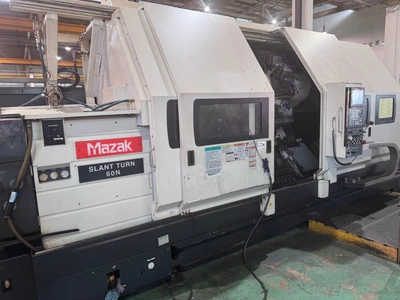

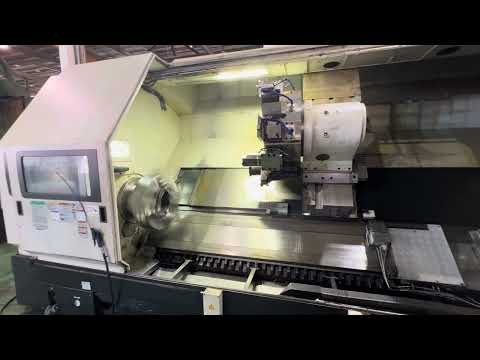

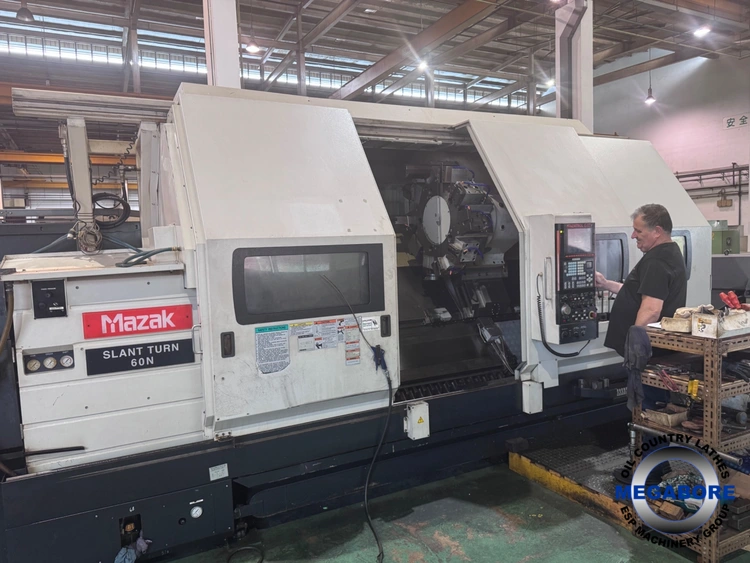

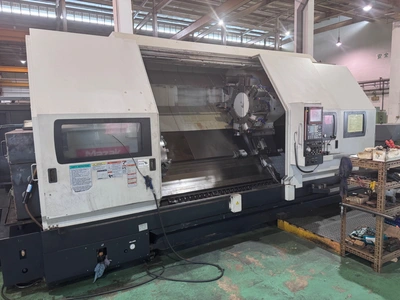

Mazak Slant Turn 60N - 900 swing x 3m between centers.
$185,000.00 USD
1 available
The Mazak Slant Turn 60N epitomizes the fusion of robustness and precision. Engineered for industries requiring meticulous attention to detail, from aerospace to energy sectors, this turning center offers unparalleled efficiency. With advanced features and a design built on years of expertise, the Slant Turn 60N is adept at managing both high-volume production and specialized projects, making it an indispensable asset for any serious machinist.
A Mazak Slant Turn 60NR from around 2005 is a heavy-duty CNC lathe for machining large, long shaft workpieces. The "N" in the model name indicates a newer generation of the machine, while the specific travel and capacity details can vary based on the original options included with the lathe.
A standard configuration for a 2005 model might have the following specifications, though you should always confirm details with the machine's individual service history:
260mm spindle bore.
900mm swing x 3000mm between centers

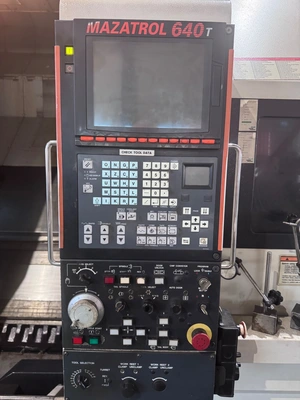

Mazatrol 640T control.
12 Station Turret. Tailstock with hydraulic quill.
SMW Hydraulic Steady Rest.
NOTE: Potential purchasers may have to be approved.
Maximum swing: 36 inches (914 mm)
Maximum turning diameter: 36 inches (914 mm)
Maximum turning length: Typically 120 inches (3048 mm)
Maximum workpiece weight: Around 1000 kg for some configurations

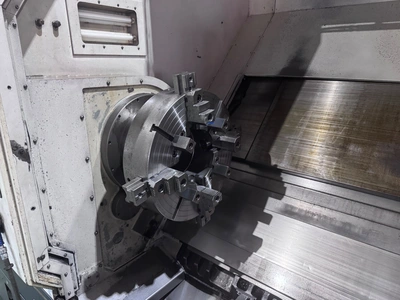

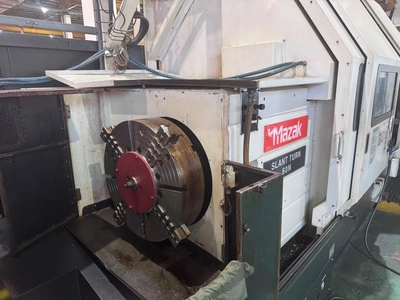

Chuck size: 24 inches. Front & Rear
Spindle bore: 260mm.
Spindle nose: A2-20
Spindle speed: Up to 1,000 RPM
Spindle motor: 60 horsepower

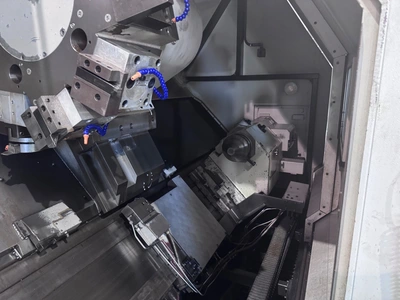

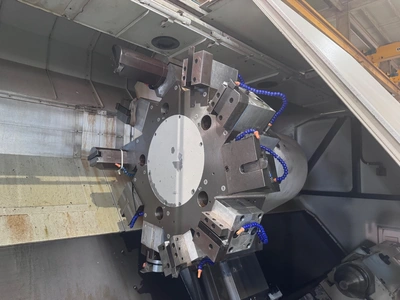

Turret
Tool capacity: Common configurations have 10 or 12 stations.
Travels and axes
X-axis travel: 25.3 inches (645 mm)
Z-axis travel is approximately 120 inches (3048 mm).
Rapid traverse (X/Z): For a 120-inch model, approximately 475/630 IPM
Control and features

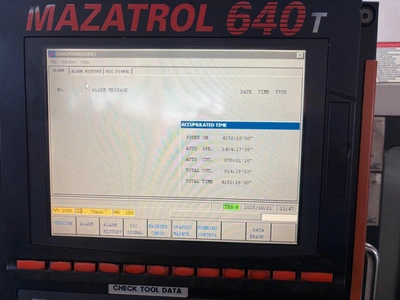

CNC control: Mazatrol Fusion 640T
Tailstock: Yes
