SA Series Slant Bed Swing 40 inch to 50 inch
Lathes, Oil Field & Hollow Spindle
.JPG)

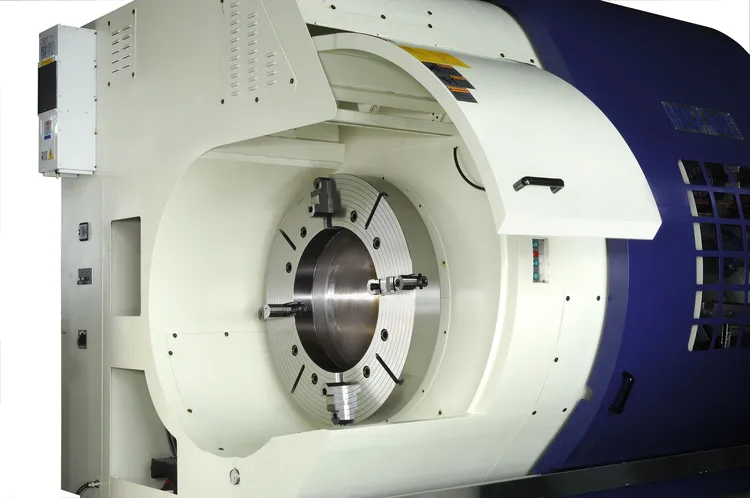

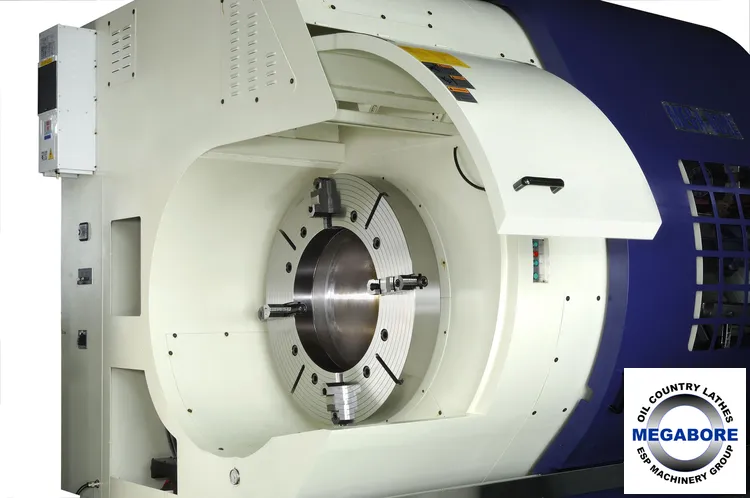

MEGABORE lathes are designed primarily for heavy duty turning operations with dramatic productivity.
The high quality casting construction assures optimum rigidity and stability.
Great horsepower motor provides high torque in low output speed which is excellent for heavy cutting.
BED WIDTH : 1580mm (62.20")
Each machine is manufactured to the highest quality standards.
SA-40 SA-45 SA-50 Number denotes swing over bed in inches.
When comparing Megabore Lathes to other brands check the weights, It is a well known fact that Mass absorbs vibration, this fact is even more important with modern cutting tools.
* One piece bed, 60° slant bed construction ensures maximum stability and convenient chip disposal.
* Alloy steel spindle with opposed taper roller bearings.
* All gears in the headstock are hardened and precisely ground.
* Automatic ranges of spindle speed through pneumatic gear shift.
* Spindle speed ranges are automatically changed by M code.
* Infinitely variable speed are commanded by S code.
* Tool change are commanded by T code.
* Auto lubrication system is equipped for headstock, carriage, and cross-slide.
* Precision tapered roller bearings are equipped on the spindle and the quill.
* The quill is heat treated and precisely ground.
* Internal taper of quill to suit MT#6 dead center or live centre.
* Turcite B anti friction material is applied on cross slide and carriage for reduce friction.
* X and Z axis ballscrews are protected by covers to prevent ingress of swarf / chips and coolant.
| Swing | 37" | 939.8 mm |
| Swing Options | Swing over bed 940mm 1,010mm 1,095mm (40 45 50 ins) | Swing over bed 940mm 1,010mm 1,095mm (40 45 50 ins) |
| Centers | 120" | 3,048 mm |
| Center Options | 700mm to 1700mm in 20" increments - 2200mm to 5200mm in 40" increments | 700mm to 1700mm in 20" increments - 2200mm to 5200mm in 40" increments |
| Spindle Bore | 14" | 355.6 mm |
| Spindle Bore Options | 6"~24" | 6"~24" |
| Power | 50 hp | 37.3 kW |
| Control | CNC (Fanuc) | CNC (Fanuc) |
ITEM UNIT:......................................................SA-40, SA-45, SA-50
All dimensions in inches
Swing over bed:..............................................37, Opt - 39.76, 43.11
Center height:..................................................23.81, 26.57, 29.92
Swing over cross slide.............................................34.25, 37, 40.35
Distance between centers...........................................27 to 206 inches
BED
Width / Slant angle.....................................................62.20 / 60°
CARRIAGE
Width of cross slide..........................................................23.62
TURRET
Standard tool post..........................................Polygon Disc / VDI disc
No. of tool stations..........................................V12 / Option V8;- V12
Turning Tool Size..........................................................ins 1.25
Boring Tool Size (max.).........................................................2.5
Ballscrew diameter.......................................X axis: 1.96; Z axis: 3.14
TAILSTOCK
Quill type.................................Built-in type, Rotating tail-stock quill
Quill diameter............................................................9.25 inch
Quill travel...................................................................7.87
Internal taper of quill........................................................MT#6
MOTOR
Headstock oil refrigerator
Main spindle....................................................(HP) 50-STD. 60-OPT.
Axis servo.................................KW(HP) X axis: 7(9.387); Z axis: 7(9.387)
Hydraulic tank.........................................................KW(HP) 3.7(5)
Coolant pump........................................................KW(HP) 1.05(1.4)
Controller:.........FANUC 0i-TF series-STD; FANUC 31i-B series / Other required-OPT.
Note:
(1) X and Z axes actual cutting diameter will change when equipped with different
turrets.
(2) Specifications are subject to change without notice for improvement.
Heavy Duty Slant Bed
Swing over Bed.........................................37 inch (Options 40, 43 inch).
Hollow Spindles available.........................................6 inch to 22 inch
Between centers.................................................28 inches to 17 ft.
*FEATURES.
* One piece bed, 60° slant bed construction ensures maximum stability and convenient
chip disposal.
* Alloy steel spindle with opposed taper roller bearings.
* All gears in the headstock are hardened and precisely ground.
* Automatic ranges of spindle speed through pneumatic gear shift.
* Spindle speed ranges are automatically changed by M code.
* Infinitely variable speed are commanded by S code.
* Tool change are commanded by T code.
* Auto lubrication system is equipped for headstock, carriage, and cross-slide.
* Precision tapered roller bearings are equipped on the spindle and the quill.
* The quill is heat treated and precisely ground.
* Internal taper of quill to suit MT#6 dead center or live center.
* Turcite B anti friction material is applied on cross slide and carriage for reduce
friction.
* X and Z axis ballscrews are protected by covers to prevent ingress of swarf / chips
and coolant.
* V12 turret.
* Rotating tailstock quill with 235mm diameter.
* Motorized tailstock body and quill movement.
* FANUC 0i-TF series complete with manual guide and thread repair.
* Front chip conveyor
