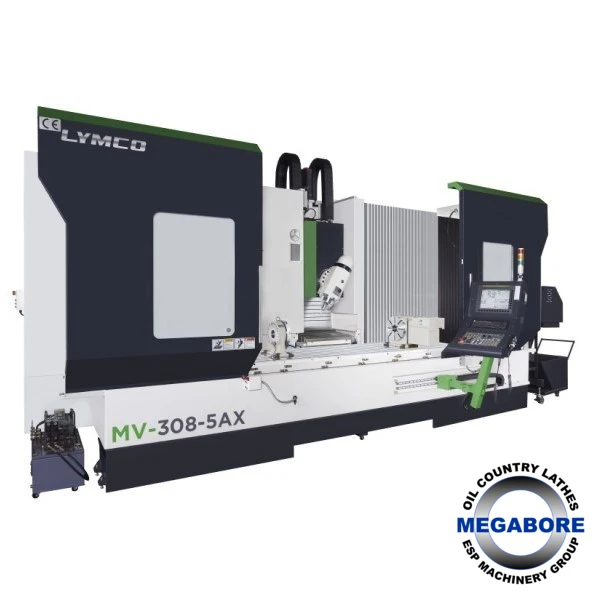

Machining Center 5 Axis Milling X Axis 3000 mm
Machining Centers VerticalLYMCO MV-5X family are based on popular European travelling column 5-axis contouring concept. Linear axis are isolated form the work holding area. Thus, allowing extra stability for delicate parts that require finishing quality. The embedded rotary table can be as big as 800mm to house a cutting envelop of ø820X500mm. The extra stationary table length makes it possible to machine very heavy and larger workpiece with 3+ 1 or 4 axis capability.
3-axis milling up to 5-axis simultaneous machining of parts to applications in the aerospace industry.
Large work area with X axis traverse from 2,000mm up to 6,000mm that permits 5 axis pendulum machining of smaller workpieces to save the set-up time.
Standard milling spindle 18,000rpm and moving column pivot spindle head in B-axis (+-110 degree) with embedded 630mm (up to 800mm) rotary table in (360 degree) C-axis position.
X | 118.11" | 3,000 mm |
Y | 31.496" | 800 mm |
Z | 27.559" | 700 mm |
Table Size | 3050 mm X 800 mm | 3050 mm X 800 mm |
Table Loading: | 3000 kgs | 3000 kgs |
Power | 20.1 hp | 15 kW |
RPM | 10,000 RPM | 10,000 RPM |
# ATC | 24 | 24 |
Taper | BT50 | BT50 |
Control | CNC (Fanuc or client specified,) | CNC (Fanuc or client specified,) |
Weight | 22,000 kg | 22,000 kg |
