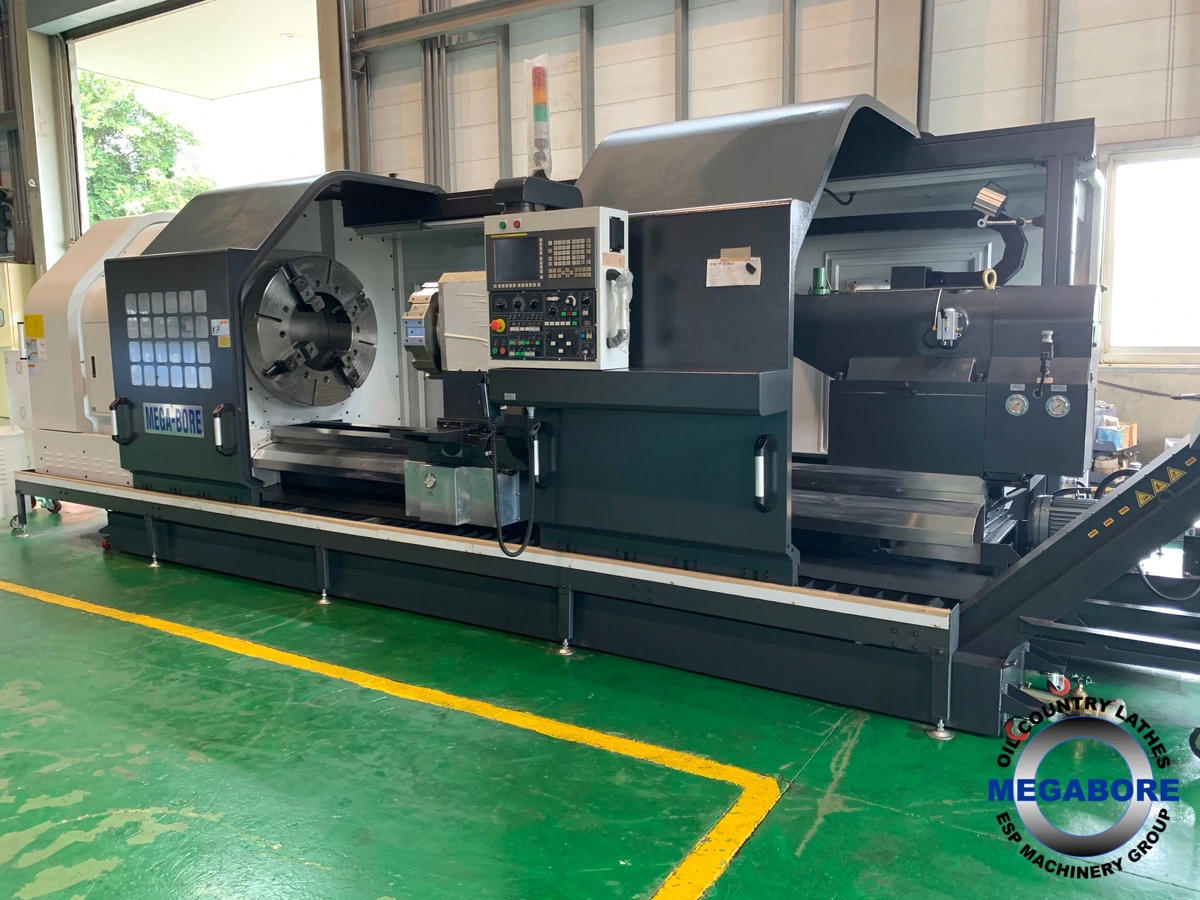

Spindle Bore 6 in to 22 in, CNC Lathe swing from 880 mm to 1275 mm
1 available
New
The LC series covers models LC-35 LC-40 LC-45 LC-50 number is swing over bed in inches. Please enquire for current stock.
Designed for heavy duty machining machine shop and the oil workshops.
Features.
* One piece bed, floor type casting.
* Alloy steel spindle with opposed taper roller bearings.
* All gears in the headstock are hardened and precisely ground.
* Automatic ranges of spindle speed through pneumatic gear shift.
* Spindle speed ranges are automatically changed by M code.
* Infinitely variable speed are commanded by S code.
* Tool change are commanded by T code.
* Auto lubrication system is equipped for headstock, carriage, and cross-slide.
* Precision tapered roller bearings are equipped on the spindle and the quill.
* The quill is heat treated and precisely ground.
* Internal taper of quill to suit MT#6 dead center or live centre.
* Turcite B anti friction material is applied on cross slide and carriage for reduce friction.
* X and Z axis ballscrews are protected by covers to prevent ingress of swarf / chips and coolant.
BED WIDTH 560mm
ONE PIECE RIGIDITY SHAPE BED GUIDE WAY
SWING OVER BED 880mm
SWING OVER CARRIAGE 510mm
SPINDLE SPEED STEPS; 4steps Gear Inside Of Headstock
Z-AXIS TRAVEL 4,000MM
DOVETAIL SHAPE CROSS SLIDE GUIDE WAY
CROSS SLIDE TRAVEL 610MM
HYDRAULIC PROGRAMMABLE TAILSTOCKWITH 235MM LIVING QUILL, A2-8 NOSE WITH MT#6 CENTER
TWO DOOR TYPE FULL LENGTH SPLASH GUARD ON REAR SIDE
H-4 HYDRAULIC TURRET, 250mm SQUARE FOR32mm X 32mm TOOL SHANK
FANUC 0iTF CNC CONTROL SYSTEM, FULL KEY OPERATOR PANEL
10.4’ LCD MONITOR
MANUAL GUIDE 0i WITH THREAD REPAIR FUNCTION
DUPLEX MPG PANEL
MINIMUM PROGRAM COMMAND 0.001mm
X-AXIS POSITION ACCURACY 0.01MM
Z-AXIS POSITION ACCURACY 0.0125/1000MM
REPEATABILITY 0.01MM
Z-AXIS SERVO MOTOR ALPHAiF30/4000 WITH FAN & ABSOLUTE CODE(7KW)
X- AXIS SERVO MOTOR ALPHA iF30/4000(7KW). MAIN SPINDLE MOTOR ALPHA iI40/7000 37/45KW(50/60HP)
STANDARD ACCESSORIES:
SWARF CHIP CONVEYOR (FRONT & REAR BOTH SIDE ) 2 SETS
HEADSTOCK OIL REFRIGERATOR (18,000BTU) 1 SET
CABINET AIR CONDITIONER (6,000BTU) 1 SET
FLUSH COOLANT WATER SYSTEM 1 SET
AUTO LUBRICATION SYSTEM 1 SET
26” STEEL BODY 4-JAW INDEPENDENT CHUCK
3-POINT ROLLER TIP 50~400MM STEADY REST
3-POINT ROLLER TIP 350~700MM STEADY REST
Or Client specified
