New

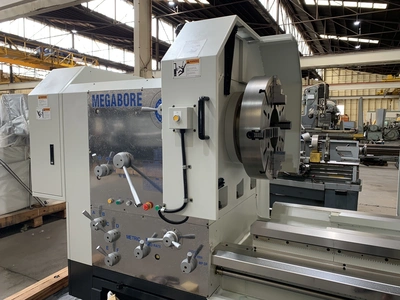

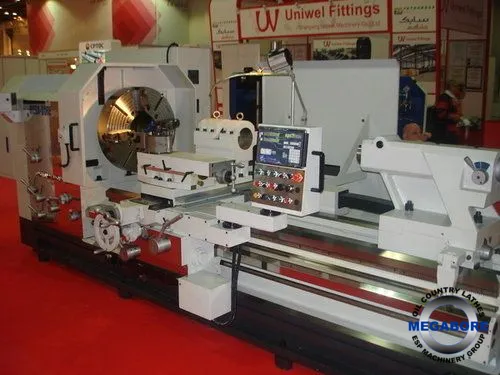

Our biggest selling lathe with the following features.
* One piece bed, floor type casting.
* 2 shear bed way with extra way supporting the apron.
* All ways are hardened and ground.
* Alloy steel spindle with opposed taper roller bearings.
* Hardened and ground gears, shafts.
* Electromagnetic spindle brake.
* 18-speed geared headstock.
* 6-way rapid traverse and power feed to top slide.
* Totally enclosed universal inch / metric gear box.
* Carriage position device.
* Dual voltage spindle motor, 20 to 50 HP.
* Pressurized one shot lube system for cross slide and carriage.
BED WIDTH : 560mm (22.04")
PA series PA-35 PA-40 PA-45 PA-50
Swing over bed 880mm 1,010mm 1,135mm 1,275mm
Swing over cross slide 615mm 745mm 875mm 1,015mm
Swing over gap 1,340mm 1,470mm 1,600mm 1,740mm
Distance between centers 1,500mm~12,000mm in 40" increments
Spindle nose A2-11~A2-32
Spindle bore 6"~14" 6"~14" 6"~18" 6"~22"
Spindle motor Standard-20HP ; Option-25HP,30HP,40HP,50HP
* 1 dead centre, MT #6.

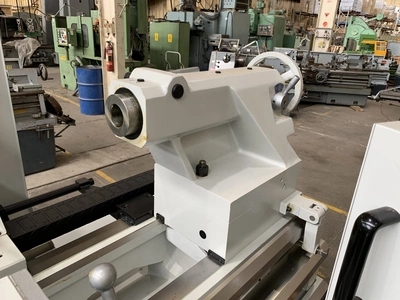

* 2-speed tailstock quill (manual).
* One piece stainless steel leadscrew cover.
* Coolant pump.
* Follow type splash guard.
* Rear side chip and water collect plate.
* Thread chasing dial.
* Water and oil collect plate under apron.
* Work lamp.
Chucks, Steadies, etc according to Client requirements
Our biggest selling lathe with the following features.
* One piece bed, floor type casting.
* 2 shear bed way with extra way supporting the apron.
* All ways are hardened and ground.
* Alloy steel spindle with opposed taper roller bearings.
* Hardened and ground gears, shafts.
* Electromagnetic spindle brake.
* 18-speed geared headstock.
* 6-way rapid traverse and power feed to top slide.
* Totally enclosed universal inch / metric gear box.
* Carriage position device.
* Dual voltage spindle motor, 20 to 50 HP.
* Pressurized one shot lube system for cross slide and carriage.
Metric
| Swing | 34.646" |
| Swing Over Cross Slide | 24.213" |
| Centers | 59.055" |
| Spindle Bore | 152.4 mm |
| Spindle Bore Options | 6"~14" 6"~14" 6"~18" 6"~22" Machine size dependant. |
| Weight | 22000 Lbs |
BED WIDTH : 560mm (22.04")
PA series PA-35 PA-40 PA-45 PA-50
Swing over bed 880mm 1,010mm 1,135mm 1,275mm
Swing over cross slide 615mm 745mm 875mm 1,015mm
Swing over gap 1,340mm 1,470mm 1,600mm 1,740mm
Distance between centers 1,500mm~12,000mm in 40" increments
Spindle nose A2-11~A2-32
Spindle bore 6"~14" 6"~14" 6"~18" 6"~22"
Spindle motor Standard-20HP ; Option-25HP,30HP,40HP,50HP
* 1 dead centre, MT #6.
* 2-speed tailstock quill (manual).
* One piece stainless steel leadscrew cover.
* Coolant pump.
* Follow type splash guard.
* Rear side chip and water collect plate.
* Thread chasing dial.
* Water and oil collect plate under apron.
* Work lamp.
Chucks, Steadies, etc according to Client requirements
