New

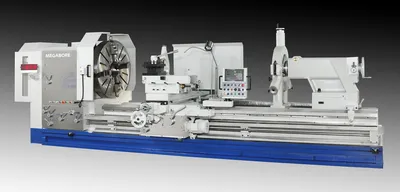

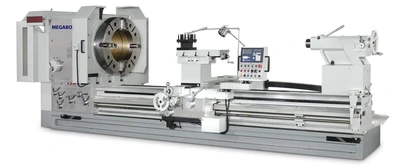

Introducing the MEGABORE PB-60 Lathe, crafted for heavy-duty performance in diverse industries. With a 60" swing, 157 centers, (according to requirements), and 6" spindle bore, this 40 HP powerhouse guarantees exceptional versatility and efficiency.

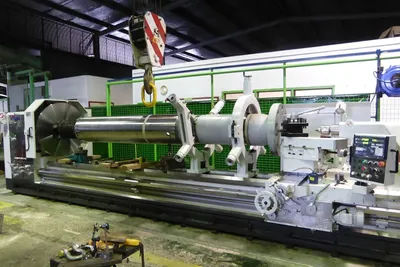

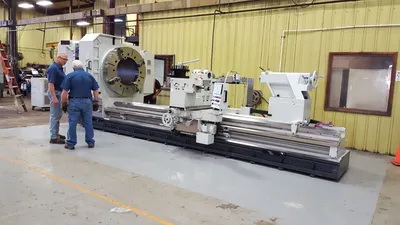

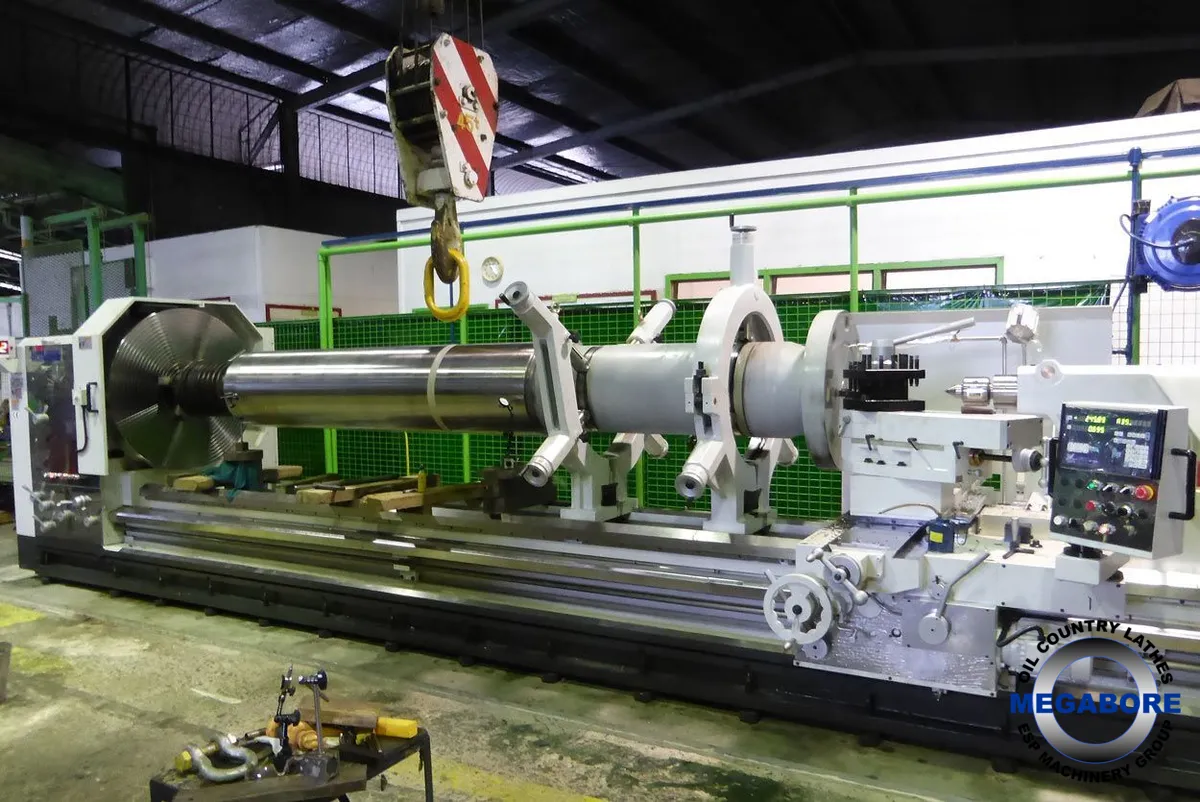

The photos shown are of some PB series we have installed, including The OK Tedi Mine in PNG and South Carolina USA.
MEGABORE HEAVY DUTY LATHE MODEL PB60x7000mm x6” Bore.
Spindle Bore …………………………………..………………………………….....155mm
Swing over bed ………………………………………………………………….....1525 mm
Swing over cross slide…………………………………………………….…….1,210mm
Swing in gap…………………………………………………………………………...1980 mm
Distance between centres ……….…………………………………….……4000 mm
Maximum load between centres including support………...8,000Kgs
SPECIFICATION
Spindle Bore 155mm
Swing over bed 1530mm
Swing over cross – slide 1210 mm
Distance between centres 7000 mm
Spindle speeds – Vari by Inverter 7-700 rpm
Cross slide travel 800 mm
Compound slide travel 500 mm
Metric Threading 1-56mm (60)
Inch Thread TPI ½-28 (60)
Module thread MOD 0.25-14 (60)
Diametric DP 2-112 (60)
Tailstock quill Diameter 145 mm
Tailstock travel 200 mm
Quill Taper MT6
Motor capacity 40 HP 415v 50hz
Weight of machine (approx.) 16,000 Kgs
Spindle nose A2-20
4 way Tool post 255 mm square
ACCESSORIES INCLUDED
50” Dia Steel Body 4 Jaw Chuck with 6” bore 2 Sets
2 Axis – DRO with control Panel 1 Set
Follow type steady rest 1 Set
Fixed Steady rest 350-700 mm closed type 1 Set
U-Shape Steady rest 1 Set
6 Way rapid traverse 1 Set
Auto lubrication system 1 set
Overload safety device 1 Set
Coolant System 1 Set
Work Light 1 Set
Centre with MT#6 1 Set
Operation service manual 1 Set
Front & Rear chuck covers with limit switch 2 Sets
Levelling Bolts & pads / Toolbox 1 set
OPTIONAL ACCESSORY IF REQUIRED
Taper Turning Attachment POA
