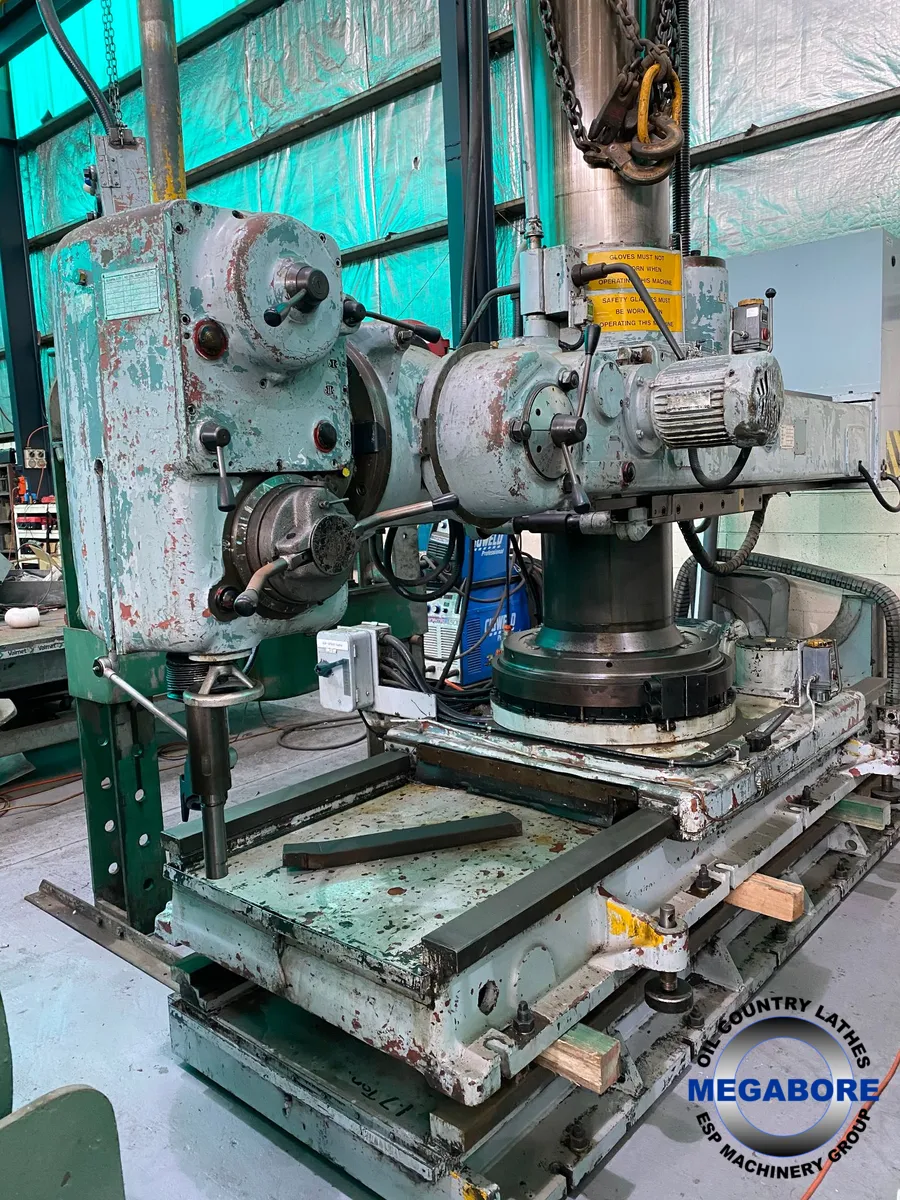

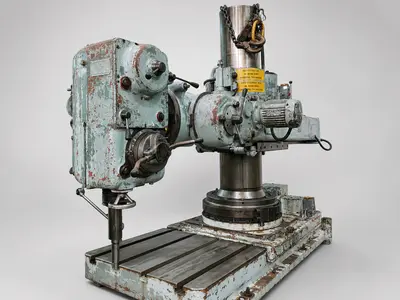

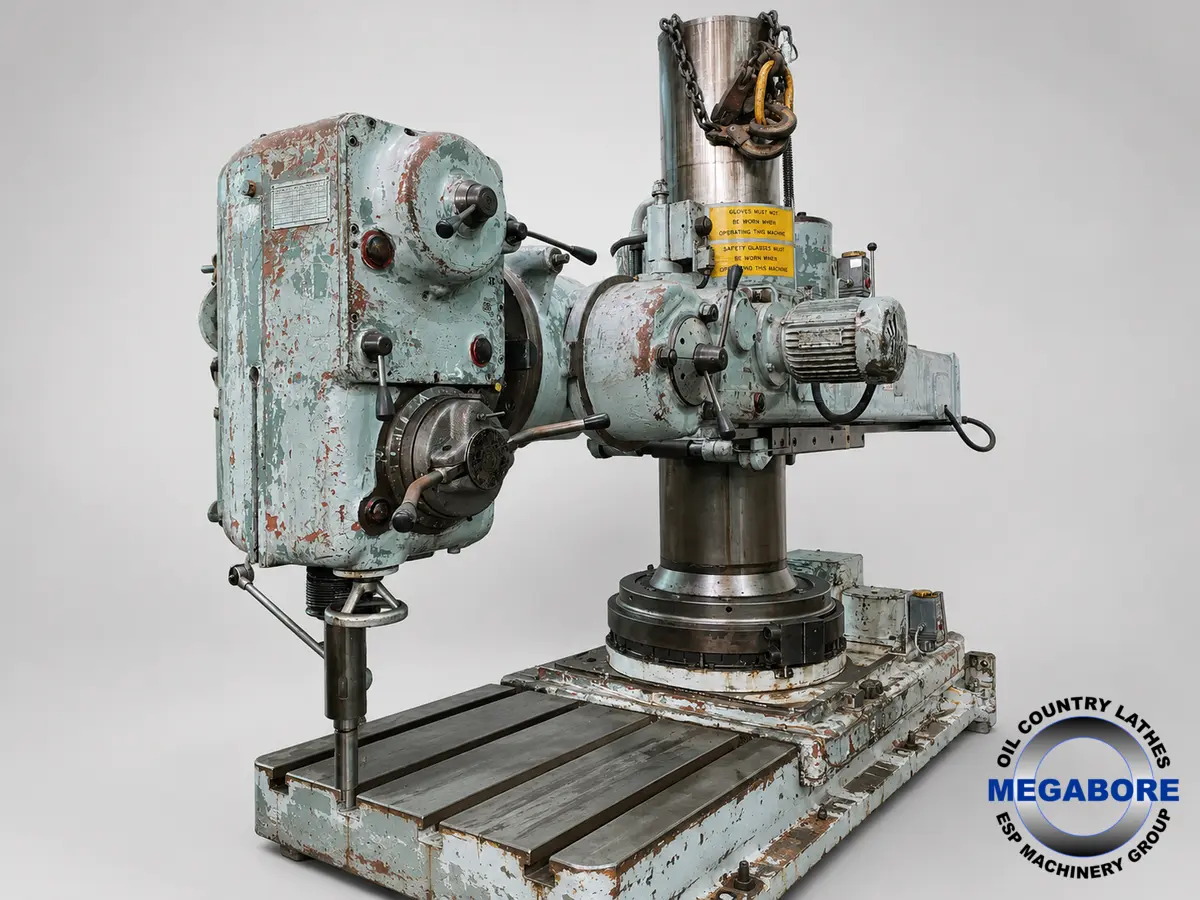

The MAS VRM-50A Portable Radial Drill is a heavy-duty industrial drilling machine designed for machining large fabrications and oversized components where the workpiece cannot easily be moved.
Fitted with a 5 Morse Taper spindle, the machine is capable of accepting tooling for drilling up to approximately 50 mm diameter, while the power locking system provides quick and secure positioning of the drill head during operation.
The machine offers approximately 3,000 mm of longitudinal travel and is equipped with a lifting shackle for convenient movement around the workshop or job site.
Although the paintwork reflects a poor attempt at a repaint, the machine remains in excellent mechanical condition, making it an ideal choice for fabrication shops, heavy engineering, mining maintenance and general industrial applications where reliability and capacity are more important than cosmetic appearance.
Portable Radial Drill, 5 Morse Taper.
Power locking.
With lifting shackle.
Paintwork is not good but machine is in excellent condition.
Additional Specifications
Item Specification
Manufacturer MAS
Model VRM-50A
Machine Type Portable Radial Drill
Spindle Taper 5 Morse Taper
Maximum Drill Capacity Approx. 50 mm (in steel using 5MT tooling)
Spindle Speeds Up to 750 RPM
Locking System Power Locking
Machine Weight Approx. 8,800 kg with auxiliary table.
Lifting Shackle Fitted
Spindle Speeds: Ranging from 16 to 800 RPM
Vertical Arm Travel: 1,250 mm
Maximum Arm Reach / Throat: Up to 2,200 mm from the column (plus carriage travel)
PLUS GST FOR AUSTRALIAN BUYERS
