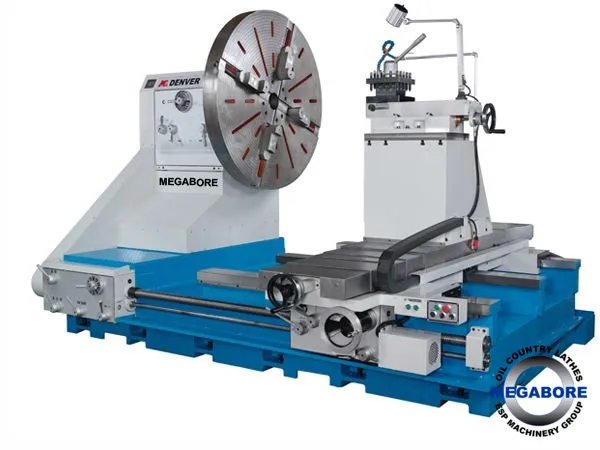

The Megabore Denver is suitable for turning large diameters for heavy machine shops, aerospace etc.
(1) One piece casting work with reinforced inner structure, extra 3rd support to be suitable
for processing of large work piece and enhanced heavy-duty cutting ability.
(2) The gap part base special with reinforced structure, it is no influence on cutting stability
to break the gap for necessary.
(1) Bore 152mm, 16-step speed change, turbine speed change mechanism with no easy
speed jumping and three-point support for the box.
(2) Fitted with adjustable, electromagnetic brake for easy braking adjustment according to
different work piece materials and speed.
(3) Gear and shaft are made of super alloy material with bearings to offer durable
cutting and low production noise.
(4) Sealed oil bath lubrication system with enforced oil supply by mechanical pump to
achieve better lubrication effects.
3. Apron feeding device
Swift transmission, positive and negative rotation movement and safety device with auto sealed oil bath lubrication & cross rapid feeding.
Anti-friction processed surface with regular oil injection, lubricated and friction endurable.
5. Electrical control
20HP Motor, 2 stage safety start-up device and overloading power cut system.
FC-30 steel are used for main structures like base, spindle, saddle, which are annealed and have no deformation.
Base, spindle, saddle, alot surface of traveling plate, tool base sliding table, tail shaft pipe are high frequency treated, precision ground for extended service life.
1. Strong Tailstock device
2. Face plate with 4-jaw 70"
3. Coolant device
4. Spindle bore (230mm) 9"
5. Spindle nose:A2-15
6. Spindle nose:A2-20
|Swing Options||1,500 mm - 2,500 mm||1,500 mm - 2,500 mm|
|Swing Over Cross Slide||62.992"||1,600 mm|
|Swing Over Cross Slide Options||1100 - 1600 - 2100 mm||1100 - 1600 - 2100 mm|
Model HF-1500 HF-2000 HF-2500
Capacity Swing over Bed 1500 2000 2500
Swing over cross slide 1100 1600 2100
Distance between centers 1000
Bed Swing over gap 1900 2400 2900
Width of Bed 2010 (79")
Length of Bed 1150
Bed way 3 ways
Headstock Spindle bore diameter 152 (6") OP: 230 (9")
Numbered of spindle speeds 16 steps
Range of spindle speeds 4~420 rpm
Spindle nose ASA A2-11 / OP:A2-15,A2-20
Top slide travel(Compound rest travel) 370(14.57")
Max. size cutting size 40 x 40(1.57" x 1.57")
Motor Main spindle Motor 30HP (22.5kw)
Coolant pump Motor 1/8HP (0.1kw)
Color Upper parts+ lower parts light gray white RAL-7035 + blueRAL-5015
* The Measurement be required.
* We reserve the right to modify and improve our products without notice.
1. Lubricating device for Headstock
2. Spindle Motor :30HP
3. Magnetic brake
4. Metric / Inch gearbox
5. Longitudinal & cross rapid feeding
6. XZ-axes auto lubrication
7. XZ-axes with Turcite-B
8. Face plate with 4-jaw 60"
9. Dead center
10. Center sleeve
11. Tool post screw wrench
12. Level pads
13. Tools & tool box
14. Operation manual
