Machining Center 1600 mm x 1000mm x 1200 mm CNC

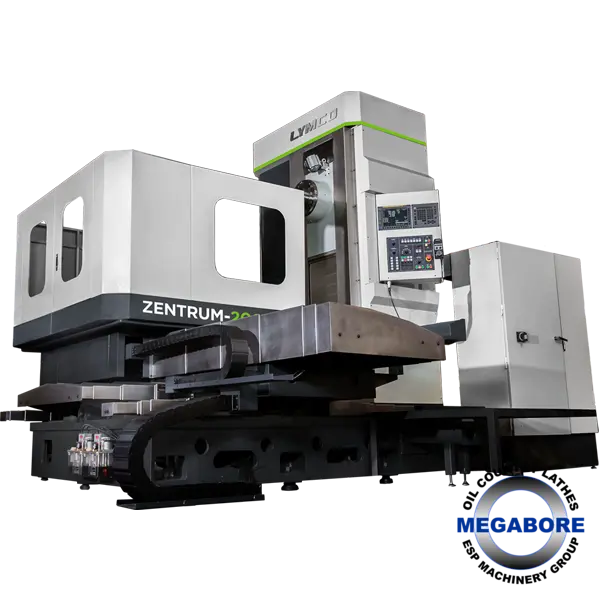

Boring and Milling CNCThe ZENTRUM-200Q horizontal machining center is designed to handle heavy-duty machining tasks.
The design, structure, and building procedures are used to provide confidence and consistent results in heavy cutting.
The 200mm quill diameter is specifically designed and manufactured for stable heavy milling.
Massive, over 1000Nm torque was produced at the spindle to handle a large variety of materials.
The centrally mounted spindle allows for a stable geometry form. In return, allowing a vibration dampening structure as the backbone of the machine.
Made in Taiwan where they are now making machines of quality matching European brands.
Please contact us for further information.
Spindle Size | 7.874" | 200 mm |
X-Horiz Tvl of Table | 62.992" | 1,600 mm |
Alternate X axis Zentuum 110R3 | 3000 mm | 3000 mm |
Y-Vert Tvl of Head | 47.244" | 1,200 mm |
Alternate Y axis Zentuum 110R3 | 2000mm | 2000mm |
Spindle Tvl. | 39.37" | 1,000 mm |
Quill Travel | 400 mm | 400 mm |
RPM | 200,030,000,000 RPM | 200,030,000,000 RPM |
Table-W | 49.213" | 1,250 mm |
Table-L | 47.244" | 1,200 mm |
Alternate Table size Zentuum 110R3 | 1600 mm 1400 mm | 1600 mm 1400 mm |
Table Loading | 4500 kg | 4500 kg |
Control | CNC (Fanuc or client specified,) | CNC (Fanuc or client specified,) |
Weight | 20,000 kg | 20,000 kg |
ZENTRUM-200Q
Table loading capacity (kg) 4500
Max. spindle torque (Nm) 1360 (665)
Rapid travel X, Y, Z, W (mm/min) 13,000/13,000/13,000/3000
Cutting feed (mm/min) 5000 XYZ/ 3000 W
Machine weight (kg) 20,000
Optional add-on of an Automatic Pallet System.
