Horiz Boring and Milling X 2000 Y 1600 Z 1300 mm CNC

Description

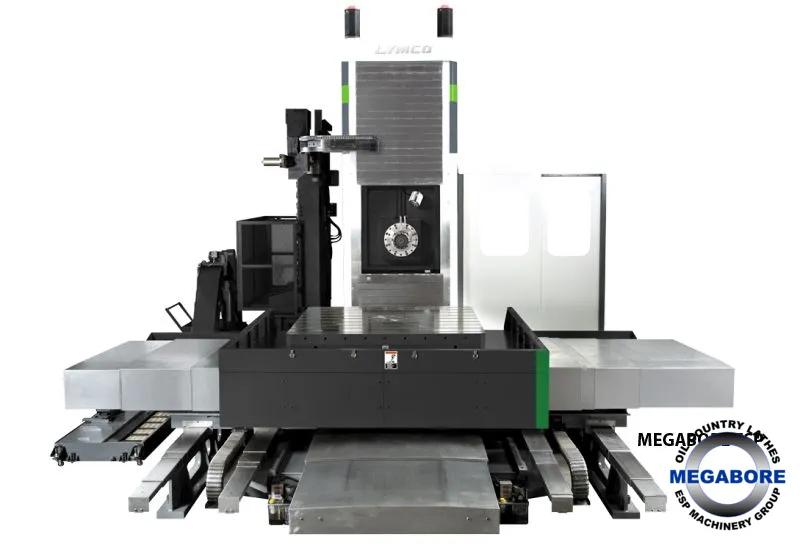

Lymco Zentrum-110R2, a high-precision boring and milling CNC with extensive travel capacity of X 2000 Y 1600 Z 1300 mm. It features a powerful spindle motor and rapid cutting feed of 5000 mm/min, perfect for meeting high-demand manufacturing needs. A sturdy build, weighing 29,000 kg, with a loading capacity of 8,500 kg, ideal for heavy-duty operations. The machine's bigger brother the R3 offers 3m of x travel and 2m of y travel.Trust ESP Machinery Australia Pty Ltd for top-quality new machinery with the latest technology.

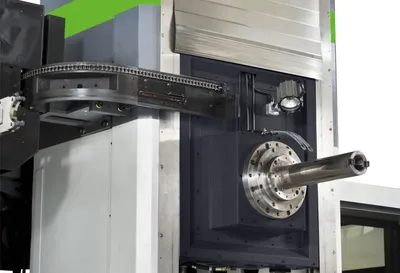

ZENTRUM's spindle design based on technological cooperation with Japanese developers. This feature allows the spindle to sit in the middle of the column frame (box), thus forming a box-in-box structure. Additional stability is provided by dual Y-axis ball screws. The Zentrum comes in 2 configurations 110R2 and 110R3. Specs for R2 with R3 Alternative listed.

Accuracy by design
Massive 2+4 base design, TWO box ways paired by FOUR linear along the Z axis feed provide unparalleled support for heavy cutting on different applications. Box type hardness steel guideway with anti-friction Fluorine resin and forced-lubrication been applied for large-size machine and provided for the X, and Z axis guideways, positioning are performed with excellent accuracy and smooth stick/slip-free slide movements are assured.
Table for heavy jobs
Stable movements, accurate indexing and precision positioning almost uninfluenced by the weight of the work are assured for the rotary table. On the other hand, hydrostatic slideways technology are applied for table loading over 30 tons, the highly rigid structural components, and the efficient drive system
Built for heavy duty
The stable performance for milling, drilling and boring operations on heavy workpieces of large dimensions.
