VMC C Frame - X Axis 850 mm to 3000 mm
Machining Centers Vertical

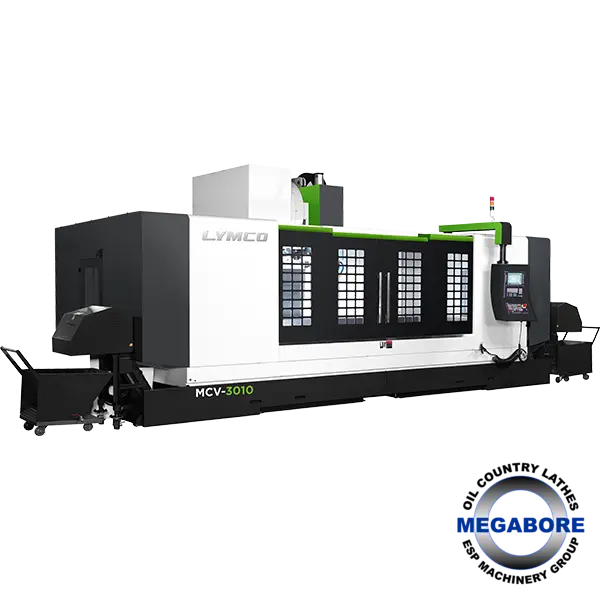

MCV C-frame includes box way and linear way. The MCV box way is a popular choice for general part making involving heavy milling operation. It is designed to handle some of the typical jobs performed in general shops that require a bigger travel, high torque (from the gearbox), and consistent performance. The MCV linear way has the characteristic of small foot print, rigid construction, and well-balanced cutting power.

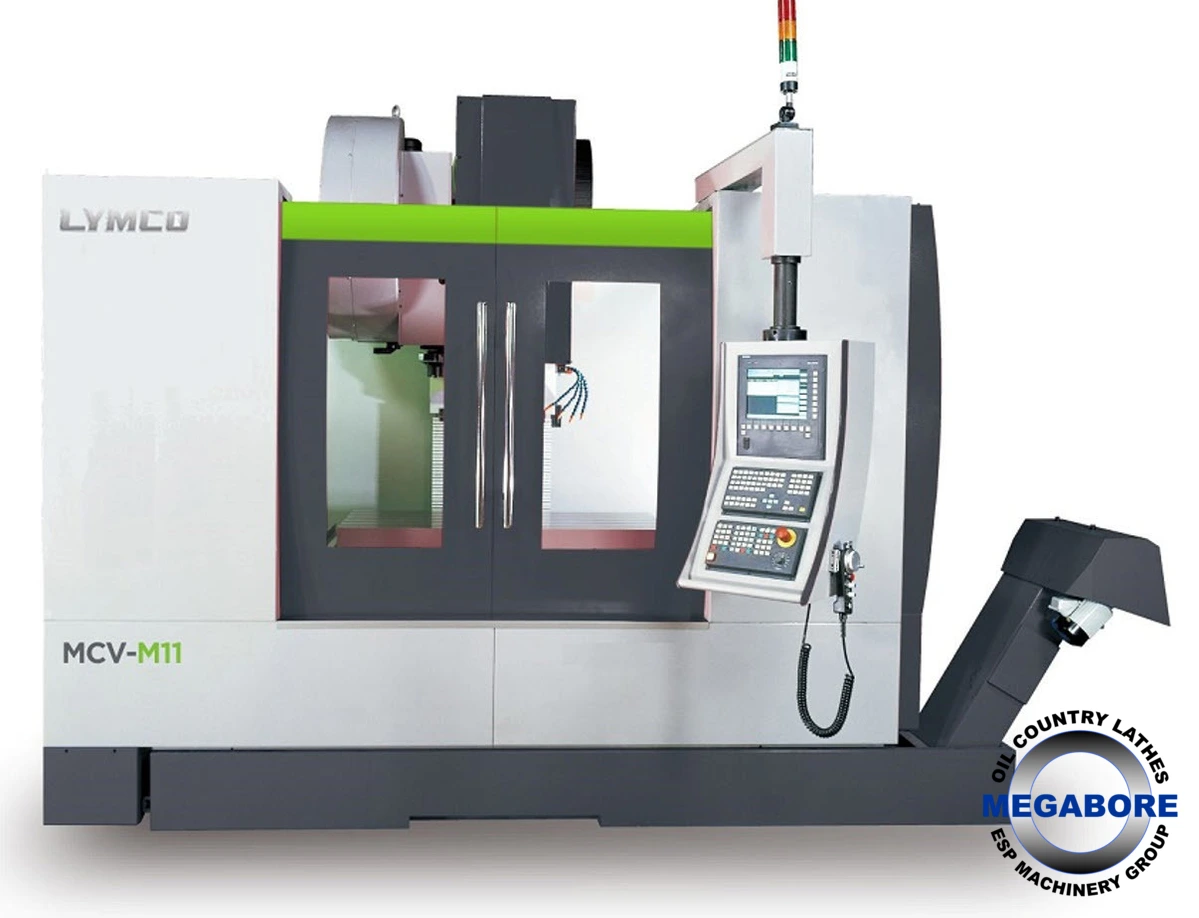

The MCV machining center is a matured machine with solid all-around performance. Additional accessories such as the Renishaw tool presetter, parts probe, Heidenhain scales, various spindle speed and torque selection, and a combination of different pressure coolant through the spindle are all available for a special configuration. The low maintenance rate of 0.1% in the first year had been the benchmark for LYMCO machines.
Print out spec sheets to compare the different models of this series.
| X | 43.307" | 1,100 mm |
| X Axis Alternitave: | 850 1200 1400 | 850 1200 1400 |
| Y | 25.591" | 650 mm |
| Y Axis Alternitave: | 700 | 700 |
| Z | 23.622" | 600 mm |
| Z Axis Alternitave: | 700 | 700 |
| Table Size | 1300 X 600 | 1300 X 600 |
| Table Size Alternitave: | 1450 X 680 mm | 1450 X 680 mm |
| # ATC | 24 | 24 |
| Control | CNC (Fanuc or client specified,) | CNC (Fanuc or client specified,) |
MCV-86 MCV-116 MCV-127 MCV-147E MCV-147
X axis (mm) 850 1100 1200 1400 1400
Y axis (mm) 650 650 700 700 700
Z axis (mm) 600 600 600 600 700
Table loading capacity (kgs) 800 800 1000 1200 1400
Table size (mm) 1,050 X 600 1,300 X 600 1,300 X 600 1,450 X 600 1,450 X 680
Max. spindle speed (rpm) 10,000 / 15,000 10,000 / 15,000 10000 8000 10000
Spindle drive motor (kw) 7.5 / 11 7.5/ 11 11 / 15 11 / 15 15/18.5
Rapid on X,Y,Z (mm/min) 18000 18000 18000 18000 18000
Cutting feedrate (mm/min) 1-5,000 1-5,000 1-5,000 1-5,000 1-5,000
Machine weight (kgs) 7000 7500 8500 10000 14000
Standard Accessories
Spindle oil cooling system
Cutting coolant system
Chip air blow device
Spindle air blow system
ATC 24 tools
Pneumatic system
Automatic lubrication system
Heat exchanger for control cabinet
Fully enclosed splash guard
Ball screw cover, X/Y/Z axes telescope type
Coolant tank
Chip auger
M.P.G
Rigid tapping
One set of working lamp
Three color end of indication lamp
Auto power off
Tool kit
Leveling bolts and pads
Operator and maintenance manual
Parts list
