Machining Center Vertical X Travel 1100 mm
Machining Centers Vertical

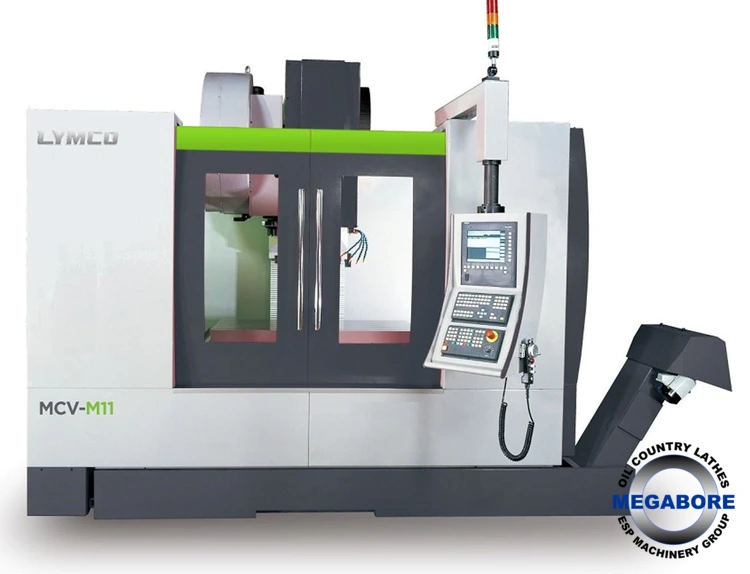

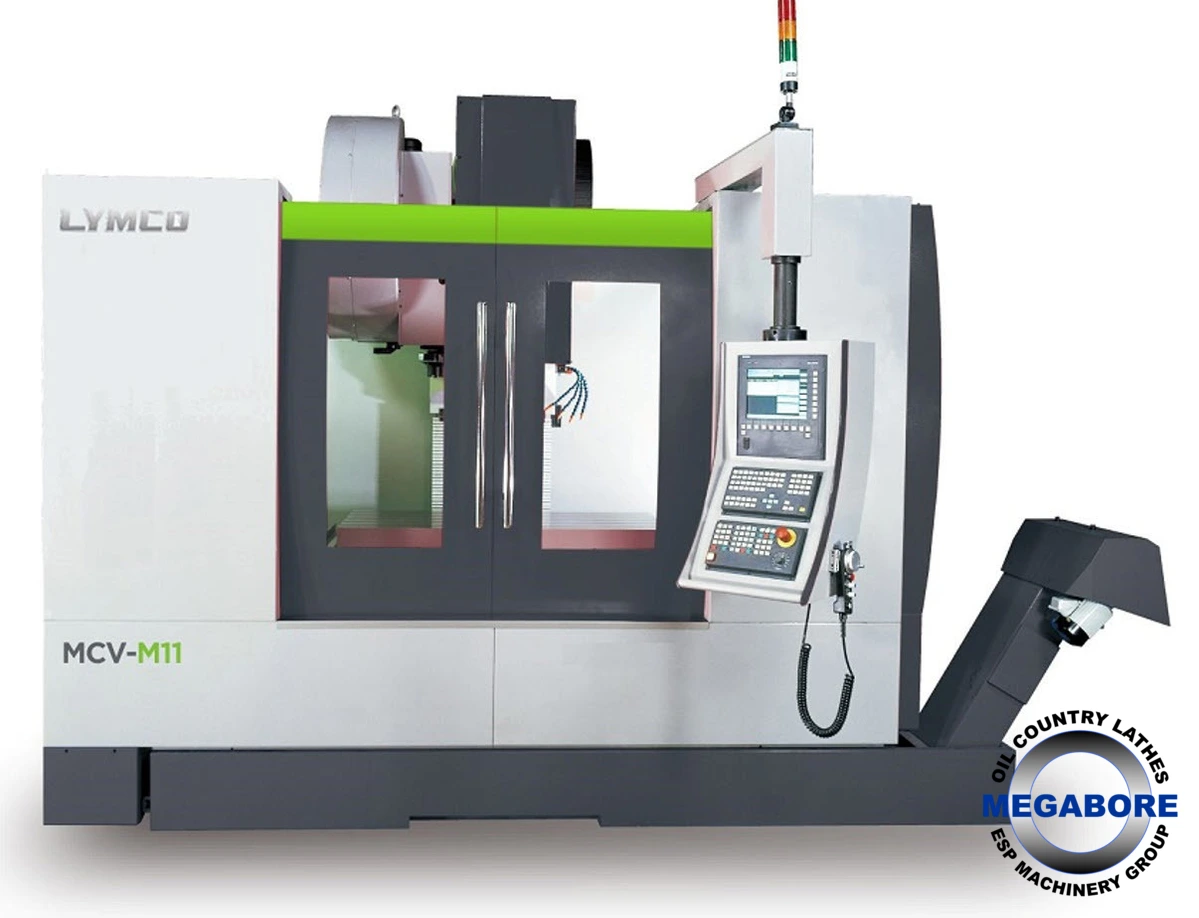

The Lymco M11 offers one of the largest work envelopes in its class.
MCV C-frame includes box way and linear way. The MCV box way is a popular choice for general part making involving heavy milling operation. It is designed to handle some of the typical jobs performed in general shops that require a bigger travel, high torque, and consistent performance. The MCV linear way has the characteristic of small foot print, rigid construction, and well-balanced cutting power.
If these specifications do not meet your requirements we can provide a machine to meet your specifications.
| X | 43.307" | 1,100 mm |
| Y | 25.591" | 650 mm |
| Z | 23.622" | 600 mm |
| Table Size | 1300 X 600 mm | 1300 X 600 mm |
| Control | CNC (Fanuc 0i-MF Standard type 1 (15” LCD)) | CNC (Fanuc 0i-MF Standard type 1 (15” LCD)) |
| Dimensions | 3,000 mm x 2,900 mm x 3000 high | 3,000 mm x 2,900 mm x 3000 high |
| Weight | 8500 kg | 8500 kg |
X axis travel: 1,100 mm
Y axis travel: 650 mm
Z axis travel: 600 mm
Spindle nose to table surface: 75 ~ 675 mm
Table size: 1,300x600 mm
T-slot: 18 x 5 x 125mm
Table loading capacity: 1,000kg
Spindle taper/max. speed: BT-50/6,000 rpm by gear head
Spindle motor: Fanuc α15/7000i, 15/18.5 kW
Max. spindle torque: 423Nm
X/Y/Z axis rapid traverse: 36,000/36,000/30,000 mm/min
X/Y/Z axis of max. cutting feedrate: 12,000 mm/min
Mini input increment: 0.001mm
Arm type ATC 24 tool
Power source: 25kVA
Spindle oil cooling system
Cutting coolant system
Chip air blow device
Spindle air blow system
ATC 24 tools
Pneumatic system
Automatic lubrication system
Heat exchanger for control cabinet
Fully enclosed splash guard
Ball screw cover, X/Y/Z axes telescope type
Coolant tank
Chip auger
M.P.G
Rigid tapping
One set of working lamp
Three color end of indication lamp
Auto power off
Tool kit
Leveling bolts and pads
Operator and maintenance manual
Parts list
