Machining Center Vertical - X Axis 550 mm to 1100 mm
Machining Centers Vertical

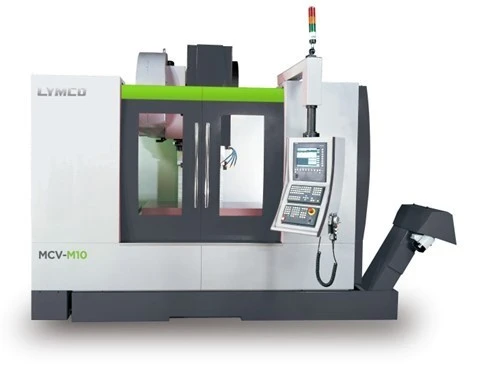

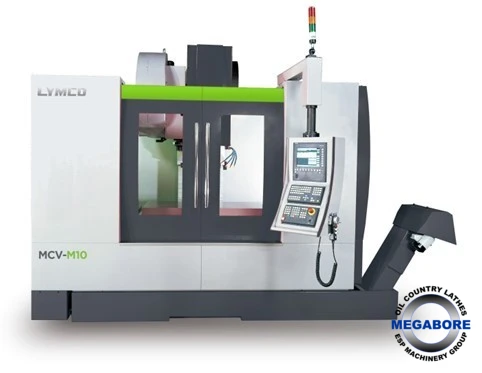

The MCV machining center is a cost effective quality machine with solid all-around performance.This machine is designed and built to last.
The MCV linear way has the characteristic of small foot print, rigid construction, and well-balanced cutting power.
| X | 40.158" | 1,020 mm |
| X Axis Alternitave: | 550 mm - 760 mm - 800 mm - 1100 mm | 550 mm - 760 mm - 800 mm - 1100 mm |
| Y | 19.685" | 500 mm |
| Y Axis Alternitave: | 400 mm - 450 mm - 500 mm - 650 mm | 400 mm - 450 mm - 500 mm - 650 mm |
| Z | 19.685" | 500 mm |
| Z Axis Alternitave: | 600 mm | 600 mm |
| Table Size | 1200 X 500 mm | 1200 X 500 mm |
| Table Size Alternitave: | 700 X 400 mm - 900 X 500 mm - 1300 X 600 mm | 700 X 400 mm - 900 X 500 mm - 1300 X 600 mm |
| Table Loading: | 800 kg - options - 300 - 1000 kg | 800 kg - options - 300 - 1000 kg |
| Control | CNC (Fanuc 0i-MF Standard type 1 (15” LCD)) | CNC (Fanuc 0i-MF Standard type 1 (15” LCD)) |
| Dimensions | 2700 mm x 2280 x 2850 high. | 2700 mm x 2280 x 2850 high. |
| Weight | 4,600 kgs | 4,600 kgs |
Specification
X axis travel: 1,020 mm
Y axis travel: 500 mm
Z axis travel: 500 mm
Spindle nose to table surface: 110 ~ 610 mm
Table size: 1,200x500 mm
T-slot: 18 x 5 x 100mm
Table loading capacity: 800kg
Spindle taper/max. speed: BT-40/10,000 rpm by belt driven
Spindle motor: Fanuc α8/10000i, 7.5/11kW
Max. spindle torque: 47.7Nm
X/Y/Z axis rapid traverse: 36,000/36,000/30,000 mm/min
X/Y/Z axis of max. cutting feedrate: 12,000 mm/min
Mini input increment: 0.001mm
Arm type ATC 24 tool
Power source: 15kVA
Standard Accessories
Spindle oil cooling system
Cutting coolant system
Chip air blow device
Spindle air blow system
ATC 24 tools
Pneumatic system
Automatic lubrication system
Heat exchanger for control cabinet
Fully enclosed splash guard
Ball screw cover, X/Y/Z axes telescope type
Coolant tank
Chip auger
M.P.G
Rigid tapping
One set of working lamp
Three color end of indication lamp
Auto power off
Tool kit
Leveling bolts and pads
Operator and maintenance manual
Parts list
