CNC table type horizontal boring & milling X = 2000 or 3000 mm

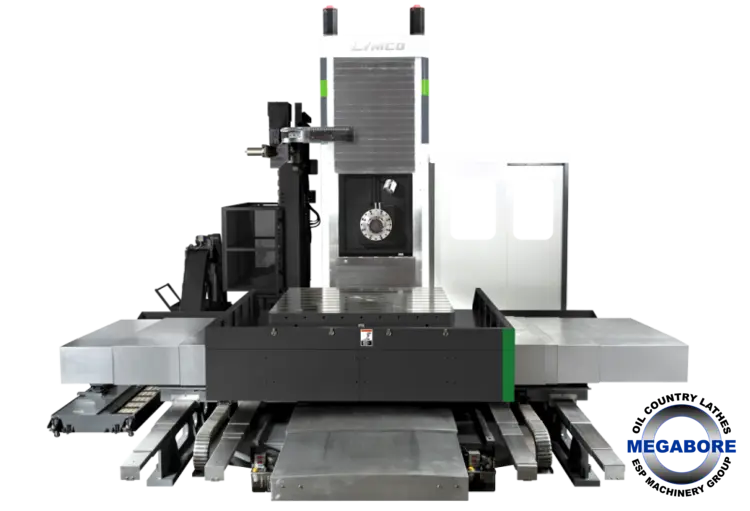

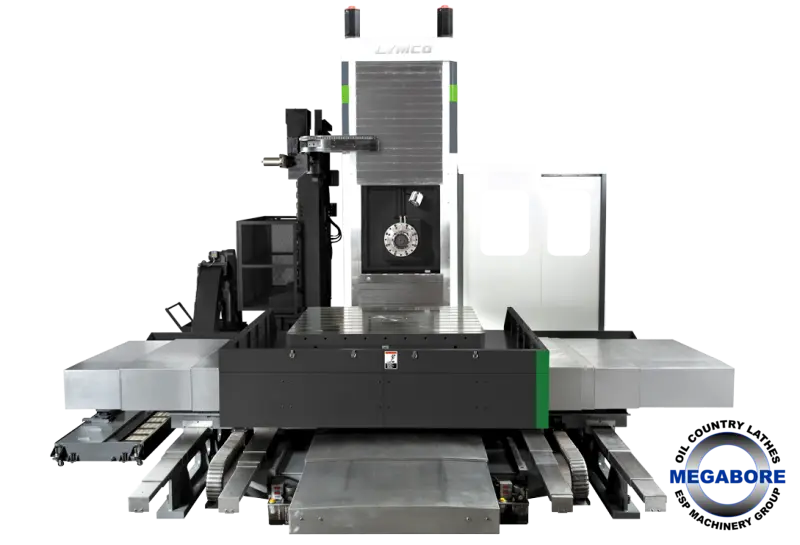

Boring and Milling CNCZENTRUM-110 is table type horizontal boring & milling machine with a fixed column design. The machine is vibration resistant and has a strongly braced box-type cast structure with great rigidity. ZENTRUM allows high precision to be maintained over a long period of time because it's box slideways are hardened and ground. The matching surfaces of the moving units are heat treated to HRC 50° hardness as well as coated with Turcite. It’s rigid structure has exceptional loading capacity for wide variety of job requirements.
Centrally mounted spindle.
ZENTRUM's spindle design based on technological cooperation with Japanese developers. This feature allows the spindle to sit in the middle of the column frame (box), thus forming a box-in-box structure. Additional stability is provided by dual Y-axis ball screws.
Accuracy by design
Massive 2+4 base design, TWO box ways paired by FOUR linear along the Z axis feed provide unparalleled support for heavy cutting on different applications. Box type hardness steel guideway with anti-friction Fluorine resin and forced-lubrication been applied for large-size machine and provided for the X, and Z axis guideways, positioning are performed with excellent accuracy and smooth stick/slip-free slide movements are assured.
Built for heavy duty
The stable performance for milling, drilling and boring operations on heavy workpieces of large dimensions.
Spindle Size | 4.3307" | 110 mm |
X-Horiz Tvl of Table | 78.74" | 2,000 mm |
Alternate X axis Zentuum 110R3 | 3000 mm | 3000 mm |
Y-Vert Tvl of Head | 62.992" | 1,600 mm |
Alternate Y axis Zentuum 110R3 | 2000 mm | 2000 mm |
Spindle Tvl. | 15.748" | 400 mm |
Quill Travel | 400 mm (Alt 600 mm) | 400 mm (Alt 600 mm) |
Table-W | 55.118" | 1,400 mm |
Table-L | 62.992" | 1,600 mm |
Alternate Table size Zentuum 110R3 | 1600 mm x 1800 mm | 1600 mm x 1800 mm |
Table Loading | 8500 kg (R3 10,000 hg) | 8500 kg (R3 10,000 hg) |
Control | CNC (Fanuc or client specified,) | CNC (Fanuc or client specified,) |
Weight | 29000 kg (R3 32000 kg | 29000 kg (R3 32000 kg |
