5 Axis milling. X = 1000 mm and 1400 mm VMC
Machining Centers Vertical

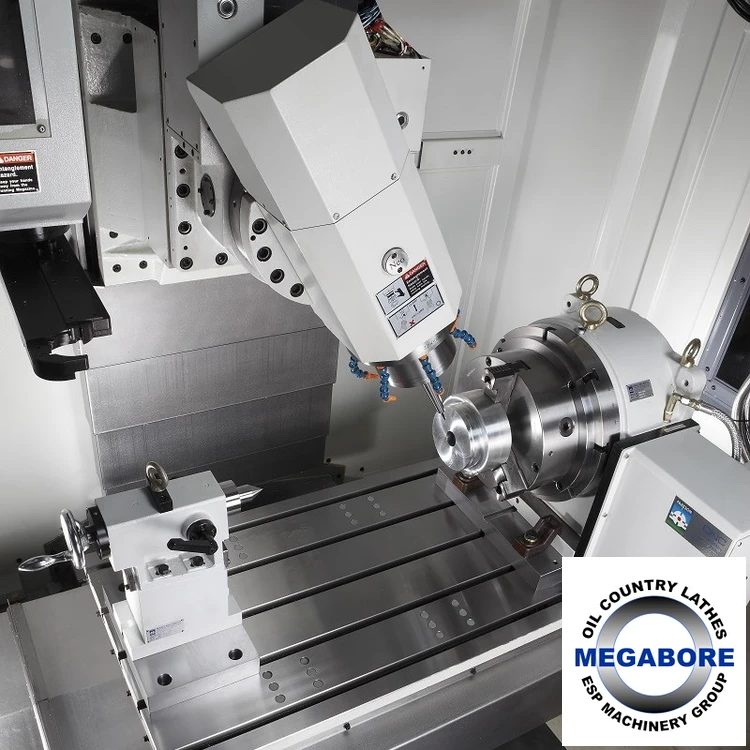

The MCV-5AX comes in two sizes the M11 and M14.
This machine provides a simple solution for small and medium-size shops that require 5-axis capacity. MCV-5AX provides a simple configuration with Swivel head(B axis) and Rotary table(C or A-axis). The machine can be easily set up as 3+1, 3+2, or 4+1 axis based on shop's actual needs. Like all LYMCO 5-axis machines, MCV-5AX went through the highest international (ISO, JIS, VDI) standard by inspection and actual workpiece cutting cycle to assure performance when commanded.
Set up parts easily
Eliminate multiple setups on different facing and angular drilling jobs.
Expand job capacity
Machinist can reach any angles for drilling and taping, and with fewer concerns about tool interference.
Easy to install
Put machine into place with a fork lift; start production immediately.
| X | 39.37" | 1,000 mm |
| X Axis Alternitave: | 1400 | 1400 |
| Y | 25.591" | 650 mm |
| Y Axis Alternitave: | 700 | 700 |
| Z | 32.48" | 825 mm |
| Table Size | 1300 X 600 mm | 1300 X 600 mm |
| Table Size Alternitave: | 1600 X 600 mm | 1600 X 600 mm |
| Table Loading: | 1000 kg and 1200 kg | 1000 kg and 1200 kg |
| Power | 24.1 hp | 18 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Control | CNC (FANUC / FAGOR / SIEMENS) | CNC (FANUC / FAGOR / SIEMENS) |
| Weight | 11000 - 12000 kg | 11000 - 12000 kg |
Number of axes
3/5-axis, 5-axis, 4-axis
Spindle orientation
vertical, horizontal
Structure
rotating table
Other characteristics
high-speed, compact, high-rigidity, high-performance, high-precision, high-speed
X travel
Max.: 1,100 mm (43 in)
Y travel
Max.: 600 mm (24 in)
Z travel
Max.: 830 mm (33 in)
Power
Max.: 18 kW (24.47 hp)
5 Axis machining
