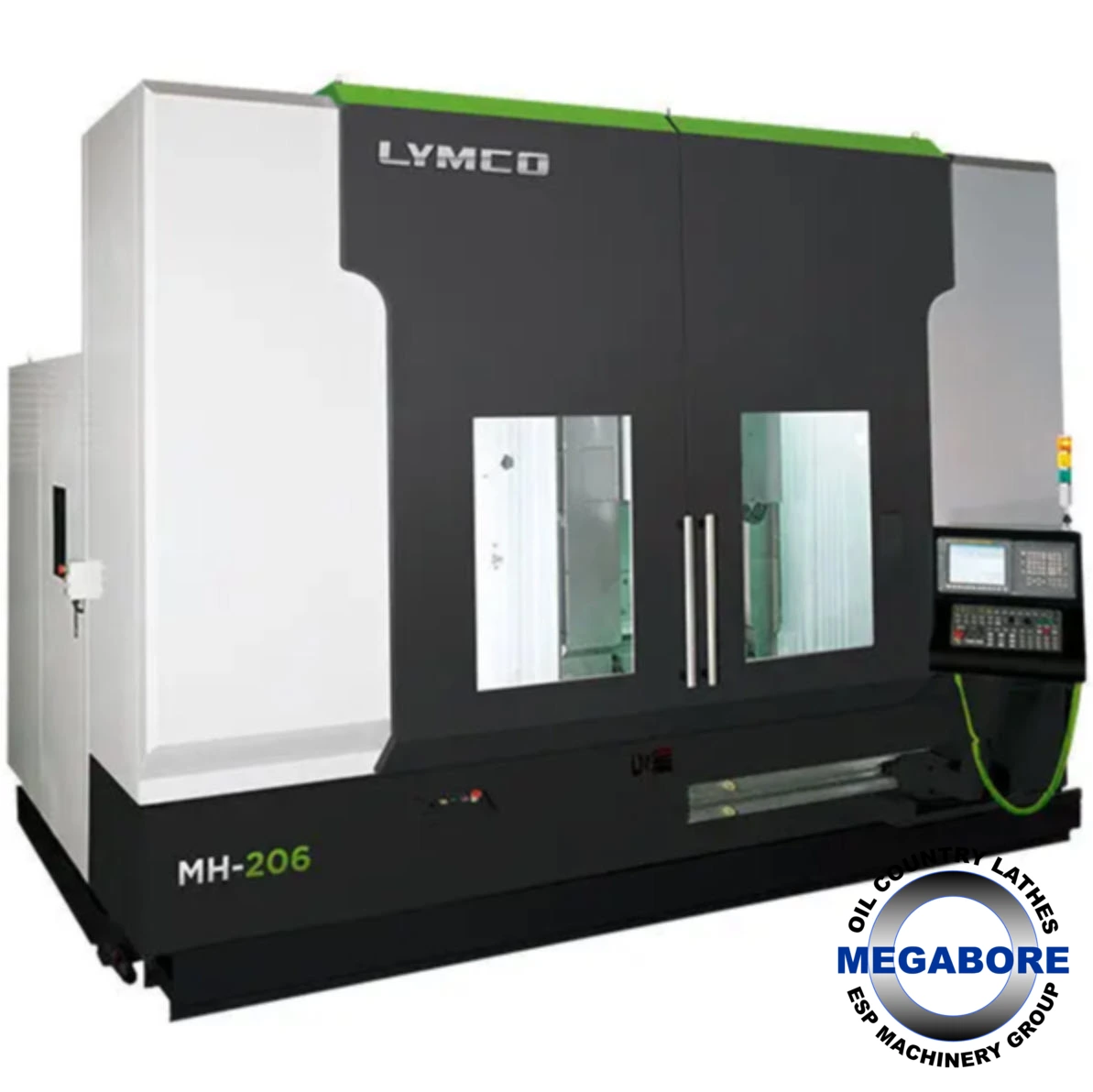

LYMCO MH type horizontal milling center with pallet changer is popular for horizontal part making. This model is also perfectly suitable for shops with moderate quantity production due to its quick workpiece turnover. MH line has two types of configuration and structure to choose from. One being the high-speed MH-Plus and the other for general machining, the regular MH type machine. They both provide high precision and superb rigidity. It is a machine built with high acceleration, accuracy, and applicability to increase the turnover rate of parts. As horizontal machining provides superior chip management, friendlier setup, and overall better tolerance of parts, so it is the go-to selection for many shops looking for the next step up. The MH HMC, over the years, had evolved into various models for different shop's cutting needs.
High speed tool change
Superb tool change time in 1 second tool to tool and 3 second chip to chip on all MH-PLUS horizontal machining centers (HMC)models.
2 seconds tool to tool and 10 seconds chip to chip for standard MH HMC.
High speed positioning
The rapid cutting and feeding of up to 60 meters per minute on all PLUS models.
32 meters per minute rapid travel speed for standard models.
The direct impact of position agility will result in a much shorter idle time, thus enhancing the machine's actual total cutting capacity.
Structure rigidity decided the actual cutting result and the optimal speed of processes. Thus, on all MH-PLUS HMC, a box-in-box design for column and saddle were employed for best structural strength.
The standard column moving structure on standard MH HMC was designed for slower travel speed but highly stress relief potential for heavy milling.
|X Axis Alternate||1500 mm||1500 mm|
|Y Axis Alternate||1000||1000|
|Z Axis Alternate||1000||1000|
|Table Size||500 x 500 mm||500 x 500 mm|
|Table Size Alternate||630 x 630 - 800 x 800 - 1000 x 1000 mm||630 x 630 - 800 x 800 - 1000 x 1000 mm|
|Control||CNC (Fanuc or client specified,)||CNC (Fanuc or client specified,)|
|Weight||15,000 25,000||15,000 25,000|
