CNC VBM 1600 mm Swing

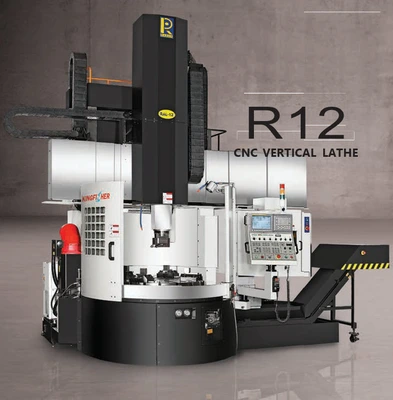

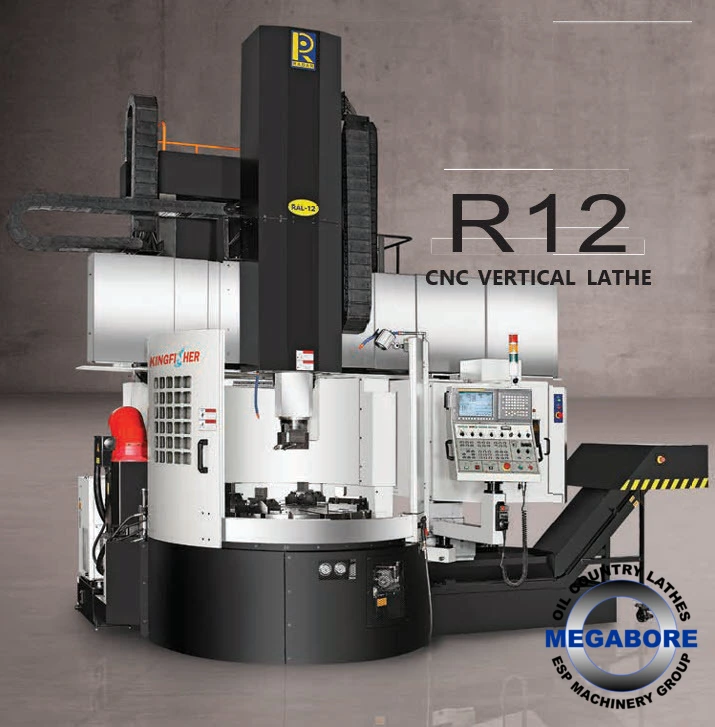

Boring Mills, Vertical (incld VTL)CNC VBM 1250mm Table, 1600 max Swing by Radar, model RAL-12, is now available at ESP Machinery Australia Pty Ltd, or our Middle East Facility.
With a table diameter of 1,250 mm, a swing of 1,600 mm, and a max turning height of 1,250 mm, it offers powerful performance with 30/37 kW of power.
Equipped with FANUC 0i-TF Controller and 12 tools of ATC for RAL series, this vertical boring mill is perfect for any shop or facility. Contact us today for more information.
Table Dia | 49.213" | 1,250 mm |
Swing | 62.992" | 1,600 mm |
Work Ht-U/R | 49.213" | 1,250 mm |
Power | 40.2 hp | 30 kW |
RPM | 150 RPM | 300 |
Control | CNC (FANUC 0i-TF) | CNC (FANUC 0i-TF) |
Weight | 20,000 | 20,000 |
STANDARD ACCESSORIES
(1.) Table Diameter : 1250mm (2.) Max. Swing : 1600mm
(3.) Max. Turning Diameter : 1400mm (4.) Max. Turning Height : 1250mm (5.) Max. Mass of Workpiece : 6000kg
(6.) Horizonal Travel (X-Axis) : -100~+850mm (7.) Vertical Travel (Z-Axis) : 900mm
(8.) Crossrail Stroke : 800mm (with 5 step)
(9.) Rapid Traverse (X-Axis/Z-Axis) : 10 m/min , 8 m/min
(10.) Fanuc System 0i-TF CNC Controller with 10.4" color TFT LCD (11.) Table Speed : 1~300 rpm (with 2 step)
(12.) Spindle Motor : AC 30/37 kw (13.) ATC Tools x 12 sets
(14.) Chip Conveyor & Coolant Tank (15.) Oil/Water Separator
(16.) High Pressure Pump (3 Bar) (17.) Table Lubricant Oil Cooling Unit (18.) Machine Cover (Semi-Opened) (19.) Auto Lubrication System
(20.) Heat Exchanger For Electrical Cabinet (21.) Table Manual 4-Jaw Chuck
(22.) Hydraulic Unit
(23.) Work Light
(24.) Signal Tower Light
(25.) Tool Holder BT-50 (O.D.+I.D.) x 1 pcs (26.) Anchor Bolt & Tools and Tool Box (27.) Operation Manual & Spare Part List
(28.) Metal frame and case in machine shipment packing
