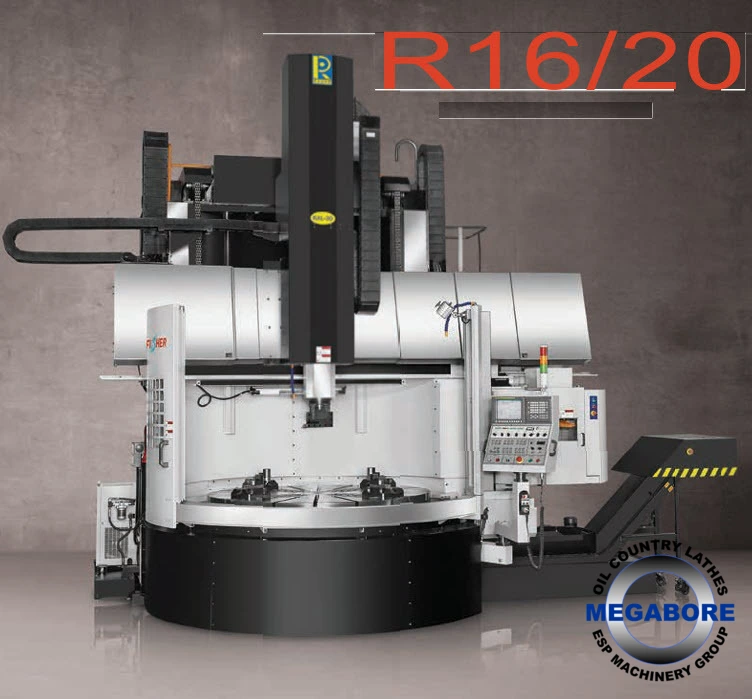

"The Radar CNC VBM with 1600mm table and 2000mm max swing is now available at ESP Machinery Australia Pty Ltd, or our facility in the Middle East
With a table diameter of 1600mm and maximum workpiece weight of 10,000kg, this vertical boring mill is perfect for heavy-duty machining. The RAL-16 boasts of an optional live spindle speed of 50-2250rpm and X/Y/Z-axis rapid traverse, all packed in a machine weighing 28,000kg.
Radar Industrial Co., Ltd., established in 2007, has more than 50 years of experience in manufacturing professional machine tools and technologies. We manufacture with high accuracy, stability, and rigidity using the CNC Vertical Lathe for heavy cutting processes.
Our management team's energy and enthusiasm are strongly respected by our customers. To meet their satisfaction, we ensure precision quality at each step of our production line.
The products' ease of operation increases efficiency for our customers. The use of new and advanced design concepts has excellent precision machines tools, and can deliver a performance that is unique compared to our competitors. With a steady, practical and honest commitment to our business, we provide customers a complete "before and after" customer service. Our CNC vertical lathe gives our customers the fastest delivery at a very satisfactory price.
~ Radar is the company you can trust ~
Covers 3 sizes.
DISCRIPTION UNIT RAL-12 RAL-12M RAL-16 RAL-16M RAL-20 RAL-20M
Capacity
Table Diameter mm 1,250 1,600 2,000
Max. Swing mm 1,600 2,000 2,500
Max. Turning Diameter mm 1,900 2,400
Distance from RAM to table mm 700 ~ 1,500 1,065 ~ 1,865 1,075 ~ 1,875
Max. Turning Height mm 1,250 1,600
Max. Workpiece weight kg 6,000 10,000 13,000
RAM Size mm 230x240 240x270
Min. ID for RAM Pass mm 285 310
Spindle
Table Speed (2 steps) rpm 1 ~ 120 , 1 ~ 300 1 ~ 70 , 1 ~ 250 1 ~ 50 , 1 ~ 200
Max. Torque of table N.m 10,655
Live Spindle Speed rpm - 24 ~ 2,400 - 50 ~ 2,250 - 50 ~ 2,250
Travel / Rapid Traverse
X-axis Travel mm -200 ~ +1,125 -250 ~ +1,380
Z-axis Travel mm 900 1,000
Crossrail Travel mm 800
Crossrail Step mm x step 200 x 5
X-axis Rapid Traverse m/min
Z-axis Rapid Traverse m/min

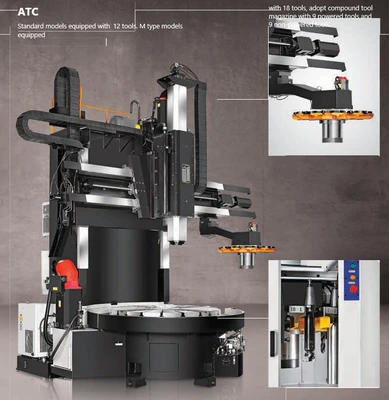

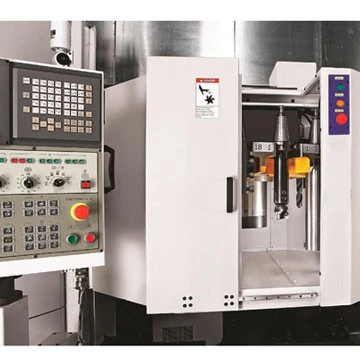

ATC
ATC Capacity - 12 18 12 18 12 18
Max. Tool Length mm 400
Max. Weight of Tool Holder kg 50
Max. Weight of magazine kg 450 550 450 550 450 550
Type of Tool Shank - BT50
Tool shank size mm 25 or 32
Motor
Spindle Motor kW AC 30/37 AC 37/45
Total Power Capacity kVA 50 60
X/Z-axis Servo Motor kW 6
Live Spindle Motor kW - - AC 11 / 15 - AC 11 / 15
CF-axis Servo Motor kW - - -
Machine Dimension
Floor Space (LxW) mm 5,900 x 3,800 6,500 x 4,600 7,800 x 5,100
Machine Height (H) mm 5,020 5,360 5,690 5,880 5,740 5,930
Machine Weight kg 20,000 20,500 28,000 28,500 42,000 42,500
Standard Accessories
• FANUC 0i-TF Controller
• Independent 4 Jaw Manual Chuck
• 12 Tools of ATC for RAL series
• 18 Tools of ATC for RAL(M) series
• Machine Cover (Semi-Opened)
• Oil / Water Separator
• Auto Lubrication System
• Tool Holder BT-50 (O.D. + I.D.) x 1 pcs
• Chip Conveyor
• Heat Exchanger For Electrical Cabinet
• Work Light and Signal Tower Light
• High Pressure Pump (3 Bar)
• Tools and Tool Box
• Hydraulic Unit
• Table Lubricant Oil Cooling Unit
• Anchor Bolt and Pad
• Operation Manual
Optional Accessories
• Air Conditioner For Electrical Cabinet
• Transformer for Power Source
• Additional Tool Holders
• Coolant Through Spindle
• X / Z-axis Linear Scale
• Tool Probe
• Parts Probe
• 3 Jaw Power Chuck
• High Pressure Pump (6 Bar)
• High Pressure Pump (10 Bar) 11
• CF-axis
• CAT Tool Magazine
