HBM 200 mm Spindle X 1600mm Y 1200mm Z 1000mm

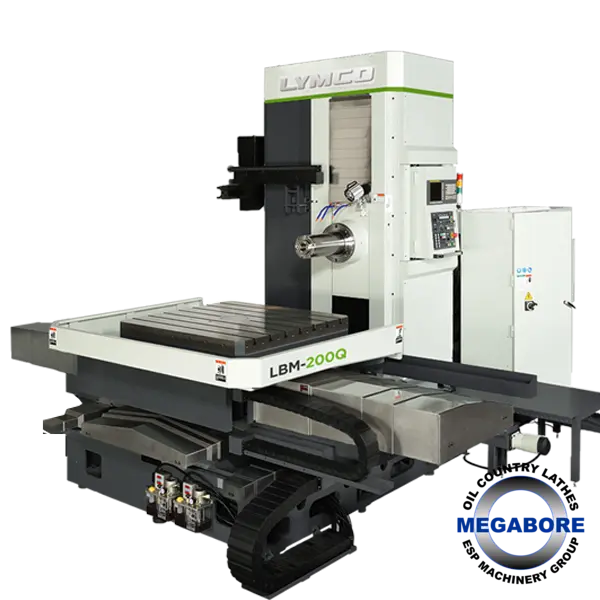

Boring and Milling CNCThe Lymco LBM-200Q Boring and Milling CNC with 200 mm spindle, 1600 X 1200 Y 1000 Z axis, available for sale by ESP Machinery Australia Pty Ltd. Trust the experts and get a high-quality machine for your manufacturing needs. Get a quote now for efficient and reliable results.
The LBM-200Q horizontal boring and milling machine is designed to handle heavy-duty machining tasks.
This machine could be configured with Fanuc, Heidenhain, Siemens, or Mitsubishi controls for the most friendly commencement and shop-wide integration.
The quill and spindle transmission design, heavily ribbed casting structure, and detail-oriented building procedures were all fitted to provide confidence and consistent result in heavy cutting.
The machine is built with all axis box type guideways and spanning across the table traverse to allow the full support of table stroke. The heat-treated and precision ground box type guideways provide the structural strength that was much needed in heavy industries such as fracking components, large valve components, and wind turbine housings.
The 200mm quill diameter is specifically designed and manufactured for stable heavy milling results when the quill was fully extended.
Massive, over 1000Nm torque is produced at the spindle to handle a large variety of materials.
The overall machine structure was designed to withstand the stress of heavy parts in the energy industry
Spindle Size | 7.874" | 200 mm |
X-Horiz Tvl of Table | 62.992" | 1,600 mm |
Y-Vert Tvl of Head | 47.244" | 1,200 mm |
Quill Travel | 400.0 | 400.0 |
RPM | 2,000 RPM | 2000-3000 |
Table-W | 49.213" | 1,250 mm |
Table-L | 49.213" | 1,250 mm |
Table Loading | 4500 kg | 4500 kg |
Control | CNC (Fanuc - Fagor - Siemens) | CNC (Fanuc - Fagor - Siemens) |
Weight | 20000 | 20000 |
X axis (mm) 1600
Y axis (mm) 1200
Z axis (mm) table stroke 1000
W axis (mm) quill stroke 400
Table loading capacity (kg) 4500
Table size (mm) 1250 x 1250
Max. spindle speed (rpm) 2000 / Optional 3000, 4000
Max. spindle torque (Nm) 1360 / Optional 665
Rapid travel X, Y, Z, W (mm/min) 10,000/10,000/10,000/3000
Cutting feed (mm/min) 3000
Machine weight (kg) 20,000
