ESP Machinery are proud to offer the Megabore SB-Series, the largest of the S series of Oil Country Lathes.
Slant bed heavy duty construction.
With spindle bores up to 30 and a swings of up to 60 inches.
They are the flagship in many oil workshops around the world.

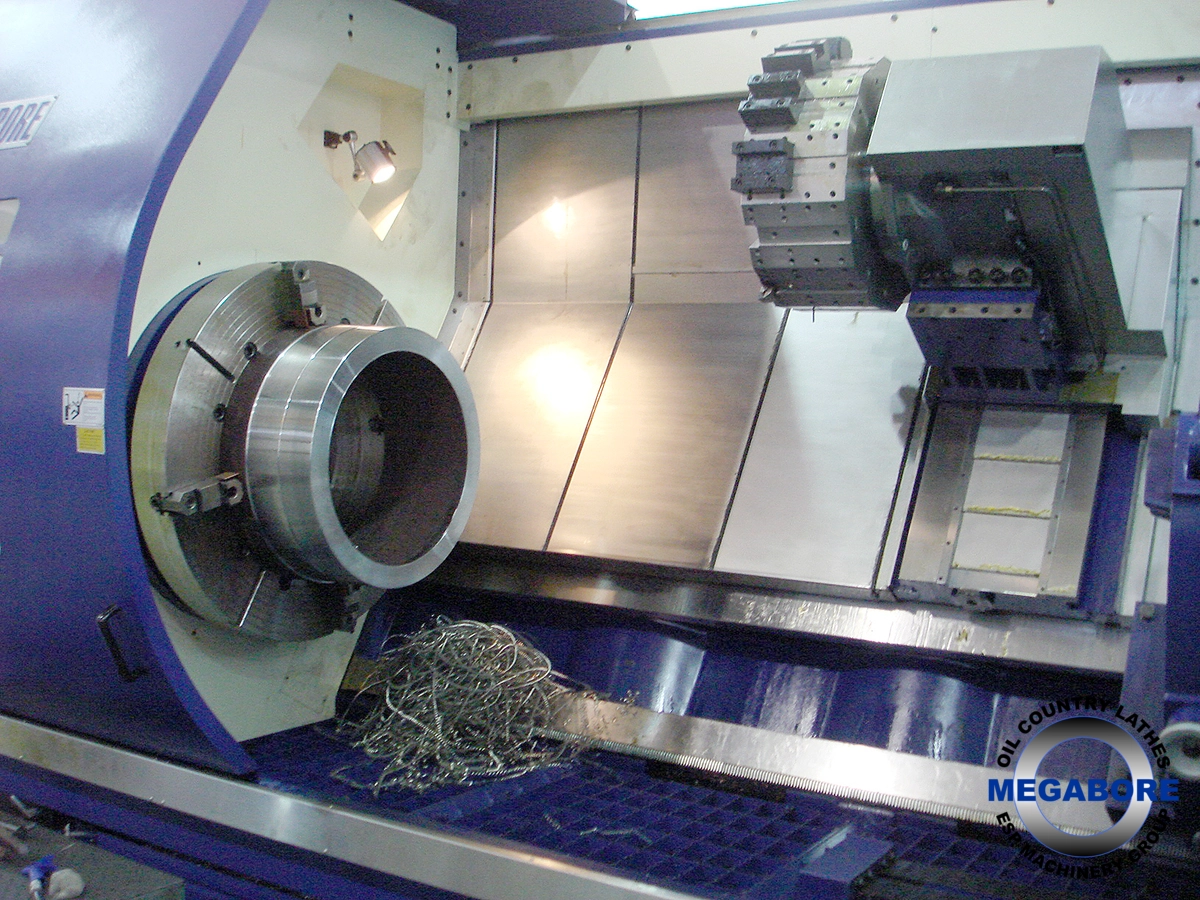

The photos are final stages of production then install at client factory.
If you are looking for something low cost and lightweight, this is not the machine for you.
Please provide your spindle bore and center distance for quote.
For SB-55 machine with 28" Spindle bore.
Bed width 1730 mm
Spindle speeds (A2-36) 0-130 rpm
Cross slide travel (x-axis) 630 mm
Cutting Feed rate (x-axis) 0.001-250 mm/rev
Cutting Feed rate (z-axis) 0.001-400 mm/rev
Rapid travel (6 m/min) & Z (10 m/min)
Ball Screw Diameter X (50mm) & Z (80mm)
No of Tools 12 station turret
Quill Type Built-in type
Tailstock quill Diameter 235 mm
Tailstock travel 200 mm
Quill Taper MT#6
CNC Controller Fanuc 31i or as specified
Centers 2200 mm to 5200mm
We can tailor the specifications to suit your requirements.
1 Fanuc 31i CNC Controller w/full key panel
2 Fanuc Spindle Motor
3 Fanuc X & Z axis motor
4 2 x all steel Independent 4 Jaw Chuck
5 Pneumatic Auto Gear Shift in Headstock
6 X and Z Axis auto lubrication system
7 Electronic Hand wheel Handheld Fanuc MPG
8 Two Door Full Length Front & Rear Splash Guard
9 Swarf Type Chip Conveyor w/ chip bin
10 Headstock Oil Refrigerator (18,000 BTU)
11 Electrical Cabinet Refrigerator (6000 BTU)
12 Flush Coolant Water System
13 Heavy Duty Hydraulic Tailstock
14 Motorized Tailstock body & Quill Movement
15 Assorted Tool Holders
16 Baruffaldi 12 station Turret
17 Turcite B anti-friction on cross slide and saddle
18 Rear Chuck Adapter
19 Alarm Lamp (R/Y/G)
20 Cabinet Light and Focus Light
21 Multi tap transformer
22 Levelling bolts, foundation blocks & tool box
23 Fanuc Programming and Instruction Manual
24 Machine Operation & Maintenance Manu
Optional Accessories
1. Electrical Cabinet Refrigerator 6,000 BTU
2. Headstock Oil Thermal Control Unit 18,000 BTU
3. Swarf type rear chip conveyor with chip bin
4. 2 x four Jaw independent chucks
5. 12 Station Hydraulic Turret
