Gurutzpe 700mm x 4000mm
$22,500.00 AUD

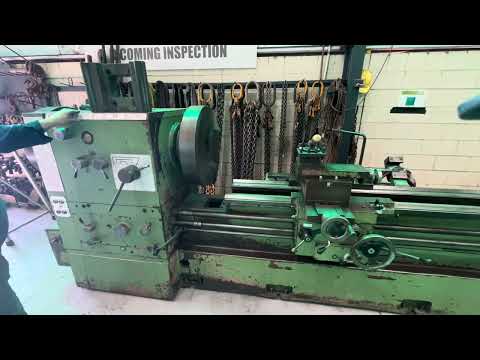

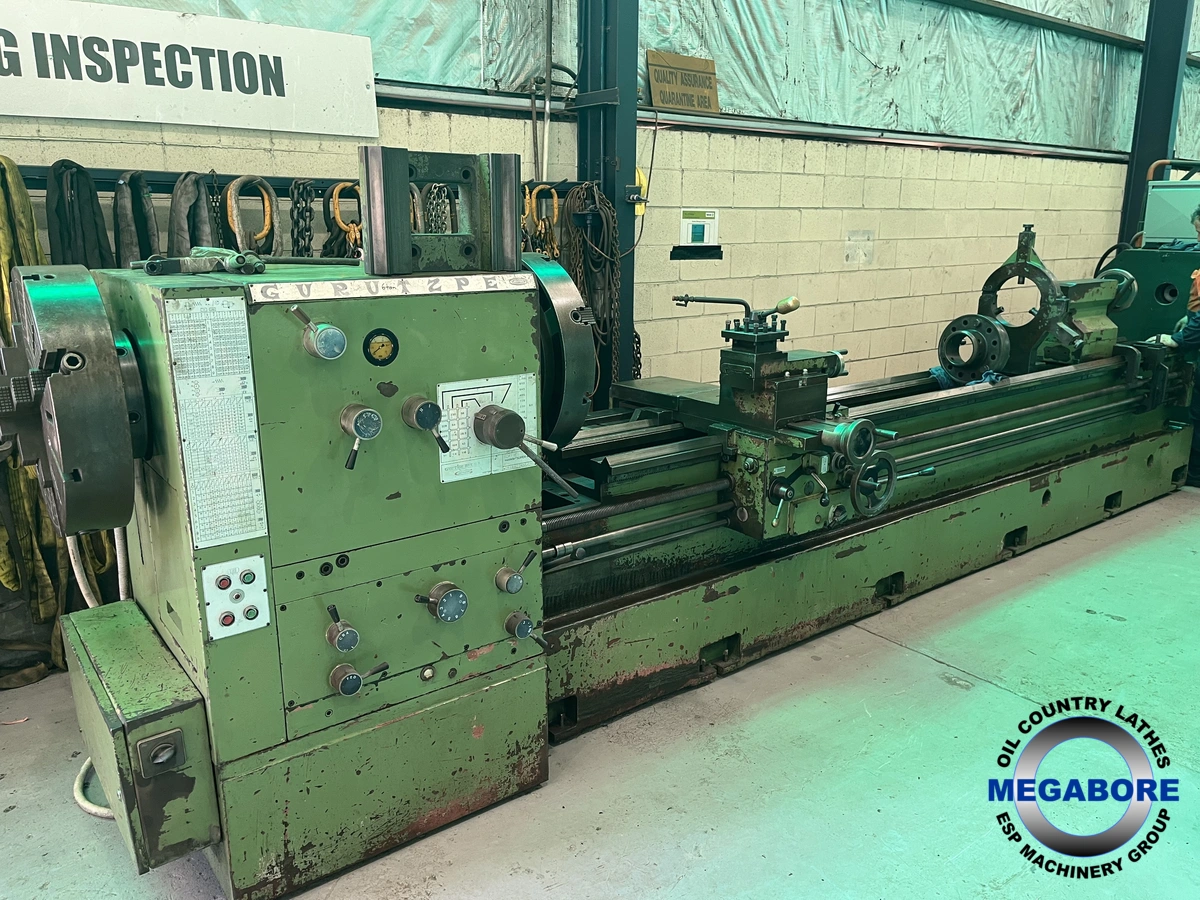

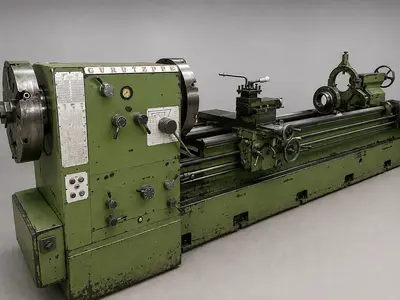

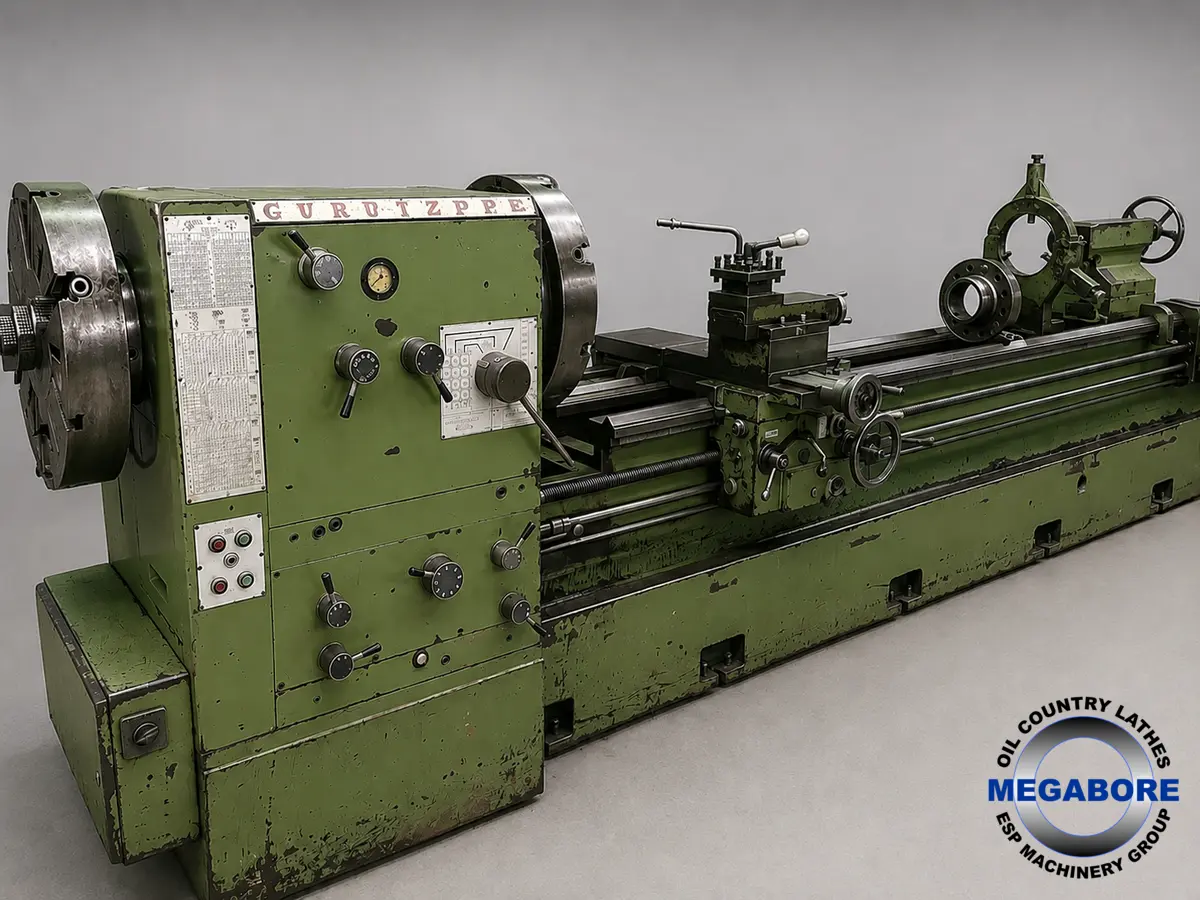

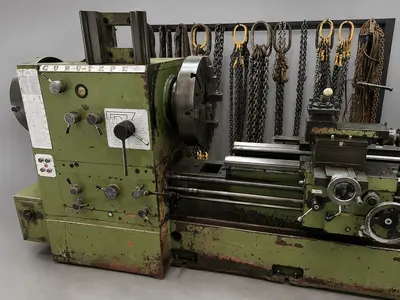

The Gurutzpe SUPER-B 700 is a robust European-built heavy duty centre lathe designed for machining large shafts, rollers, hydraulic cylinders and heavy engineering components.
This machine offers a 700mm swing over the bed, an impressive 940mm swing in the gap, and 4000mm between centres, making it suitable for a wide range of large turning applications.
The lathe is fitted with a 140mm spindle bore, 600mm diameter front and rear chucks, rapid traverse, taper turning attachment and steady rest, providing excellent versatility for both production and repair work.
Manufactured by the respected Spanish machine tool builder Gurutzpe, the SUPER-B series has earned a reputation for rigidity, reliability and accuracy in demanding industrial environments.
Ideal for heavy engineering, mining, oil & gas, defence, power generation and general machining workshops.
Certainly could do with a new paint job but it is being sols at about 20% of a new machine price.
Features
Heavy duty European construction
Large 140mm spindle bore
Gap bed for increased swing capacity
Rapid traverse
Taper turning attachment
600mm front chuck
600mm rear chuck
Steady rest
Designed for large diameter and long shaft work
Specification
Manufacturer Gurutzpe
Model SUPER-B 700
Machine No. LC9861
Swing Over Bed 700 mm
Swing Over Gap 940 mm
Between Centres 4000 mm
Spindle Bore 140 mm
Spindle Speeds 42 – 900 rpm
Front Chuck 600 mm
Rear Chuck 600 mm
Rapid Traverse Yes
Taper Turning Attachment Yes
Steady Rest Yes
Prices are PLUS GST for Australian Buyers
The Gurutzpe SUPER-B 700 is a robust European-built heavy duty centre lathe designed for machining large shafts, rollers, hydraulic cylinders and heavy engineering components.
This machine offers a 700mm swing over the bed, an impressive 940mm swing in the gap, and 4000mm between centres, making it suitable for a wide range of large turning applications.
The lathe is fitted with a 140mm spindle bore, 600mm diameter front and rear chucks, rapid traverse, taper turning attachment and steady rest, providing excellent versatility for both production and repair work.
Manufactured by the respected Spanish machine tool builder Gurutzpe, the SUPER-B series has earned a reputation for rigidity, reliability and accuracy in demanding industrial environments.
Ideal for heavy engineering, mining, oil & gas, defence, power generation and general machining workshops.
Certainly could do with a new paint job but it is being sols at about 20% of a new machine price.
Features
Heavy duty European construction
Large 140mm spindle bore
Gap bed for increased swing capacity
Rapid traverse
Taper turning attachment
600mm front chuck
600mm rear chuck
Steady rest
Designed for large diameter and long shaft work
Metric
| Swing | 27.559" |
| Centers | 236.22" |
| Spindle Bore | 5.5118" |
| Spindle Bore Options | 140 |
| RPM | 450 RPM |
| Dimensions | L 8700mm x W 1500mm |
| Weight | 6 Ton |
Specification
Manufacturer Gurutzpe
Model SUPER-B 700
Machine No. LC9861
Swing Over Bed 700 mm
Swing Over Gap 940 mm
Between Centres 4000 mm
Spindle Bore 140 mm
Spindle Speeds 42 – 900 rpm
Front Chuck 600 mm
Rear Chuck 600 mm
Rapid Traverse Yes
Taper Turning Attachment Yes
Steady Rest Yes
Prices are PLUS GST for Australian Buyers
