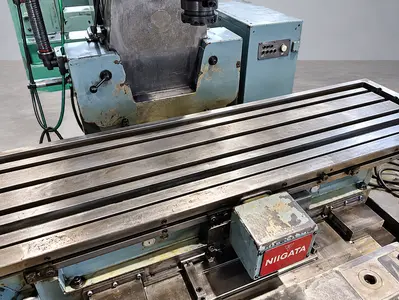

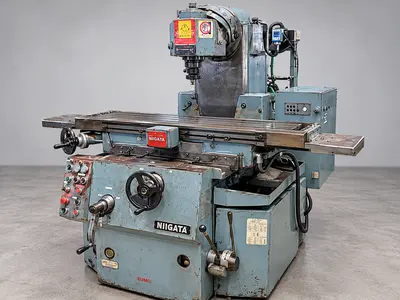

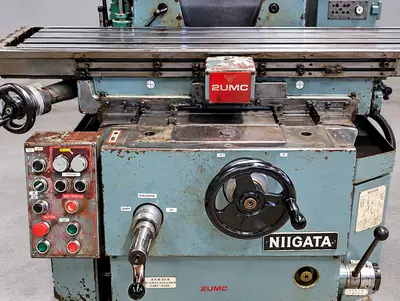

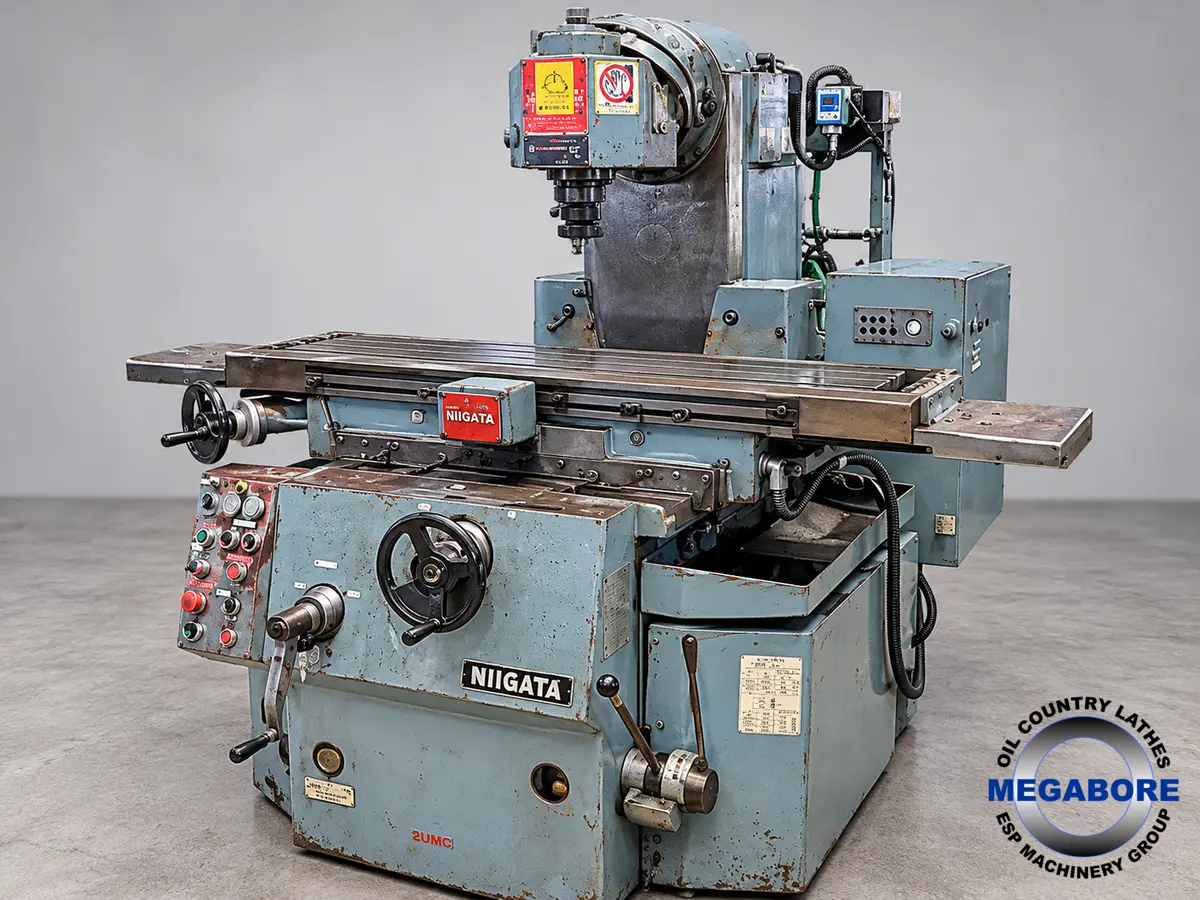

NIIGATA 2UMC MILLING MACHINE 1300mm x 310mm
$21,000.00 AUD
Japanese-manufactured Niigata 2UMC heavy-duty universal milling machine, renowned for its quality engineering, robust construction and precision.
A substantial, versatile milling machine suitable for general engineering, toolrooms, maintenance workshops and heavy-duty milling applications.
Features include.
Heavy-duty universal milling machine
Vertical milling head
Large T-slotted worktable
Power-operated table feeds
Centralised operator controls
Substantial cast-iron construction
Japanese manufacture and engineering quality
A well-built Japanese machine offering the strength, rigidity and versatility associated with Niigata machine tools.
Table size 1,370 × 310 mm
Spindle taper NT50
Spindle speeds 40–1,750 rpm
Number of spindle speeds 12, on one advertised example
Longitudinal travel — X 870 mm
Cross travel — Y 370 mm
Vertical travel — Z 400 mm
Longitudinal and cross feeds 20–800 mm/min
Vertical feed 9–355 mm/min
Power requirement 5.5 kW
Approximate weight 2,400 kg
Approximate dimensions 1,900 × 1,700 × 1,600 mm
Prices are PLUS GST for Australian Buyers
Japanese-manufactured Niigata 2UMC heavy-duty universal milling machine, renowned for its quality engineering, robust construction and precision.
A substantial, versatile milling machine suitable for general engineering, toolrooms, maintenance workshops and heavy-duty milling applications.
Features include.
Heavy-duty universal milling machine
Vertical milling head
Large T-slotted worktable
Power-operated table feeds
Centralised operator controls
Substantial cast-iron construction
Japanese manufacture and engineering quality
A well-built Japanese machine offering the strength, rigidity and versatility associated with Niigata machine tools.
Metric
| Table-W | 309.88 mm |
| Table-L | 1,370.1 mm |
| Travel-Long | 869.95 mm |
| Travel-Cross | 370.08 mm |
| Power | 5.5 kW |
| RPM | 1,740 RPM |
| Taper | NT50 |
| Dimensions | 1900 × 1700 × 1600 |
| Weight | 2400 |
Table size 1,370 × 310 mm
Spindle taper NT50
Spindle speeds 40–1,750 rpm
Number of spindle speeds 12, on one advertised example
Longitudinal travel — X 870 mm
Cross travel — Y 370 mm
Vertical travel — Z 400 mm
Longitudinal and cross feeds 20–800 mm/min
Vertical feed 9–355 mm/min
Power requirement 5.5 kW
Approximate weight 2,400 kg
Approximate dimensions 1,900 × 1,700 × 1,600 mm
Prices are PLUS GST for Australian Buyers
