The Mazak Powermaster Chucker is a heavy-duty CNC lathe known for oilfield and large diameter work, featuring capacities like up to 39.37" (1000mm) max machining diameter, 60HP spindle, 1200 RPM max speed, and large spindle bores (e.g., 7" or 12.5"), with X/Z travels varying by configuration (around 25" X, 40-46" Z) and an 8-station turret for significant material handling. Key specs include a massive spindle bore for hollow work, high torque, and a robust build for tough materials.

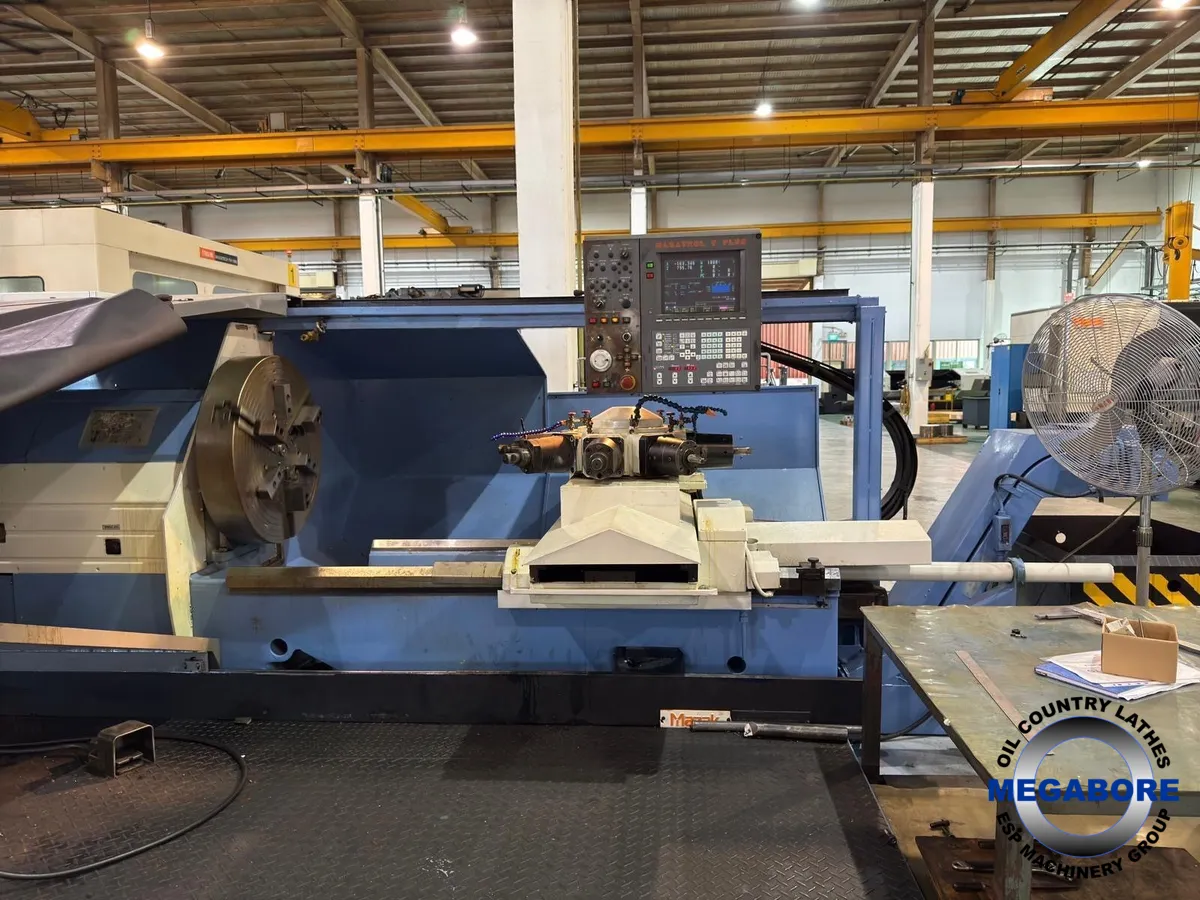

The Mazak PowerMaster N Chucker is a CNC turning center engineered for heavy-duty machining of large-diameter workpieces. Its flat-bed design ensures easy access and efficient chip flow, making it suitable for industries requiring precision and robustness.
In stock.
Runs well, excellent condition.
General Capacity
Maximum Swing: 870 mm (34.25 in)
Swing Over Bed: 863.6 mm (34 in)
Maximum Turning Diameter: 838.2 mm (33 in)
Maximum Machining Diameter: 1000 mm (39.37 in)
Maximum Machining Length: 1600 mm (62.99 in)
Main Spindle
Maximum Spindle Speed: 1200 rpm
Spindle Bore Diameter: 177.8 mm (7 in)
Spindle Motor Output (30 min rating): 45 kW (60 HP)
Turret
Tool Stations (Upper Turret): 8
Feed Axes Travel
X-Axis Travel: 635 mm (25 in)
Z-Axis Travel: 1170 mm (46.06 in)
MAZAK T PLUS CNC Controls
Chip Conveyor
Coolant System
