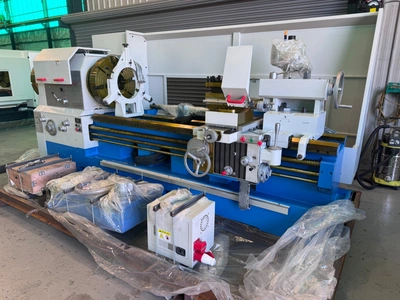

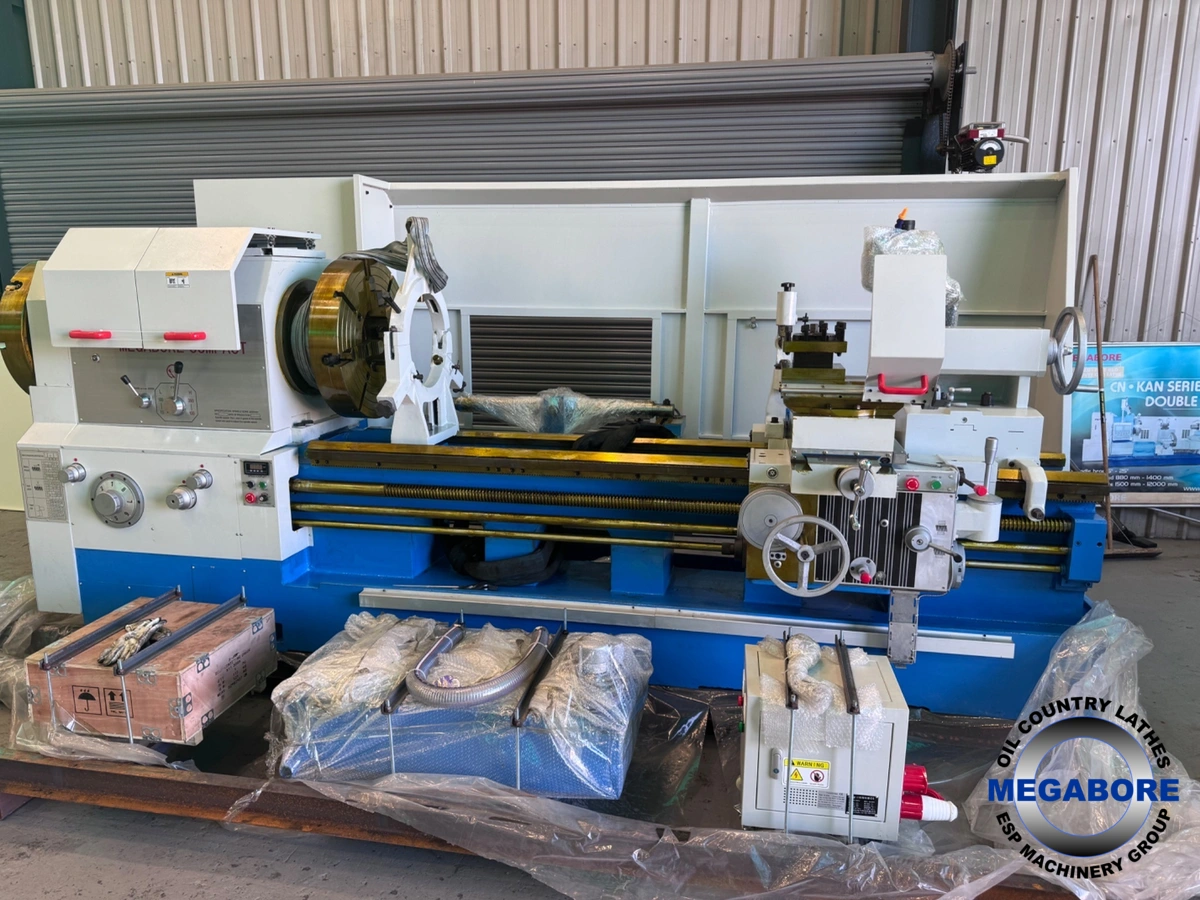

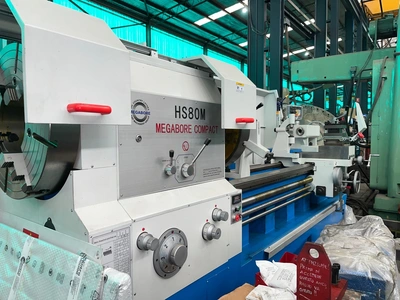

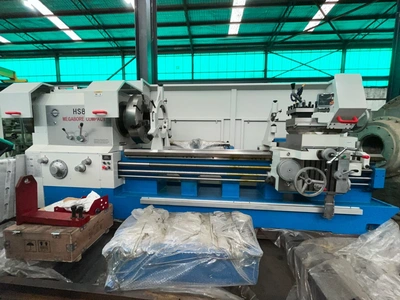

Macturn 10 inch hollow spindle x 800mm Swing x 2000 Between Centers
$79,000.00 AUD
1 available
New
With lower budget in mind, this machine offers similar capacity to our Megabore range at a much lower price.
Ideal for Conveyor rollers, hydraulic ram repairs, and mining equipment.
Swing over bed: 800mm
Swing over cross slide: 480mm
Between centers: 2000mm
Guideway width: 600
Spindle bore: 255 mm
Speeds up to 350rpm variable in 2 ranges.
Spindle center height: 400mm
Threading range: 70-250mm
Spindle Power 11 Kw
Z axis feed grade /range: 32/0.095-1.4
X axis feed grade /range: 32/0.042-0.7
Carriage raid traverse speed: 3740mm/min
Cross slide rapid traverse speed: 1870mm/min.
Metric thread grade/range: 22/1-15
Inch thread grade/range: 26/14-1

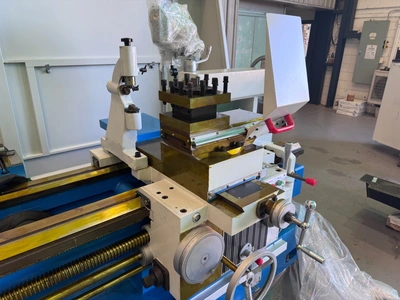

Traverse of cross slide: 430mm

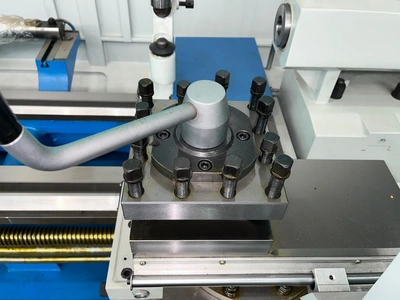

Max. Traverse of turret: 250mm
Diameter Travel Taper: 100mm
Tailstock quill taper :MT6

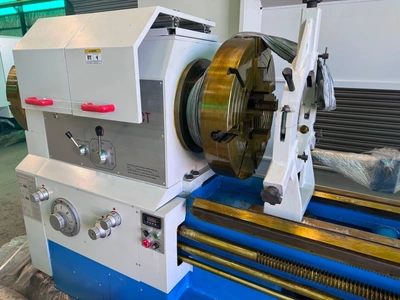

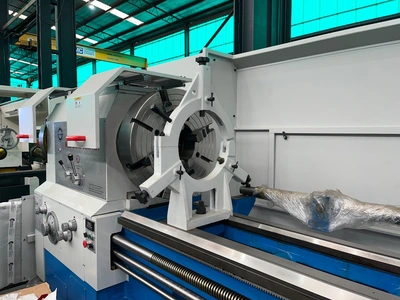

Chuck: 630mm diameter x 2
Overall dimension: 3750mm x 1650mm x 1500mm. Weight: 6,700Kgs
