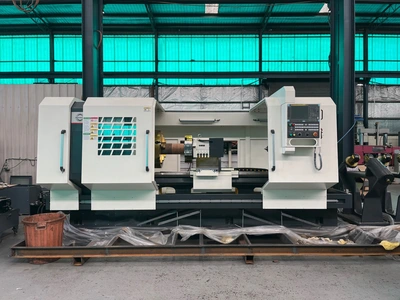

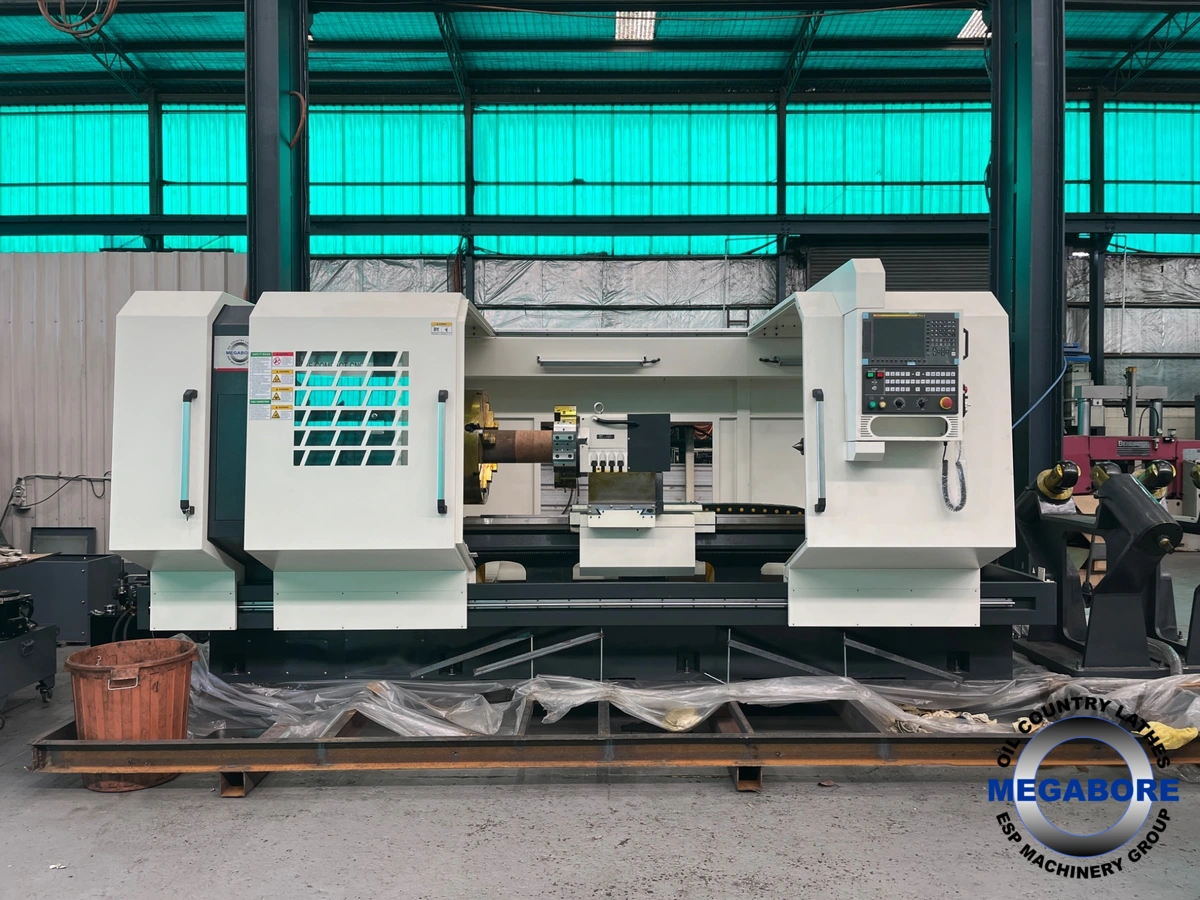

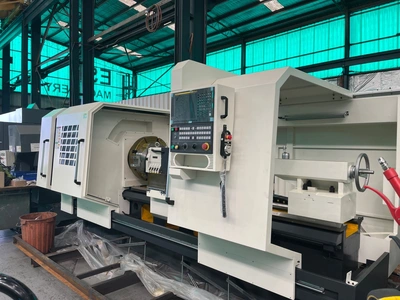

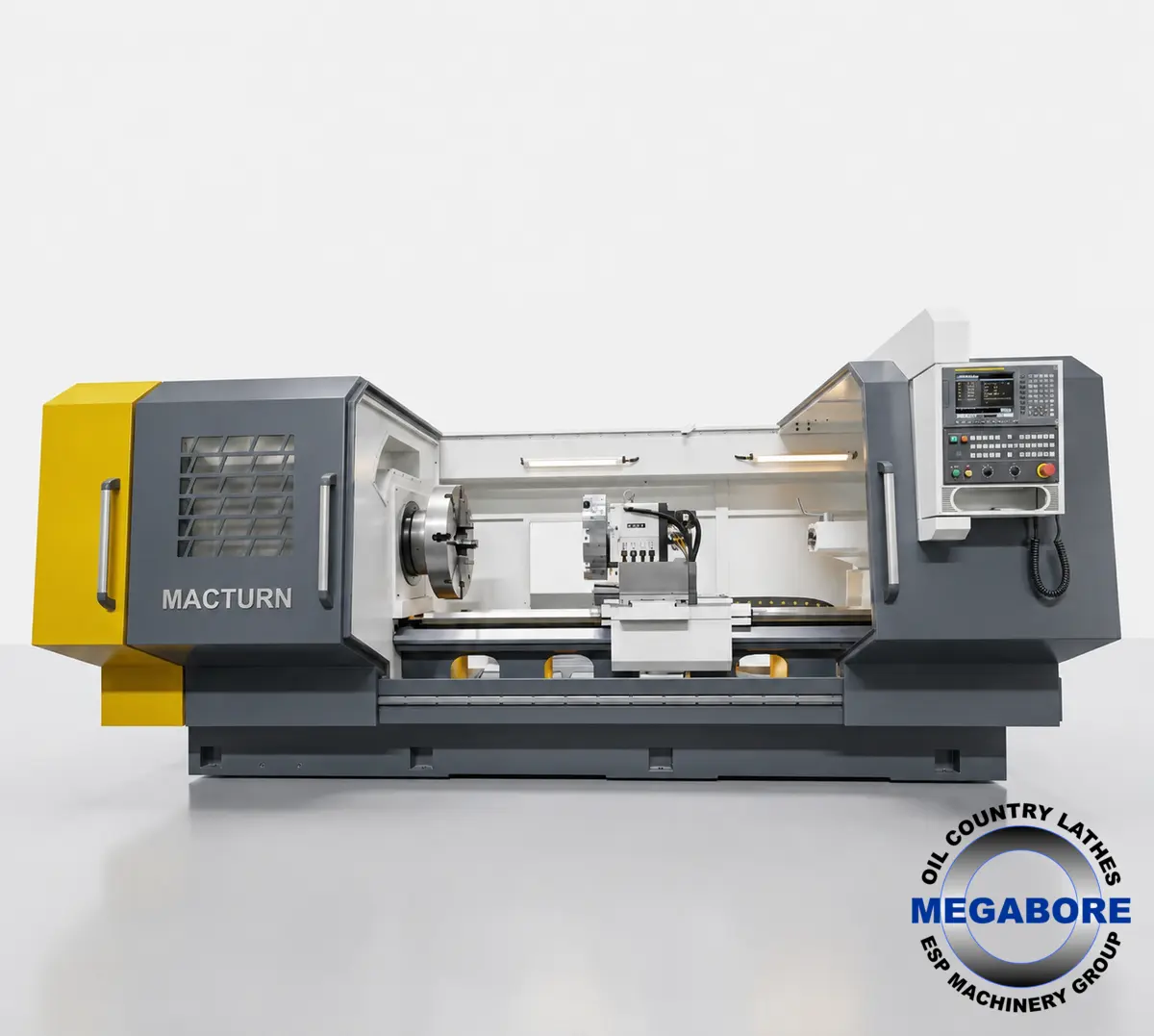

Macturn 10 inch Hollow Spindle CNC Lathe 800mm swing x 2000 Centers
$108,000.00 AUD
New
For clients who want a CNC lathe with a manual lathe budget.

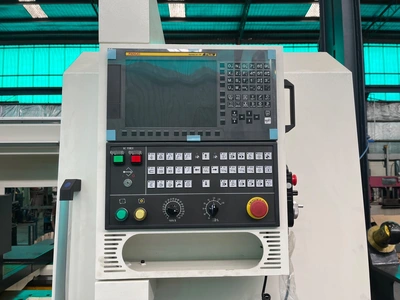

The machine is fitted with the highly respected Fanuc 0i-TF control.
The Macturn CNC offers a quality machine at an unbeatable price.
Currently available Ex-stock. Fitted with an 8 station Turret
The CNC unit on this machine is not suitable for Thread Repair function, please advise if this option is required. A higher spec CNC is required. see ESP-MACTURN MODEL ESP 1325 CNC
Please add GST to the price quoted.
Max. Swing over bed: 800mm
Max. Swing over cross slide: 480mm
Max. work piece of length: 2000mm
Guideway width: 550mm
Spindle bore: 255mm 10 inch
Max. load capacity: 3T
Spindle center height: 400mm
Threading range: Φ50-250mm
Mode of spindle speed: Two-speed frequency (L & H)
conversion, infinitely variable speed within the gear
Spindle motor power:15KW
Max. traverse of X/Z: X:420mm/Z:3000mm
X/Z rapid traverse: 4000/6000mm/min
Tailstock quill diameter: 100mm
Tailstock quill travel: 250mm
Tailstock quill taper: MT5
Tool shank size:32*32mm
Overall dimension: 5300×1900×1900mm
Machine Weight:6.7T
Prices are PLUS GST for Australian Buyers

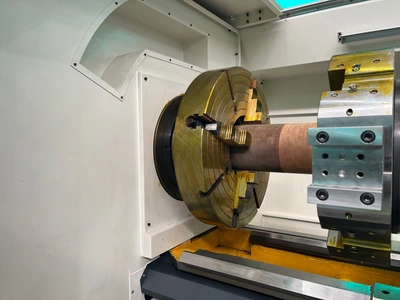

Front and Rear 630mm 4 Jaw Chucks with 250mm bore

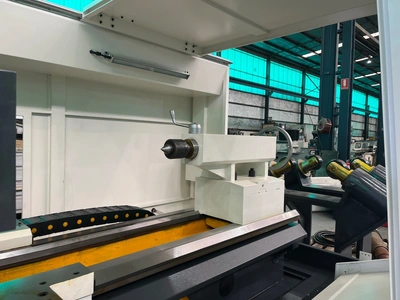

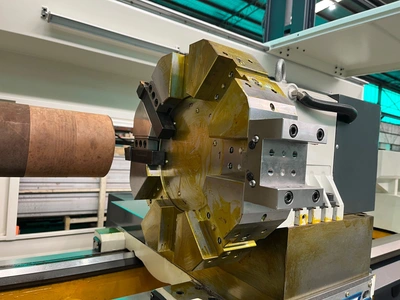

8 Station Turret
Manual Tailstock
For clients who want a CNC lathe with a manual lathe budget.
The machine is fitted with the highly respected Fanuc 0i-TF control.
The Macturn CNC offers a quality machine at an unbeatable price.
Currently available Ex-stock. Fitted with an 8 station Turret
The CNC unit on this machine is not suitable for Thread Repair function, please advise if this option is required. A higher spec CNC is required. see ESP-MACTURN MODEL ESP 1325 CNC
Please add GST to the price quoted.
Metric
| Swing | 800 mm |
| Centers | 2,000 mm |
| Spindle Bore | 254 mm |
| Power | 15 kW |
| RPM | 350 RPM |
| Control | CNC (FANUC 0i-TF) |
| Dimensions | 5300×1900×1900mm |
| Weight | 6.7 t |
Max. Swing over bed: 800mm
Max. Swing over cross slide: 480mm
Max. work piece of length: 2000mm
Guideway width: 550mm
Spindle bore: 255mm 10 inch
Max. load capacity: 3T
Spindle center height: 400mm
Threading range: Φ50-250mm
Mode of spindle speed: Two-speed frequency (L & H)
conversion, infinitely variable speed within the gear
Spindle motor power:15KW
Max. traverse of X/Z: X:420mm/Z:3000mm
X/Z rapid traverse: 4000/6000mm/min
Tailstock quill diameter: 100mm
Tailstock quill travel: 250mm
Tailstock quill taper: MT5
Tool shank size:32*32mm
Overall dimension: 5300×1900×1900mm
Machine Weight:6.7T
Prices are PLUS GST for Australian Buyers
Front and Rear 630mm 4 Jaw Chucks with 250mm bore
8 Station Turret
Manual Tailstock
