CNC Vertical Milling Machine (Mini)
$29,500.00 AUD
New

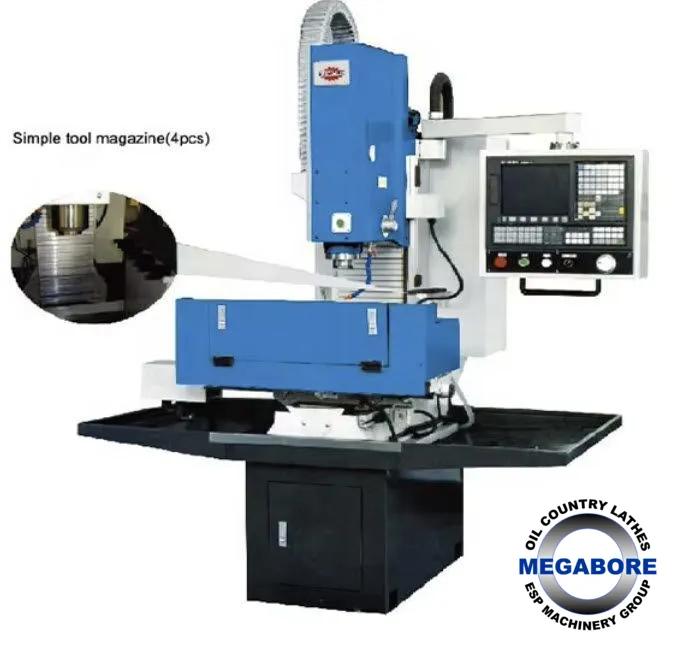

SP2211-T cnc mini vertical milling machine.
Designed for manufacture small parts where budget is important.
With linear guide-way, all functions as per a normal vertical machine center.
Tools (4) can be changed automatically
* Used for machining box parts, shell parts, disc-shaped parts.
* Column and guide way are ground precisely.
* Control Standard GSK. with graphics.
* 4 pcs tool station on worktable
* Additional Computer Socket
* Powerful Brushless Motor & High Precision Axes Movements
* Fine Feedings on Every Directions
* Robust Construction & Stable Performance
* Professional Electronic System
* Cabinet Safety Lock & Considerable Safety Signs
An amazing price for a fully functional CNC machining center.
In stock now for immediate delivery.
Model
SP2211-T
Size of Worktable 900 x 240 mm
Distance from Spindle Nose to Worktable 50 - 450 mm
Distance from Spindle Center to Column 297 mm
X Axis Travel 530 mm
Y Axis Travel 290 mm
Z Axis Travel 500 mm
Spindle taper BT30
Maximum loading weight on work table 60 Kgs
Maximum spindle speed 6000 r/min
Spindle motor power 2.2
Feeding motor power: X/Y/Z axis 1Kw / 1kw / 1Kw
Rapid Feeding Speed X/Y/Z Axis 6 m/min
Feeding Speed 0-2,000 mm/min
T-slot Width 16 mm
T-slot Amount 3
T-slot Gap 60 mm
Minimum set unit of feeding X/Y/Z axis 0.01mm
Maximum tool size Φ60 x 175 mm
Tool magazine capacity 4 pcs
Tool clamping and tightening way Clamp by disc spring and tool-released pneumatically
Maximum loading weight of tool 3.5 Kgs
Voltage and Frequency Customized
Overall Dimension (LxWxH) 1,640 x 1,250 x 1,950 mm
Net Weight 760 Kgs
