Lathe extra heavy duty 1980mm Swing x 3 000mm centers 10T workpiece weight.
$228,000.00 AUD
1 available
New

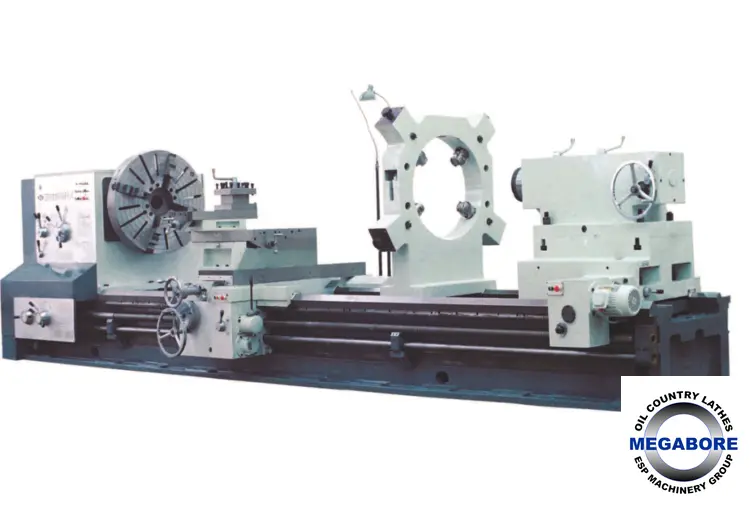

Brand new SUMORE ESPMACH ESP-SP61198 Engine Lathe now available for world wide delivery. Standard Comes with 1200mm diameter 4 Jaw Chuck.
Ideal for precision large scale machining , this state-of-the-art model delivers superior performance and efficiency. Perfect for any professional setting, enhance your operations today.
Max workpiece weight:10T
Max swing over bed:1980mm
Max swing over cross slide:1500mm
Center distance:3M
Bed width:1100mm
Headstock
Spindle bore:∮130mm
Spindle taper:Metric 140#
Spindle speeds:2-200r/mm
GEAR BOX-THREADS & FEEDS
Metric threads range:44kinds 1-120mm
Inch threads range:31kinds 1/4-24tpi
Moudle threads range:45kinds 0.5-60mm
Diametral threads range:38kinds 1/2-56DP
Longitudinal feeds range :56kinds 0.1-12mm
Cross feed range:56kinds 0.05-6mm
Rapid feed:long/cross:3400mm/min,1700mm/min
TOOL POST
Distance between Center&Tool:48mm
Tool section:45*45mm
CARRIAGE
Cross slide travel:780mm
Compound rest travel:280mm
TAILSTOCK
Sleeve diameter:∮260mm
Sleeve taper:Metric 80#
Sleeve travel:300mm
MOTOR
Main drive motor:30kw
Coolant pump motor:0.45kw
Rapid feed motor:1.5kw
Tailstock motor:1.5kw N.W/G.W:19.3/20T
Packing size-estimated:7000*2200*2500mm
2.Standard accessories:
1 pcs Heavy-duty four-jaw chuck-φ1250mm
1 pcs Steady rest-200-500mm
2 pcs Dead center-MT6
2 pcs Centre sleeve
1 pcs Tailstock centre -Metric 80
