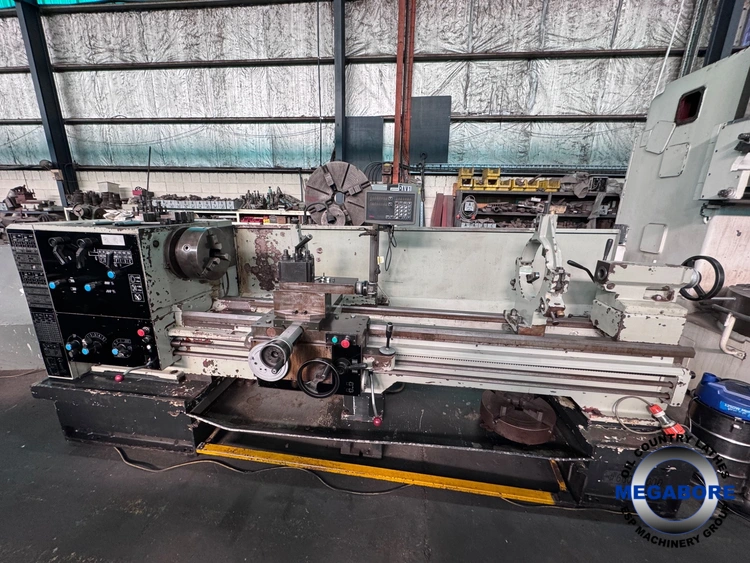

DMTG Metal Lathe 660mm swing, 220mm swing over cross slide, 2000mm centers, and a 105mm spindle bore.
$14,500.00 AUD
1 available
DMTG Metal Lathe Model 660 x 2000.
660mm swing x 2000mm between centers.
105mm spindle bore. Speeds up to 1700rpm.
Fixed & Traveling steady rests. DRO.
Features Power: 7.5 hp, Ideal for precision engineering tasks with various pitch capabilities.
* High rigidity machine structure;
* High speed spindle with big spindle bore;
* Headstock with clutch;
Swing 657.86 mm
Centers 2,971.8 mm
Spindle Bore 104.65 mm
Power 5.6 kW
RPM 1,700 RPM
Swing Over Cross Slide 429.26 mm
Saddle travel - Z axis
(Dc)-120 mm
Travel of top slide 150mm
Max.dimension of tool shank 25x25mm
Cros feed 0.022-0.74mm/rev;45
Longitudinalo feed 0.044-1.48mm/rev;45
Number of Imperial Pitches 47
Range of Imperial Pitches 7 / 16 - 80TPI
Number of Diametral Pitches 47
Range of Diametral Pitches 7/8 - 160DP
Number of Metric Pitches 73
Range of Metric Pitches 0.35 - 80mm
Number of Module Pitches 45
Range of Module Pitches 0.2 - 40 MOD
Longitudinal rapid travelling speed 4 m/mim
Traosverse rapid travelling speed 1.5 m/mim
TAILSTOCK
Tailstock quill diameter 75mm
Tailstock quill taper
No 5 MT
Tailstock quill travel 150mm
