MEGABORE 12.5" H S In Stock SS40 CNC 40" Swing x 87" Between Centers
$398,000.00 USD
1 available
New
MEGABORE is the leading brand in Oil country and hollow spindle lathes. Preferred by most of the big oil shops around the world for hard work and reliability.
This SS40, is a new heavy duty lathe, in stock with SMW Air Chuck. An ideal machine for demanding machining tasks, it combines reliability and precision.
Suit any workshop requiring a big bore heavy duty.
Currently located in our Melbourne Facility. Ready for immediate despatch to any major port.
-Fitted with SMW Air Chuck
-One piece 45 degree slant bed construction
-Auto lubrication system
-Precision taper roller bearings
-Heat treated quill

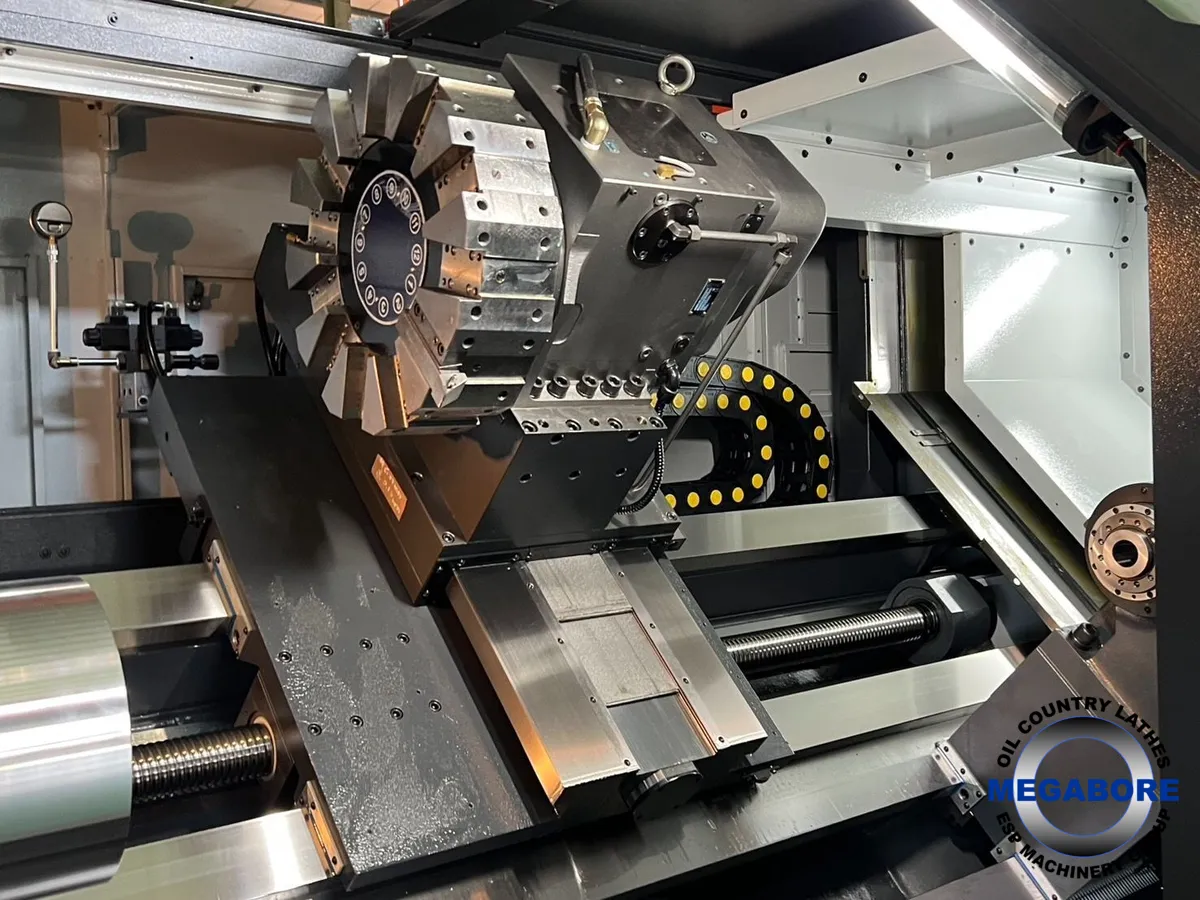

-V12 Turret

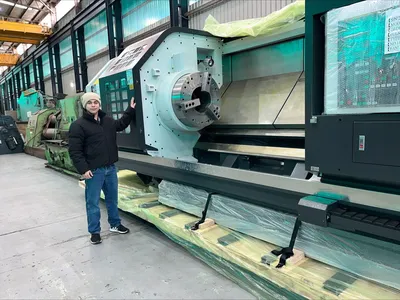

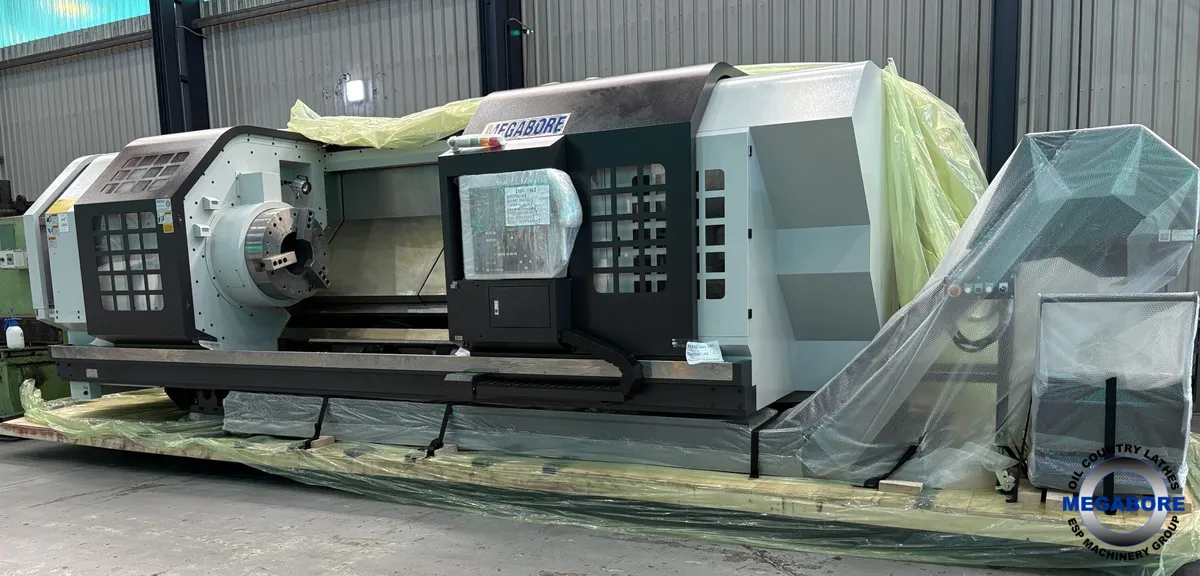

Photos show final assembly and testing prior to despatch.
Now in our Melbourne facility.
Fanuc 0i-TF with manual guide software and thread repair.
28" Steel body 4-Jaw chuck fitted on rear.
Plus all standard accessories.
* One piece bed, 45° slant bed construction ensures maximum stability and convenient chip disposal.
* Alloy steel spindle with opposed taper roller bearings.
* All gears in the headstock are hardened and precisely ground.
* Automatic ranges of spindle speed through pneumatic gear shift.
* Spindle speed ranges are automatically changed by M code.
* Infinitely variable speed are commanded by S code.
* Tool change are commanded by T code.
* Auto lubrication system is equipped for headstock, carriage, and cross-slide.
* Precision tapered roller bearings are equipped on the spindle and the quill.
* The quill is heat treated and precisely ground.
* Internal taper of quill to suit MT#5 dead center or live centre.
* Turcite B anti friction material is applied on cross slide and carriage for reduce friction.
* X and Z axis ballscrews are protected by covers to prevent ingress of swarf / chips and coolant.
TAILSTOCK
Quill type Built-in type, Rotating tailstock quill
Quill diameter mm (in.) 160(6.29)
Quill travel mm (in.) 200(7.87)
Internal taper of quill MT#5
MOTOR
Headstock oil refrigerator 18,000BTU(4,500Kcal)
Main spindle KW(HP) 30/37(40/50)-STD. ; 37.5/45(50/60)-OPT.
Axis servo KW(HP) X axis : 7(9.387) ; Z axis : 7(9.387)
Hydraulic tank KW(HP) 3.7(5)
Coolant pump KW(HP) 1.05(1.4)
Controller FANUC 0i-TF series-STD ; FANUC 31i-B series / Other required-OPT.
SMT 3-Jaw Air Chuck front
28" Steel body 4-Jaw chuck fitted on rear
* V12 turret.
* Rotating tailstock quill with 160mm diameter.
* Motorized tailstock body and quill movement.
* FANUC 0i-TF series complete with manual guide and thread repair.
* Front chip conveyor.
