HAAS ST-30SSY Lathe

GENERAL SPECIFICATIONS
Feature Specification
Year 2017

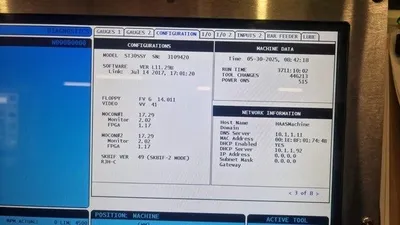

Control Haas Next Generation Control (NGC)
Swing Over Front Apron 31.75″ (806 mm)
Max Cutting Diameter 16″ (406 mm)
Max Turning Length 23″ (584 mm)
Chuck Size 10″ (254 mm) Hydraulic 3-Jaw
Spindle Nose A2-6

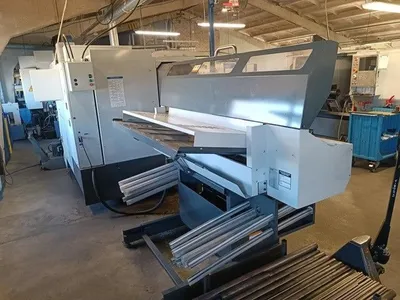

Bar Capacity 3.0″ (76 mm)

TRAVELS & AXES
Axis Travel
X-Axis 12.5″ (318 mm)
Z-Axis 23″ (584 mm)
Y-Axis ±2.00″ (±50.8 mm) Total: 4.00″ (101.6 mm)
C-Axis Full 360° Contouring

SPINDLE & MOTOR
Feature Specification
Spindle Drive Belt Drive
Spindle Power 30 hp (22.4 kW) Vector Drive
Max Spindle Speed 4,500 rpm
Spindle Bore 3.50″ (88.9 mm)

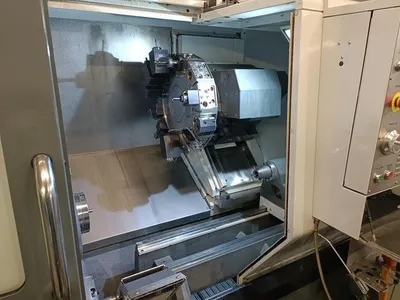

TURRET & TOOLING
Feature Specification
Turret Type Hybrid BOT/VDI
Tool Stations 24 Total (12 Station Base + 12 VDI Live)
Live Tooling Yes (Radial and Axial)
Live Tool Power 5 hp (3.7 kW)
Max Live Tool RPM 6,000 rpm

COOLANT & CHIP MANAGEMENT
Feature Specification
Coolant Tank Capacity 55 gal (208 L)
Coolant Pump 3/4 hp (0.6 kW)
Chip Conveyor Optional (Belt Type or Auger)
Enclosure Washdown Included

MACHINE DIMENSIONS
Feature Specification
Footprint (L × D) 121″ × 79″ (3,073 × 2,007 mm)
Height 83″ (2,108 mm)
Weight 11,340 lbs (5,144 kg)
