ESP-Megagrind CNC 500 X Cylindrical | Cylindrical Grinders Including Plain & Angle Head

+61396896044
sales@espmach.com.au
$206,000.00 AUD
1 available

Overview

Type:
Cylindrical Grinders Including Plain & Angle Head
Manufacturer:
ESP-Megagrind CNC
Model:
500 X Cylindrical
Stock #:
GU10054
Status:
For Sale

Description

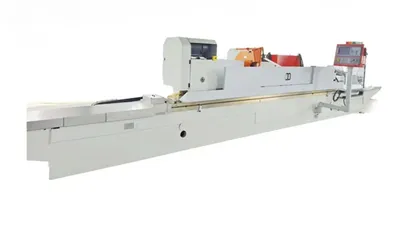

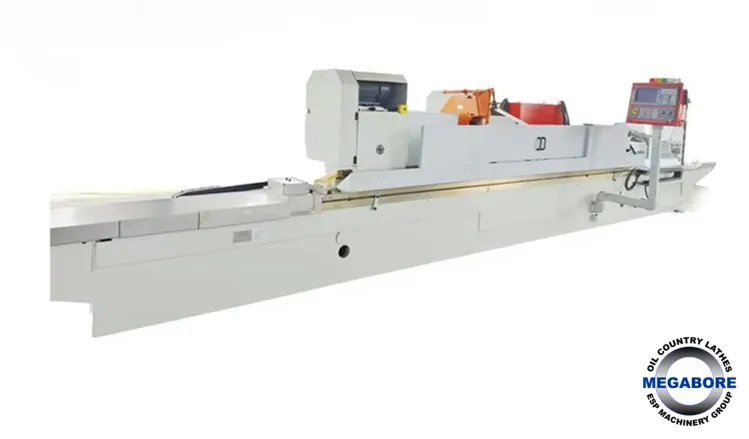

CNC Cylindrical Grinder Machine MK1350 High Precision Universal
Automatic Metal Grinding Machine 2000mm SP1350 With
FANUC CNC System with Manual Guide I function

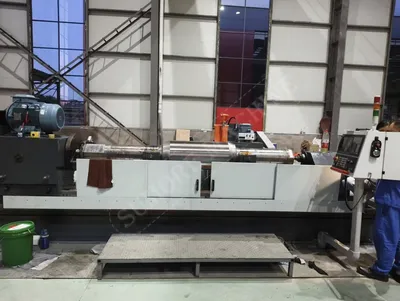

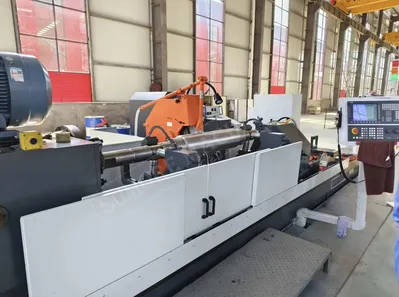

he ESP-Megagrind CNC A well designed CNC controlled cylindrical grinder equipped with automatic feed of grinding wheel, it can perform coarse, fine, and spark free grinding, and can grind shaft rollers with arc and cone surfaces. Equipped with automatic dressing and compensation of grinding wheels, as well as safety interlock self-protection function with automatic cyclic action.

Swing500 mm19.685"
Centers3000 and 400078.74"
Plain or Angle HeadPlainPlain
Grinding Wheel Dia.750 mm29.528"
Wheel Power40 hp29.8 kW
PlungeNoNo
GaugingYesYes
DresserYesYes
ControlCNC (Fanuc 0i-TC CNC Control (incl. manual guide i))CNC (Fanuc 0i-TC CNC Control (incl. manual guide i))
DimensionsSee SpecsSee Specs
Weight9500kg 12500kg 15500kg9500kg 12500kg 15500kg

Maximum grinding workpiece length:2000mm
Grinding outer diameter range:Ф 30-Ф 500mm
Maximum weight of load-bearing workpiece:2000kg
Center height:270mm
Grinding wheel diameter:Ф750 x 75 x Ф305mm
Grinding wheel linear velocity:0-50m/s
Total power of machine tool:30 KW
Machine weight:9500kg
Machine tool external dimensions:8000*2000*1800 mm
Roundness:≤0.0015mm
Consistency of diameter within longitudinal section:≤
0.002mm/1000mm
Surface roughness:Ra≤0. 15μm

Please request a spec check if relying on a particular specification.
