ESP-MEGAGRIND 500mm Swing x 2000mm BC CNC
$216,000.00 AUD
New
CNC Cylindrical Grinder Machine MK1350 High Precision Universal
Automatic Metal Grinding Machine 2000mm SP1350 With
FANUC CNC System with Manual Guide I function

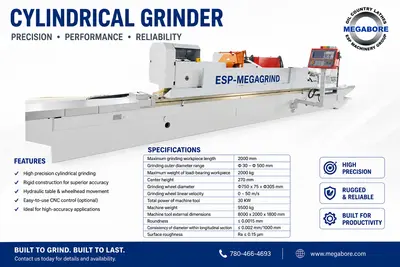

The ESP-Megagrind CNC A well designed CNC controlled cylindrical grinder equipped with automatic feed of grinding wheel, it can perform coarse, fine, and spark free grinding, and can grind shaft rollers with arc and cone surfaces. Equipped with automatic dressing and compensation of grinding wheels, as well as safety interlock self-protection function with automatic cyclic action.
Maximum grinding workpiece length: 2000mm (3000mm and 4000mm BC Available).
Grinding outer diameter range:Ф 30-Ф 500mm
Maximum weight of load-bearing workpiece:2000kg
Center height:270mm
Grinding wheel diameter:Ф750 x 75 x Ф305mm
Grinding wheel linear velocity:0-50m/s
Total power of machine tool:30 KW
Machine weight:9500kg
Machine tool external dimensions:8000*2000*1800 mm
Roundness:≤0.0015mm
Consistency of diameter within longitudinal section:≤
0.002mm/1000mm
Surface roughness:Ra≤0. 15μm
Price Listed is for the 2m Version
