Vertical Boring Machine
$130,000.00 AUD
1 available
New

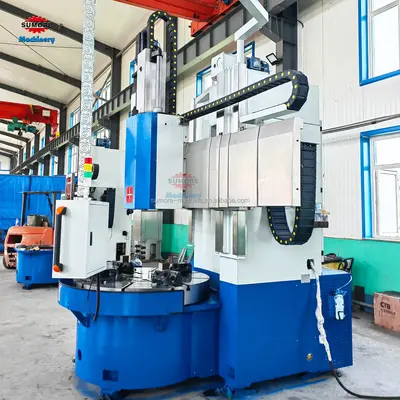

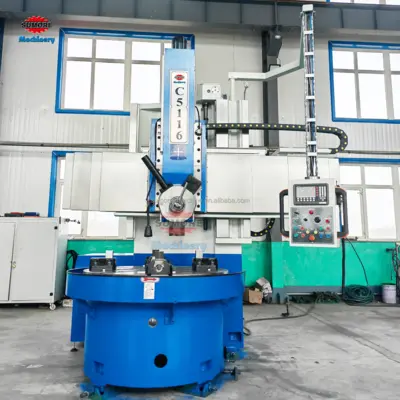

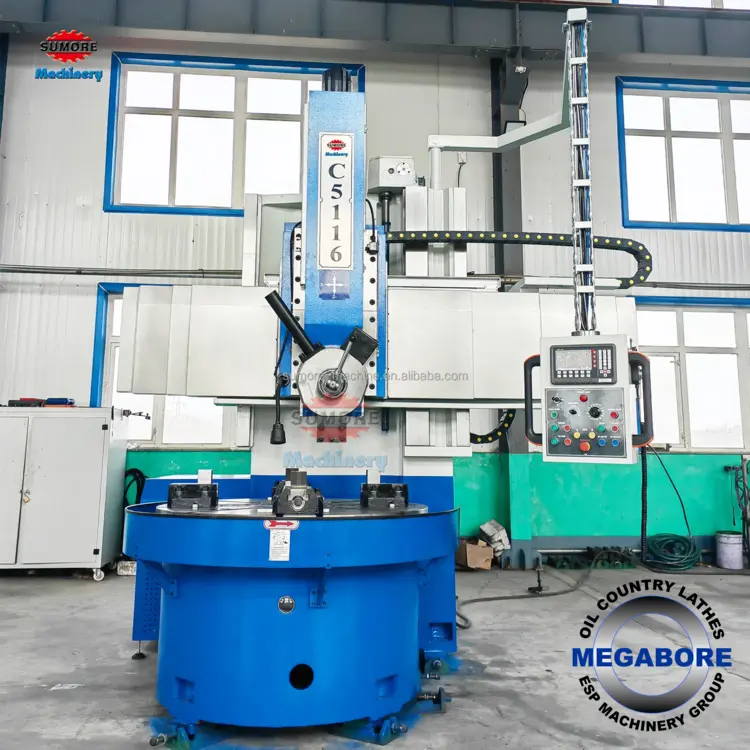

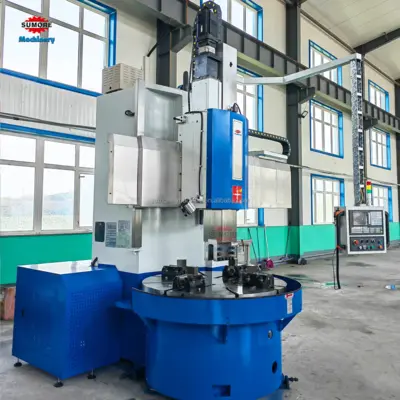

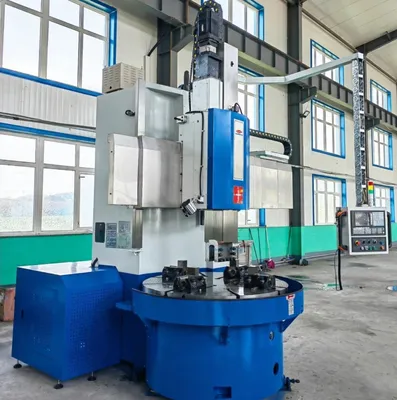

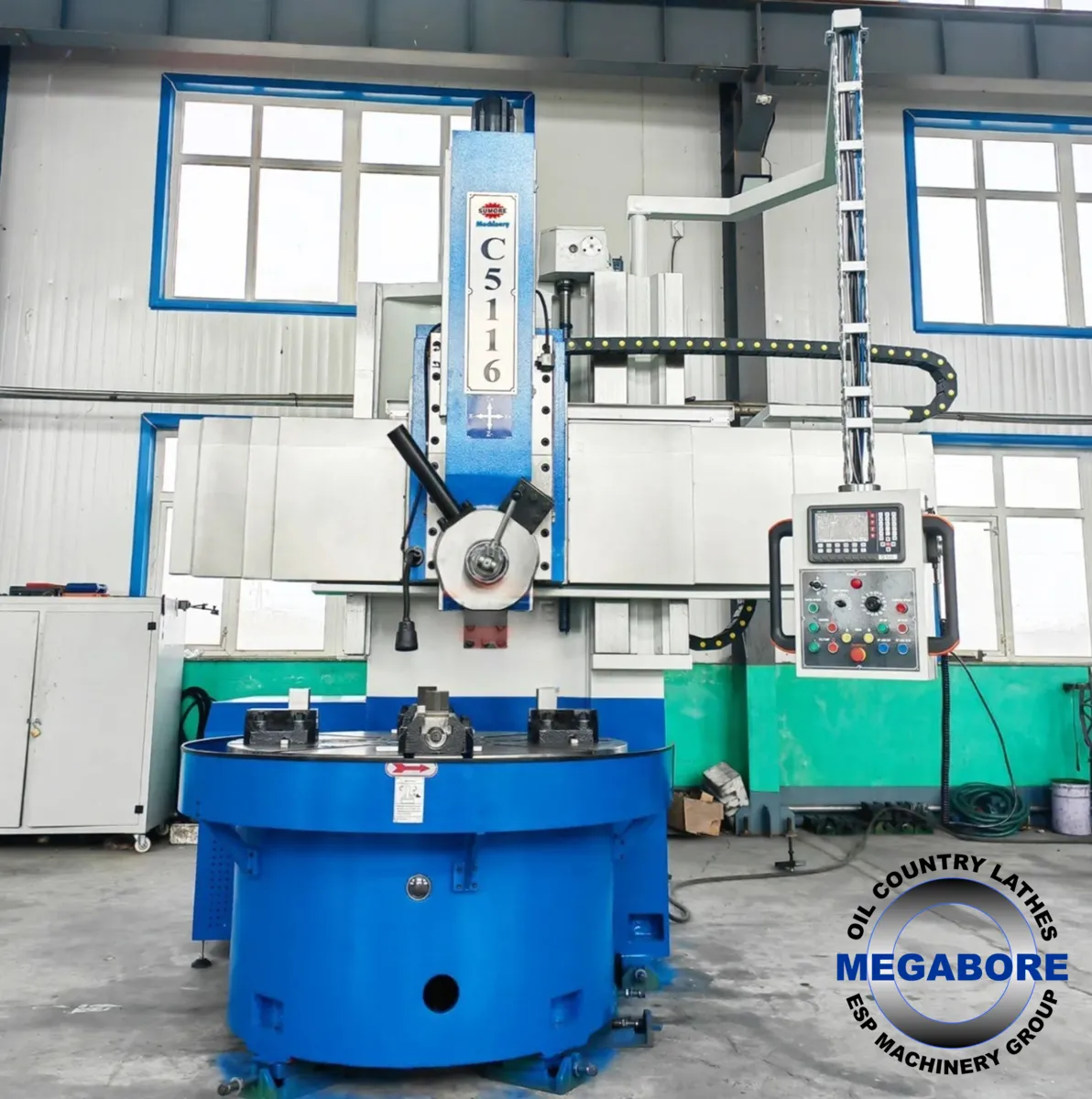

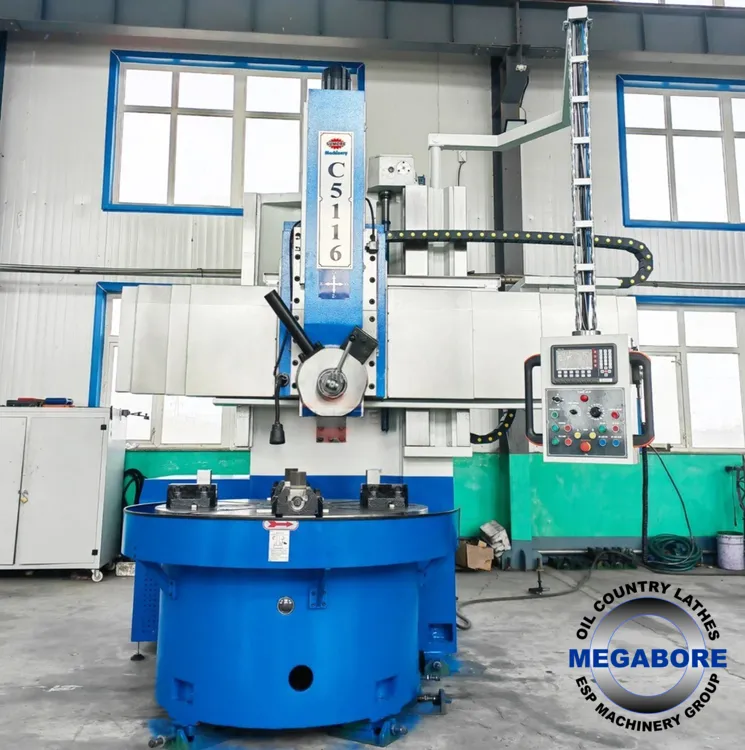

SP5116 single column vertical lathe, configuration of advanced & reliable mechanical & electrical components, structural performance is outstanding, strong and rigid.
Well built machine tool for heavy duty machining, worktable can carry 5t load, stable, high efficiency, safe, reliable.
Maximum cutting diameter:1600 mm
Worktable diameter:1400mm
Maximum workpiece height:1200mm
Maximum workpiece weight: 5 t
Worktable speed range:5-160 r/min
Worktable speed series:16 levels
Worktable maximum torque1:25Kn/m
Tool rest feed series class:Stepless
Maximum cutting force of vertical tool rest:22 KN
Slider Horizontal stroke:915mm
Vertical stroke:800mm
Side tool rest horizontal stroke:620mm
Side tool rest vertical stroke:650mm
Crossbeam stroke:850mm
Tool rest feed range:0.1-500mm/min
Tool rest fast moving speed:2000mm/min
Crossbeam lifting speed:440mm/min
Tool bar cross-section size (length x width):30x40mm
Main motor power:30kW
Machine tool dimensions:3000x2800x3300mm
Machine tool weight (approx.):13T
