Megabore Compact 17 inch CNC (440MM) Hollow Spindle
$295,000.00 AUD
1 available
New
The Megabore Compact CNC with 1000mm swing over bed 1500 mm between centers. The megabore compact is for those who don't the need full a blown heavy duty megabore lathe.
The compact series offers capacity without the price. Machine is available in various bed lengths.

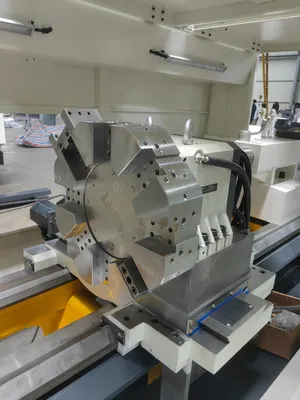

This machine is fitted with a 8 station turret, Front and Rear Chucks, Electric tailstock. Fanuc Control.
Max. load capacity:6T
Max.diameter swing over bed:1000mm
Max.diameter swing over cross slide:610mm
Max.length of workpiece:1500mm
Max.Machining length:1500mm - options available
Pipe threading range:Φ260-430mm
Guideway width:755mm
Spindle bore:440mm
Spindle center height:500mm
Power of spindle motor:22KW
Range of spindle speed:VF2 steps 23-90/80-260mm
Max.traverse of X/Z:X 520mm/Z 1500mm
X/Z rapid traverse:4000/6000mm/min
Tailstock quill diameter:160mm
Tailstock quill travel:300mm
Tailstock quill taper:MT6
Brand and model of turret:SLD170A04N
Tool shank size of turret:40×40mm
Chuck:K66-1000 Electric four-jaw compound chuck
Overall dimensions(L×W×H):4900×2200×2300mm
Machine weight:14T
Standard accessories:FANUC system, Front and rear double
chucks,Four-station electric tool turret, Electric tailstock,
Automatic lubrication, Cooling system, Semi-enclosed protective
cover
FANUC system, Front and rear double
chucks, Six-station electric tool turret, Electric tailstock,
Automatic lubrication, Cooling system, Semi-enclosed protective
cover.
Outboard steadies are an extra.
