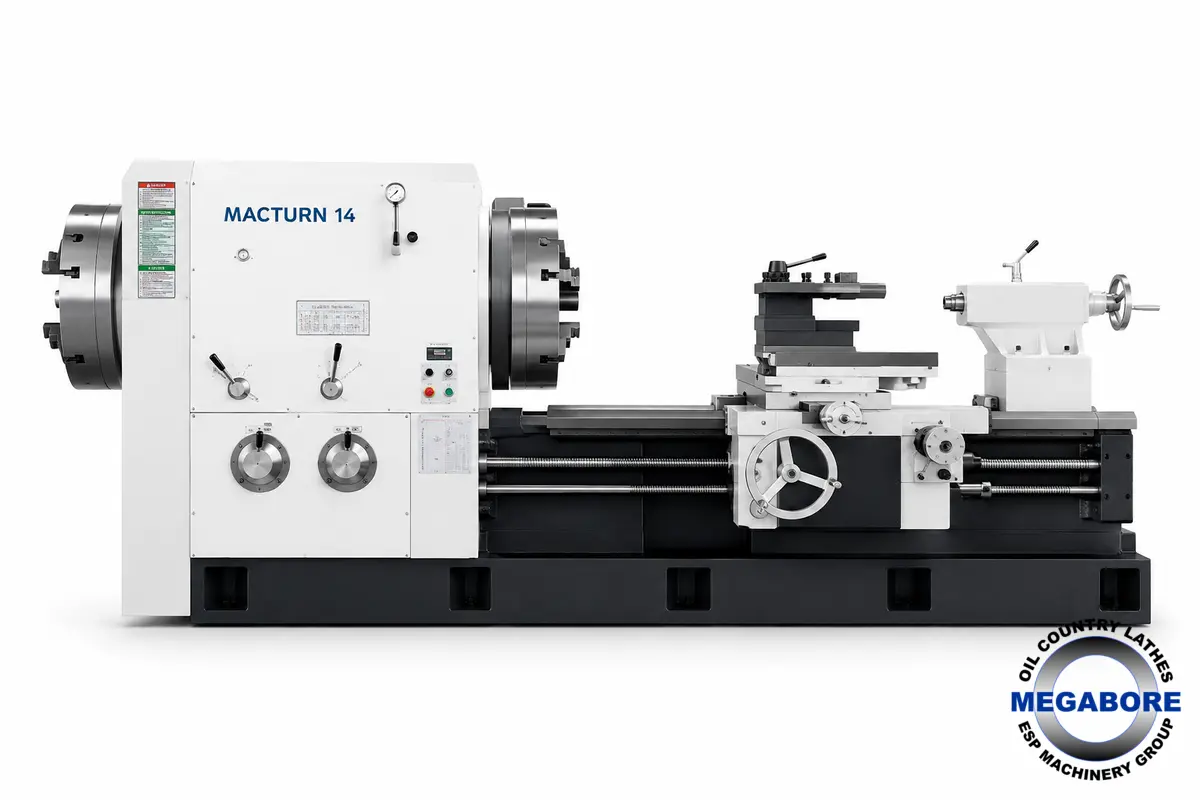

Macturn 14 inch Hollow Spindle x 1000 swing x 2000 Centers
$189,000.00 AUD
1 available
New

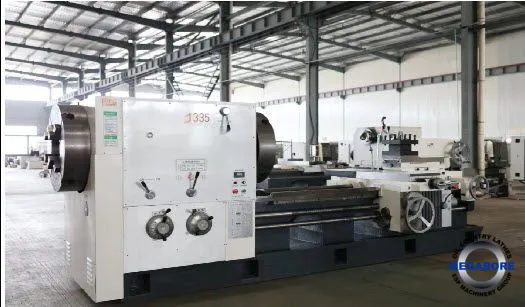

Manual oil country lathe with 14inch clear Hollow Spindle. Substantial saving on our heavy duty Megabore Lathe.
Configuration:
1.Front and rear double KFG-780 electric compound chucks
2.Four station
tool rest
3.Taper lever
4.Manual tailstock
5.Automatic lubrication
6. Cooling
system
7.Steady Rest & Follow Rest
8.2-axis DRO
Swing over bed:1000mm
Swing over cross slide:610mm
Max.length of work-piece:4000mm
Max. processing length at once:3750mm
Guideway width:755mm
Max. load capacity:6T
Spindle center height:500mm
Spindle bore:360mm
Pipe threading range:Φ150-350mm
Spindle speed step:Two-speed frequency conversion,
infinitely variable speed within the gear
Spindle speed range:Low speed:30-130r/min High
speed:65-260r/min
Power of spindle motor:22KW
Z axis feed grade /range:32/0.1-1.5mm/r
X axis feed grade /range:32/0.05-0.75mm/r
Carriage raid traverse speed:3740mm/min
Cross slid raid traverse speed:1870mm/min
Metric thread grade/range:23/1-15mm
Inch thread grade/range:22/28-2T.P.I
Traverse of cross slide:520mm
Max. Traverse of turret:300mm
Tailstock quill Diameter:160mm
Tailstock quill Travel:300mm
Tailstock quill Taper:MT6
No.of tool stations:4-station tool holder
Tool shank size:40×40mm
Taper bar Active length:800mm
Taper bar Conical range :0-1:4
Chuck:KFG-780 Electric Four-jaw Compound Chuck
Packing size(L×W×H): 7200×2150×1650mm
Machine
2 x 4 Jaw Chucks
