Macturn 14 inch HS CNC 1000mm swing x 2000 Centers
$255,000.00 AUD
1 available
New

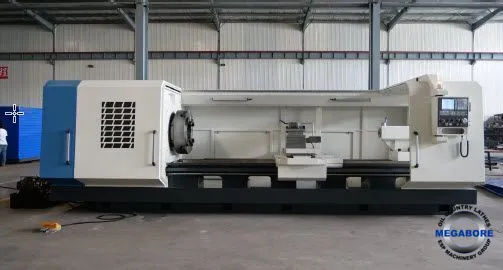

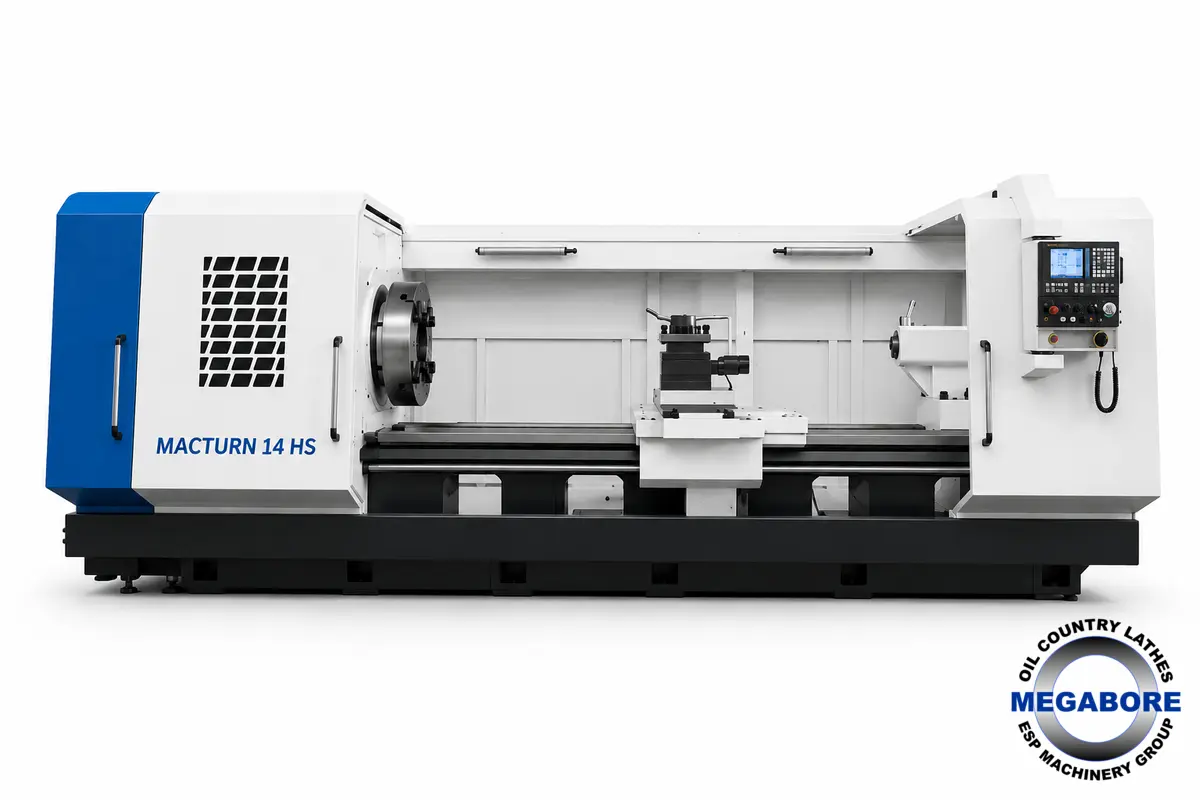

Introducing the Macturn 14 inch HS CNC lathe. New and robust, it offers a lower cost alternitave to the Megabore LD SA and SS, Oil Country Lathes.
1000mm swing, 2000mm centers, and 14" spindle bore.
Ideal for oil field and hollow spindle tasks, including thread repair. Hydraulic and general machine shop work.
It boasts a 6T load capacity and precision engineering.
Max.Swing over bed:1000mm
Please Note:
The turning diameter is governed by the type of toolholder, i.e. 6 station turret or standard toolpost.
Max. Swing over cross slide:610mm
Max.work piece of length:4000mm
Guideway width:755mm
Spindle bore:360mm
Max. load capacity:6T
Spindle center height:500mm
Pipe threading range:Φ150-350mm
Mode of spindle speed:Two-speed frequency
conversion, infinitely variable speed within the
gear Spindle
speed range:Low speed:30-130r/min High
speed:65-260r/min
Spindle motor power:22KW
Max.traverse of X/Z:X:520mm/Z:4000mm
X/Z rapid traverse:4000/6000mm/min
Tailstock quill diameter:160mm
Tailstock quill travel:300mm
Tailstock quill taper:MT6
Tool shank size:40*40mm
Overall dimension:7400×2200×2300mm
Machine Weight:15T
Machine is available in 2, 3, 4 Meter BC bed.
