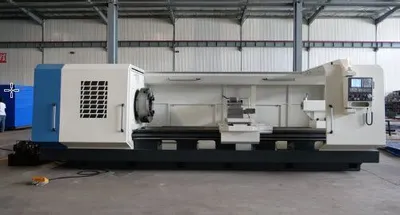

Megabore Compact 14 inch HS CNC

Max.Swing over bed:1000mm
Max. Swing over cross slide:610mm
Max.work piece of length:4000mm
Guideway width:755mm
Spindle bore:360mm
Max. load capacity:6T
Spindle center height:500mm
Pipe threading range:Φ150-350mm
Mode of spindle speed:Two-speed frequency
conversion, infinitely variable speed within the
gear Spindle
speed range:Low speed:30-130r/min High
speed:65-260r/min
Spindle motor power:22KW
Max.traverse of X/Z:X:520mm/Z:4000mm
X/Z rapid traverse:4000/6000mm/min
Tailstock quill diameter:160mm
Tailstock quill travel:300mm
Tailstock quill taper:MT6
Tool shank size:40*40mm
Overall dimension:7400×2200×2300mm
Machine Weight:15T
