New

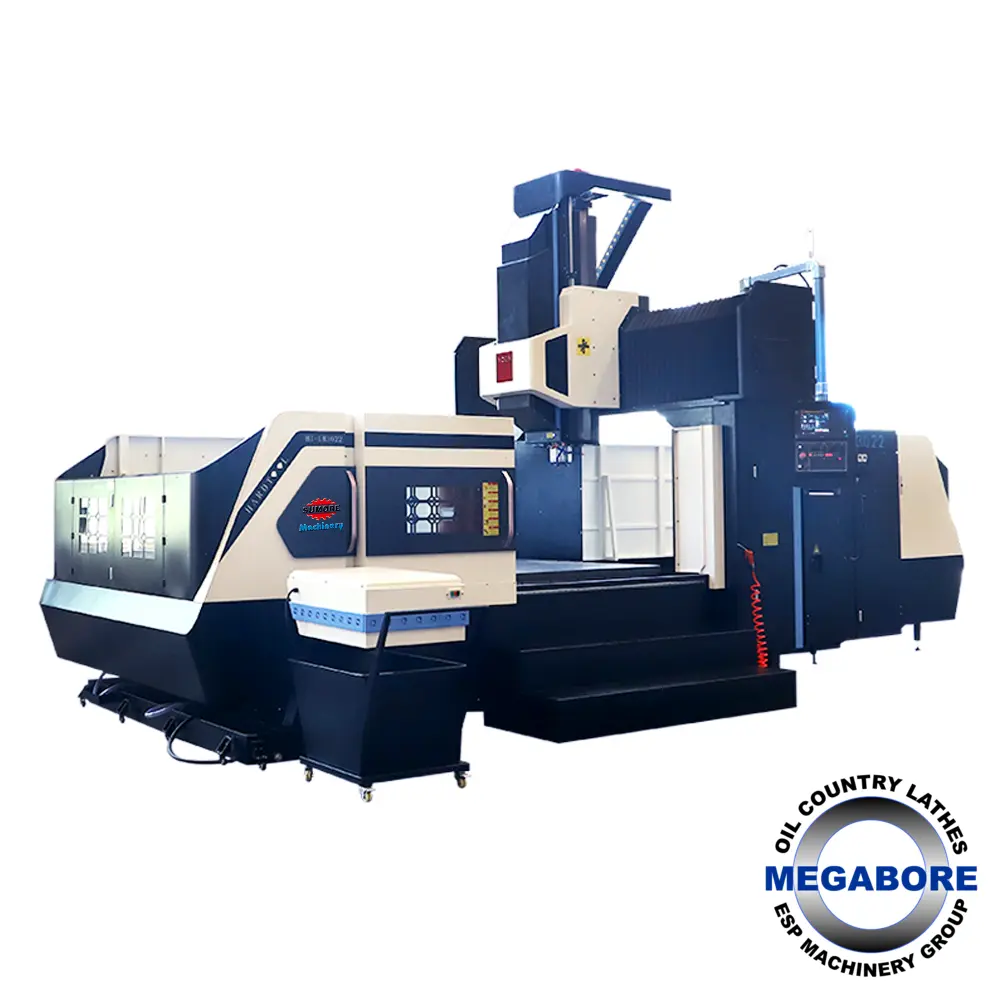

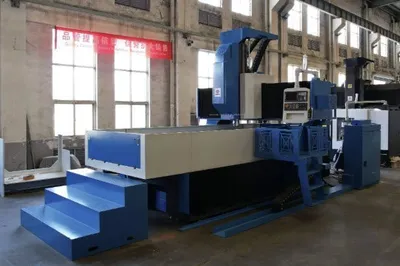

GMC1800 GMC2200 GMC2700 GMC3000 Gantry Machine Center
Quick Details
Main motor power:15-18.5KW /15-18.5KW /22-26KW/22-26KW
Distance from spindle surface to table surface:(mm) 150-1150/280-1280/280-1280 /280-148
Max tool length:400mm
1800mm CNC Gantry Type Vertical Machining Center is available in 5 length of machining capabilities, GMC1800 GMC2200 GMC2700, 3000 and 4000.
Equipment (optional: 3-axis, 4-axis and 5-axis gantry machining centers. Can also customize according to your requirements.
Parameters: X/Y/Z axis max travel: 2000/2500/3000/3500*1850*800mm Gantry width: 1600mm Table size WXL: 1300*2000/2500/3000/3500mm
Specification
High Quality CNC Gantry Milling Machine Center Gantry type horizontal 5 axis cnc machining center Gantry Machining Center Main Feature: Gantry milling machine machining center cnc inherits the advantages of rigid rigidity, structural symmetry and strong stability of the traditional gantry machine frame. It introduces the international advanced dynamic rigid design concept and optimizes the design of moving parts. The machine tool has large torque and fast response characteristics, and is suitable for various mechanical processing situations.
We can offer several models of Gantry Mills at great prices reply to this machine and supply your x y z dimensions for quote.
X/Y/Z axis max travel: 2000/2500/3000/3500*1850*800mm
Table size WXL: 1300*2000/2500/3000/3500mm
Model GMC1210 GMC1400 GMC1600
Capacity
Table size WXL(mm) 820*1300 1000*2000/2500/3000 1300*2000/2500/3000/3500
Loading capacity on table(ton) 1 3.5 4
Distance from spindle surface to table surface(mm) 70-670 150-950 250-1050
Table T slot 5-18-160 7-22-170 7-22-170
X axis travel(mm) 1000 2000/2500/3000 2000/2500/3000/3500
Y axis travel-including travel of tool change(mm) 1250 1650 1850
Z axis travel(mm) 600 800 800
Gantry width(mm) 1050 1400 1600
Spindle
Spindle taper/diameter BT50-155 BT50-190 BT50-190
Spindle speed – belt(rpm) 6000/8000rpm 6000/8000rpm 6000/8000
Main motor power(kw) ‘11-15 15-18.5 15-18.5KW
Cutting Speed
Rapid feed speed(m/min) X:15 Y:15 Z:10 X:15 Y:15 Z:10 X:15 Y:15 Z:10
Cutting feeding speed(m/min) 10 10 10
Accuracy
Positioning accuracy(mm) ±0.005 ±0.005 ±0.005
Repositioning accuracy(mm) ±0.003 ±0.003 ±0.003
ATC
Tool number 24 24 24
Tool change time(s) 2.7 2.7 2.7s
Max tool weight(kg) 8 8 8
Max tool diameter(mm) 112/200 112/200 112/200
Max tool length(mm) 400 400 400
Machine weight & dimension
Machine weight(ton) 10 15 19
Overall dimension(mm) 3500*2400*3200 5000/5500/6000*3780*3568 5000/5500/6000/6500*4080*3668
