VMC 1300-700-700 Travel
$115,000.00 AUD
1 available
New
Brand new SUMORE ESPMACH ESP-SMC1370 vertical machining center with X: 51.18, Y: 27.56, Z: 27.56, 14.75 power, 12000 RPM, BT40 taper, and spacious 1400x700 table size. Ideal for precision and efficiency in complex projects.

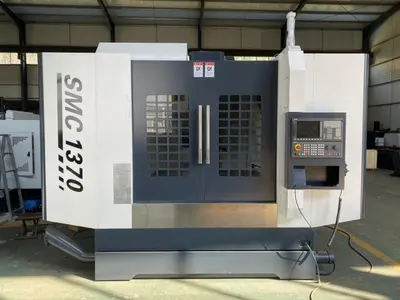

SMC1370 Vertical Machining Center with Fanuc-OIMF system
Configurations:
1.Fanuc-OI-MF control system
2.12000 RPM spindle speed
3.Taiwan Gangtian 24-position disc tool magazine
4.Worktable: 1400*700mm
5.X/Y/Z travel:1300/700/700mm
6.X/Y/Z Linear guideway
7.Taiwan HIWIN screw
8.Yunnan high quality casting
9.Taiwan HIWIN linear guideway
10.Move the hand vein；
11.Centralized automatic oil lubrication；
12.External cooling system and water tank；
13.Simple oil-water separation device；
14.Full protection sheet metal shield and rail shield；
15.Adjustable block ；
16.Tubular work lig
1.Travel
X-axis:1300mm
Y-axis:700mm
Z-axis:700mm
spindle nose to table surface:110-810mm
spindle axis to column surface: 750mm
2.Worktable
Table size:1400×700mm
Max.loading:1000kg
T-slot width: 18
T-slot quantity :5
3.Spindle
Spindle taper:BT40
Spindle speed:12000rpm
Spindle motor:11kw
4.Tool
Max.tool dia.:φ80/φ150mm
Max.tool length:200mm
Max.tool weight.:8kg
5.Rapid movement
X、Y axis rapid movement rate:24000mm
Z axis rapid movement rate:20000mm
Cutting feed rate:1-10000mm/min
6.Accuracy
Position accuracy:±0.008mm
Repeat positioning accuracy:±0.003/300mm
7.Motor
X/Y/Z axis AC servo motor （torque N.m 22/22/30）
1.Power device
Form:3-phase AC 380V±10% 50Hz±10%
Capacity:20KVA
2.Coolant system
Capacity:200L
Cooling pump power:450W
Cooling pump flow:67L/min
Rated head:16m
3.Air supply
Using air pressure:0.6MPa
8.Dimension and weight
Dimensions:3700×2750×2800mm
Net weight:8200Kg
