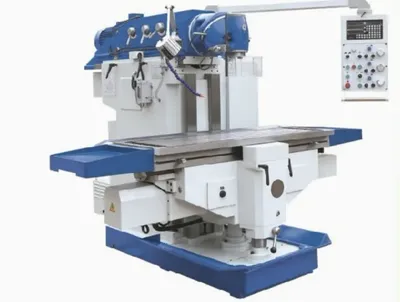

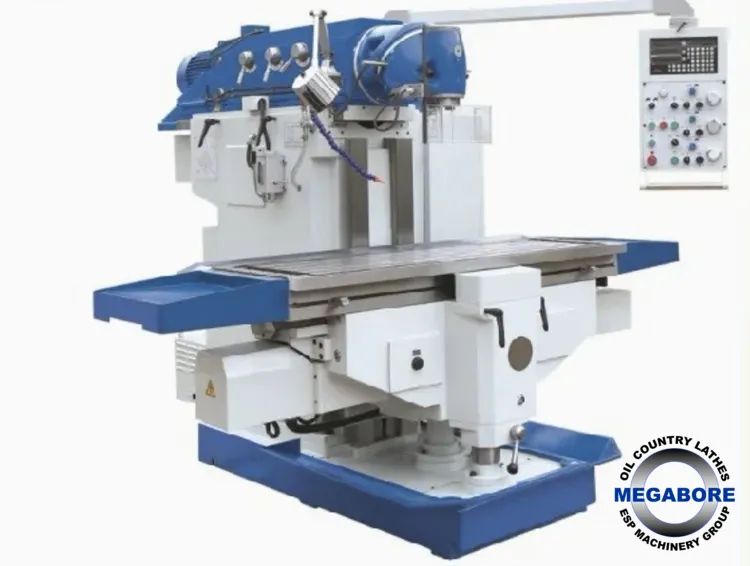

Milling Machine Bed Type Motorised Overarm Universal
$64,000.00 AUD
1 available
New
Motorised overarm heavy duty milling machine.
These machines are available in 3 size tables. 460x1235, - 500x 1600, - 500 x 2000mm
Main Features:
A, Table 3 axes with ball screws, high precision

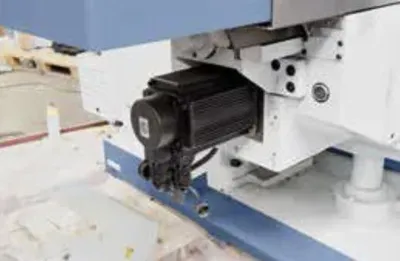

B, Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate
C, Mechanical change speeds in head stock, powerful milling

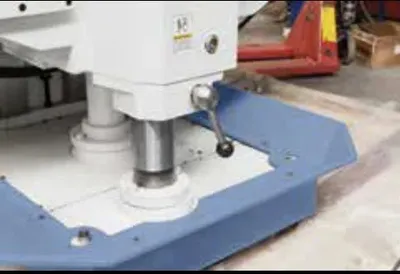

D, Table with an extra supporting column, big load, high accuracy
E,Table with an extra supporting column, big load, high accuracy

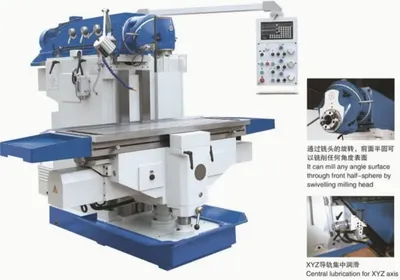

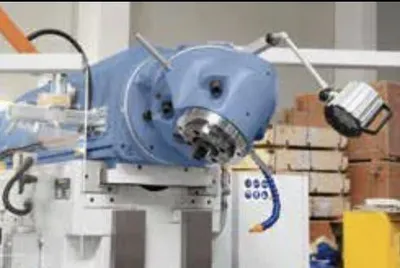

F, It can mill any angle surface through front half-sphere by swivelling milling head.
T-slots(NO./Width/pitch)
mm
5x18x80
Table travel (X/Y/Z)
mm
900x650x450
1200x700x500
1400x700x500
Swivel angle of milling head
-
360°
Spindle taper
-
ISO40
ISO50
Spindle speed range
r.p.m
(27) 30-2050
Table feed(X/Y/Z)
mm/min
10-1000/10-1000/6-640
10-1000/10-1000/5-500
Table rapid speed
2200/2200/1100
Distance between spindle nose and table surface
mm
32-482
25-525
Distance from spindle center line to column
mm
47-697
55-755
Main motor power
Kw
5.5
7.5
Feed motor
Kw
AC servo motor X/Y:15NM,Z: 18NM
Max load
Kg
800
1800
Overall size
mm
1835x2362x2090
2475x2260x2180
2625x2860x2080
Weight
Kg
4000
4500
4800
