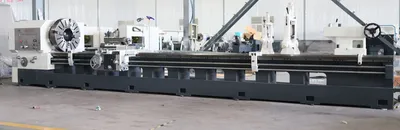

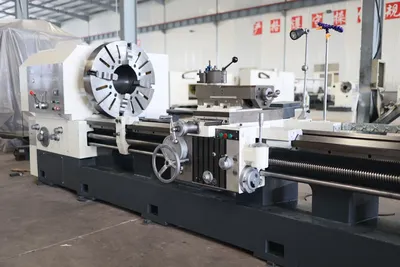

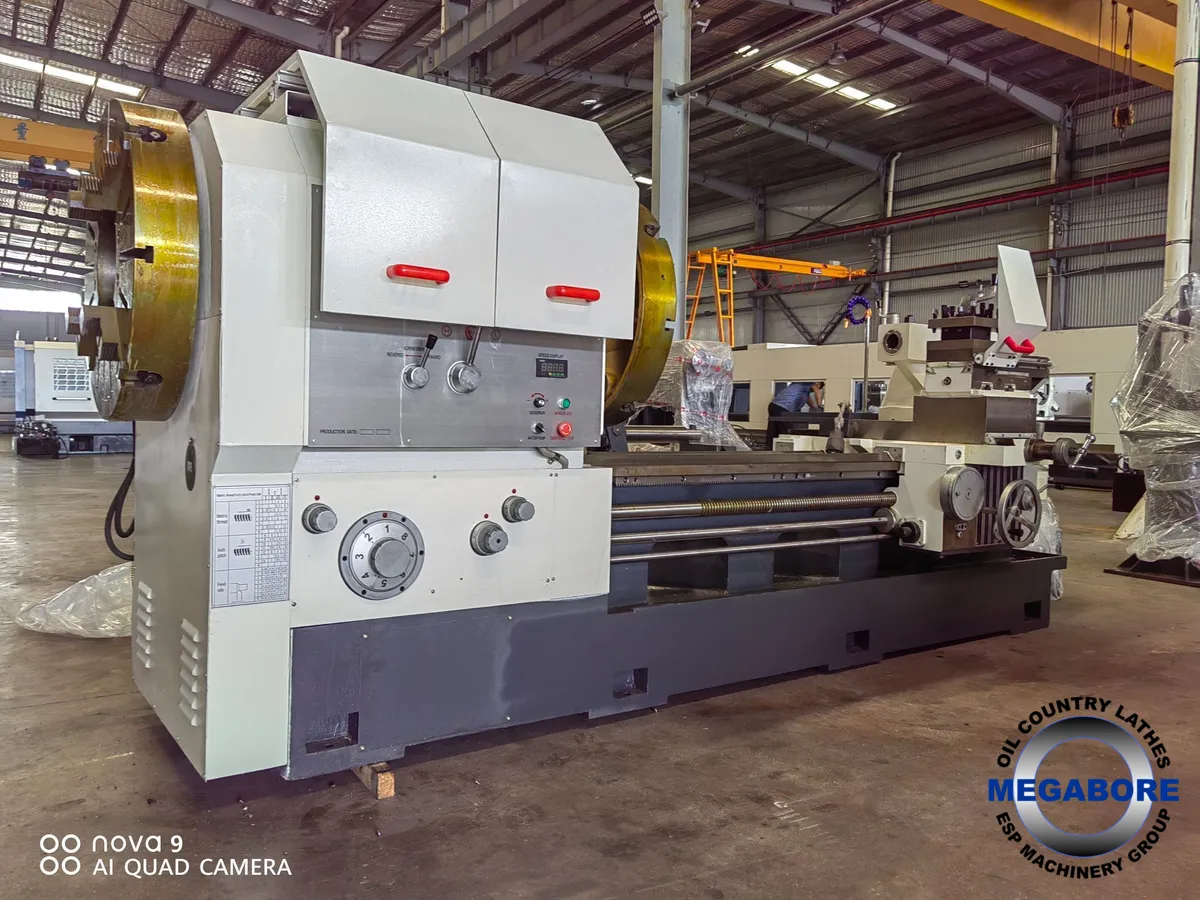

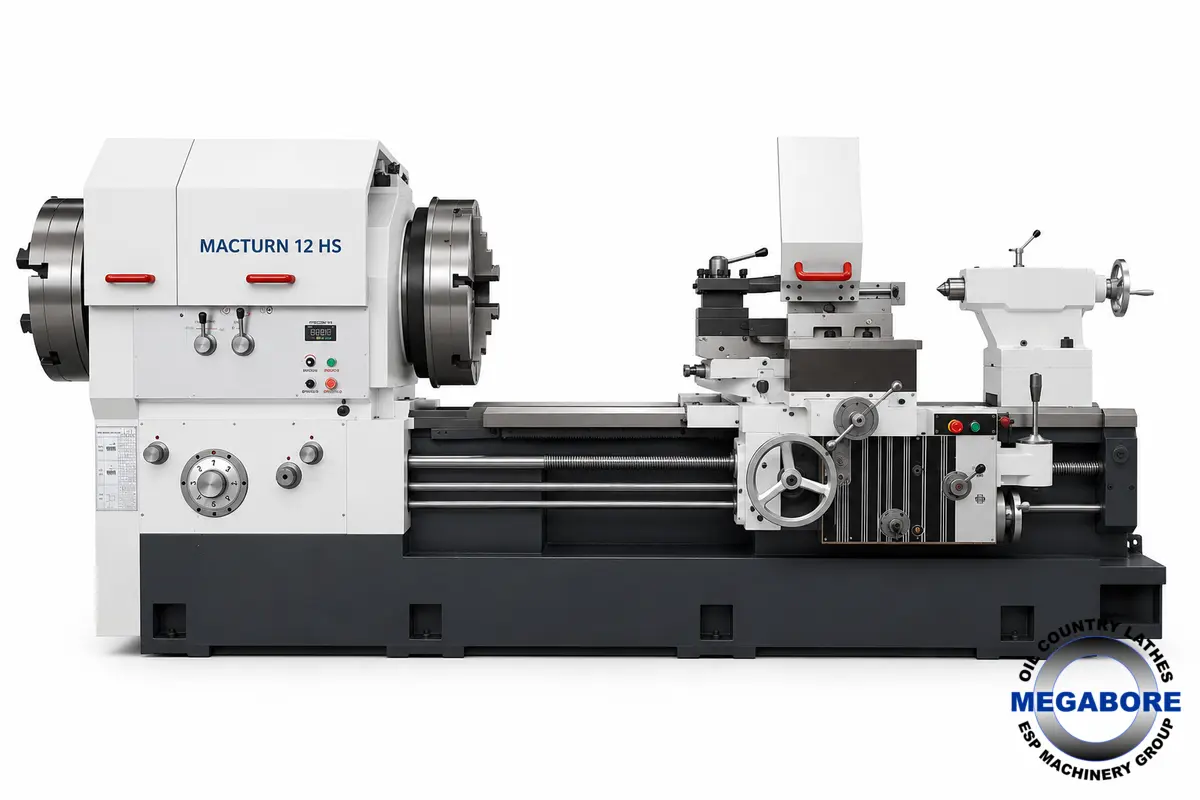

Macturn 12 inch Hollow spindle - 800 mm swing over bed x 2000 BC
$98,000.00 AUD
1 available
New
A versatile lathe primearly used in the oil industry. This series of lathes is widely used in industries such as petroleum, conveyor, chemical engineering, water conservancy, geological exploration, and agricultural irrigation and drainage, effectively completing the machining and repair of pipe threads, drill pipes, drill collars, and casing.
Swing over bed:800mm
Swing over cross slide:480mm
Max.length of work-piece:2000mm - 3000mm -4000mm available
Max. processing length at once:1750mm
Guideway width:600mm
Max. load capacity:4T
Spindle center height:400mm
Spindle bore:305mm
Pipe threading range:Φ80-295mm
Spindle speed step:Two-speed frequency conversion, infinitely variable speed within the gear
Spindle speed range:Low speed:20-100r/min High speed:100-300r/min
Power of spindle motor:15KW
Z axis feed grade /range:32/0.095-1.4mm/r
X axis feed grade /range:32/0.042-0.7mm/r
Carriage raid traverse speed:3740mm/min
Cross slid raid traverse speed:1870mm/min
Metric thread grade/range:22/1-15mm
Inch thread grade/range:26/14-1T.P.I
Traverse of cross slide:420mm
Max. Traverse of turret:200mm
Tailstock quill Diameter:120mm
Tailstock quill Travel:290mm
Tailstock quill Taper:MT6
No.of tool stations:4-station tool holder
Tool shank size:32×32mm
Taper bar Active length:700mm
Taper bar Conical range :0-1:4
Chuck:K72-780 Four-Jaw Chuck
Packing size(L×W×H): 4250×1650×1600mm
Machine weight:9T
Voltage:415V 50HZ 3 Phase+Transformer Standard Configurations:
1.Front and rear double chucks
2.Four-station tool rest
3.Automatic lubrication
4. Cooling system
5. Taper bar
2 steady rest (1 large).-Steady rest-Clamping range 50-300mm & Large steady rest-Clamping range 100-400mm /
DRO for 2 axis
Removable rear splash guards
Electric Tailstock
780mm diameter face plate/
Chuck guard
