KIHEUNG KMB-U5 Milling machine
$60,000.00 AUD
1 available

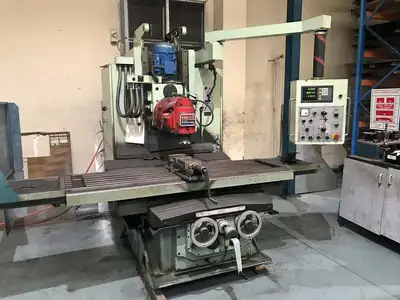

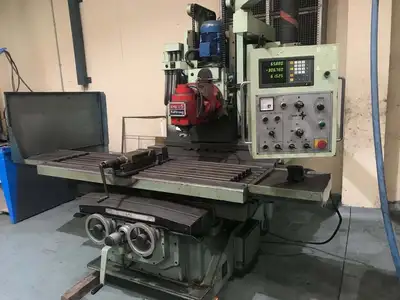

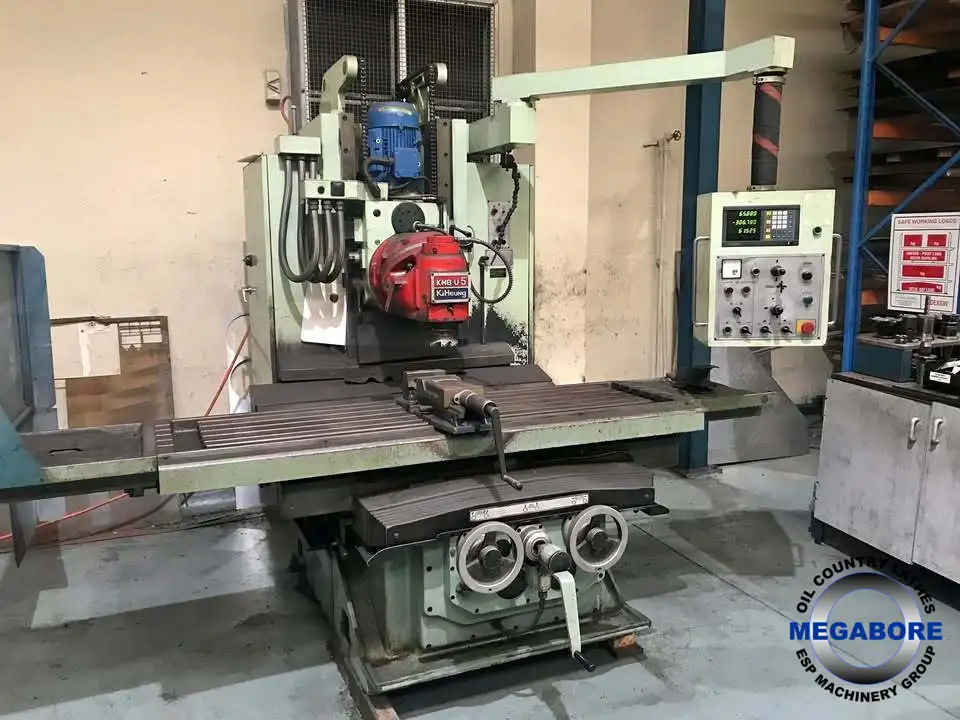

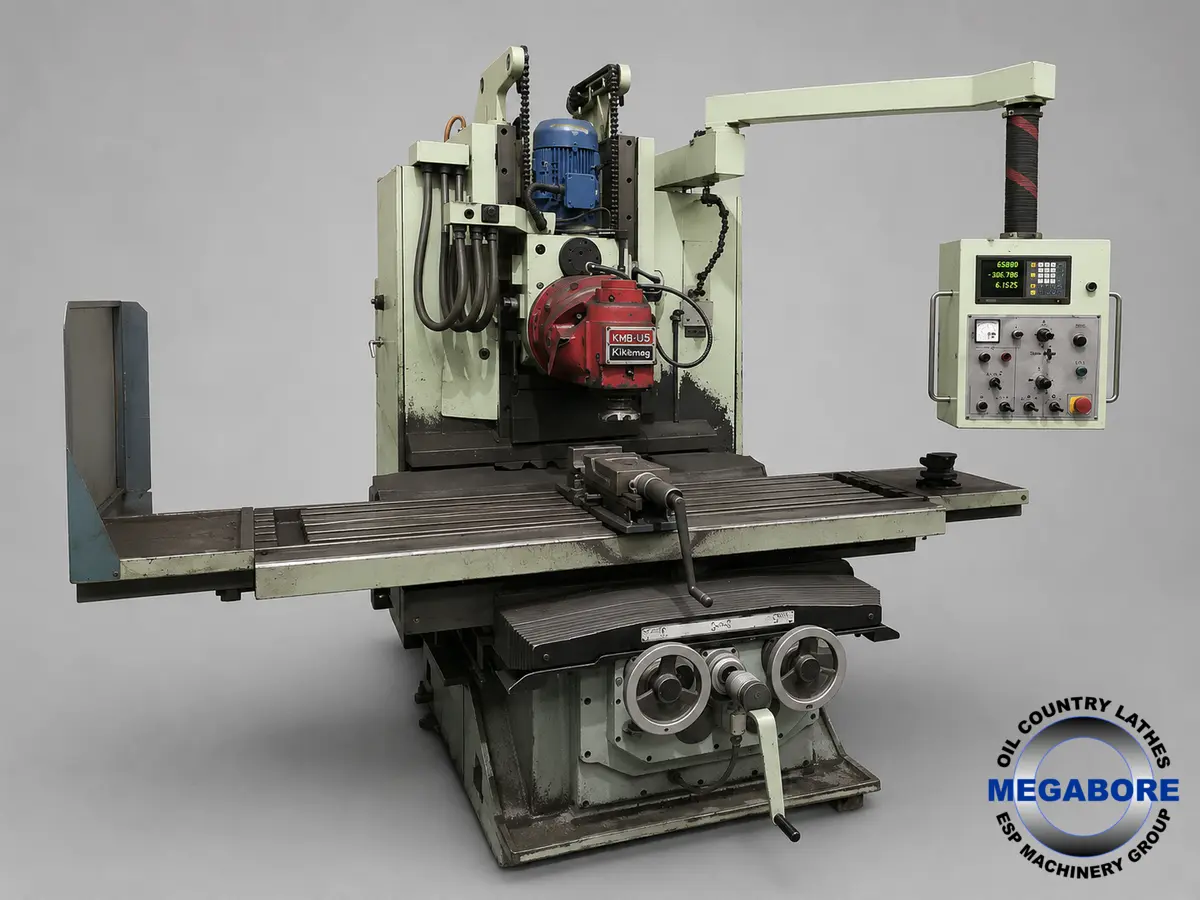

KIHEUNG Milling Machine Model KMB-U5
Year: 1998
• One owner from new
• Very good condition

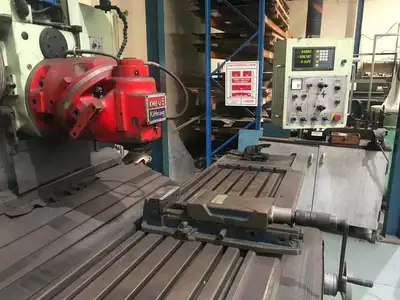

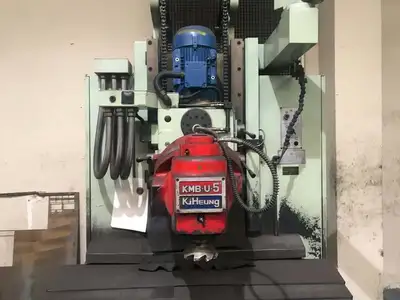

High-quality KIHEUNG bed-type Milling Machine, Model KMB-UH-5. Purchased new in 1998, this machine is in very good condition and features a robust table size of 2000 x 530 mm and a maximum load capacity of 2,000 kg. Built in Korea and well known for its rugged construction and reliability and suitable for vertical & horizontal machining. Kiheung has a unique Huron setup head and low head for angle milling.
Table:
• Working Surface: 2000 x 530mm
• Max. Permissible Load: 2000kg
Travels:
• X-axis (Longitudinal): 1400mm
• Y-axis (Cross): 600mm
• Z-axis (Vertical): 650mm
• Height from Table to Vertical Spindle Nose: 40 - 690mm
• Height from Table to Horizontal Spindle Nose: 50 - 700mm
Spindle:
• Taper: ISO 50
• Speed Range: 40-1720 rpm
• Number of Spindle Speeds: 12
• Spindle Drive Motor: 7.5kW Variable
Feed:
• Rapid Feed: 5000 mm/min (X,Y) / 2500 mm/min (Z)
• Feed: 2000 mm/min (X,Y) / 1000 mm/min (Z)
Other:
• Weight: Approximately 7000kg
• Floor Space: 4660mm x 2525mm x 2700mm
• Coolant Pump Motor: 0.1kW
• Hydraulic Tool Clamping Motor: 0.75kW
Complete Operation & Maintenance manual with all drawings

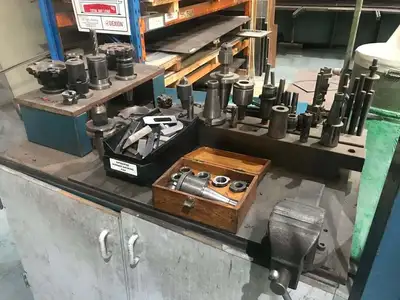

Tooling included.
