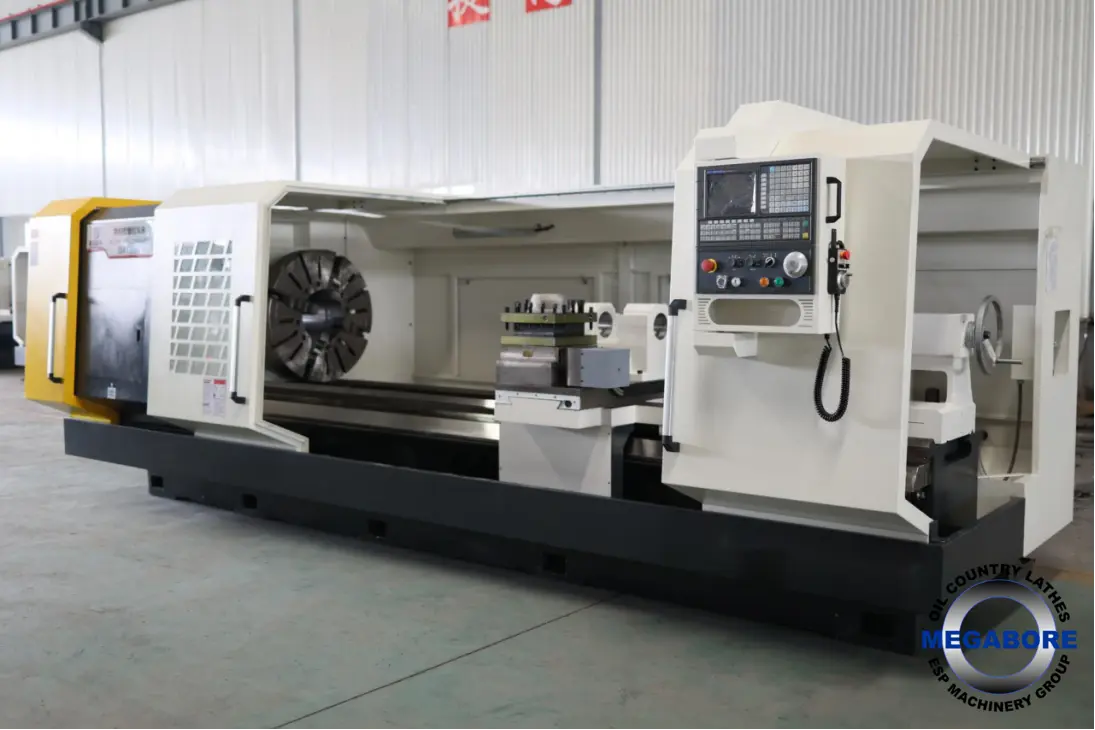

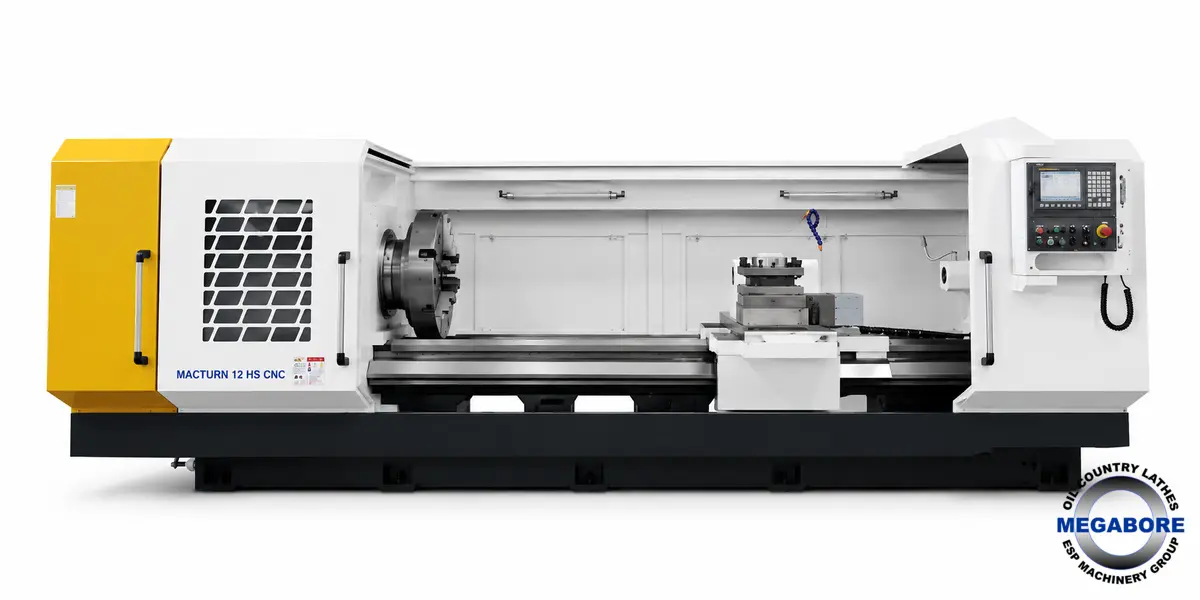

Macturn 12 inch Hollow Spindle CNC Lathe 1000mm swing x 2,3,4, Meters Between Centers.
$230,000.00 AUD
1 available
New
The low priced option to the Megabore heavy duty range. Offers the same HS capacity at a lower cost.
Offering a power 4 way toolpost instead or a 12 position turret. (Optional)

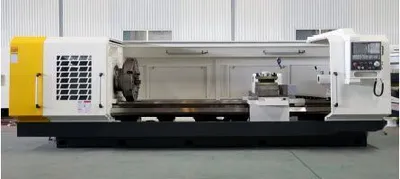

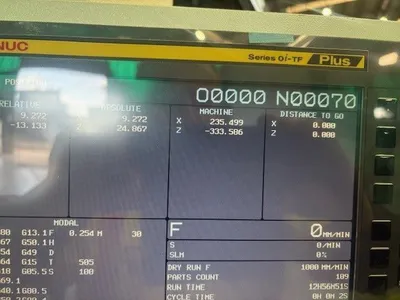

ST1330*4000 CNC Pipe Threading Lathe Machine with FANUC 0I-TF
system with manual guide I fucntion
Voltage:415V 50HZ+Multi-tapping Transformer
Standard configurations:FANUC 22KW servo main motor/ Front and
rear dual K72-780 four-jaw chucks/Four-station electric tool
holder/Electric tailstock/Automatic lubrication/Cooling system/Semienclosed
protective cover/Follow rest/Steady rest.
Max.swing over bed:1000mm
Max.swing over cross slide:610mm
Max.length of work-piece:4000mm
Max. processing length at once:4000mm
Guideway width:755mm
Max. load capacity:6T
Spindle center height:500mm
Spindle bore:305mm
Pipe threading range:Φ80-300mm
Mode of spindle speed:Two-speed frequency conversion,
infinitely variable speed within the gear
Range of spindle speed:Low Speed(L):20-100/High
Speed(H):100-300 r/min
Power of spindle motor:22KW
Max.traverse of X/Z:X:520/Z:4000mm
X/Z rapid traverse:4000/6000mm/min
Tailstock quill Diameter:160mm
Tailstock quill Travel:300mm
Tailstock quill Taper:MT6
Tool shank size: 40×40mm
Chuck:K72-780 Four-Jaw Chuck
Dimensions (L×W×H):6400×2200×2300mm Machine
weight:13T
