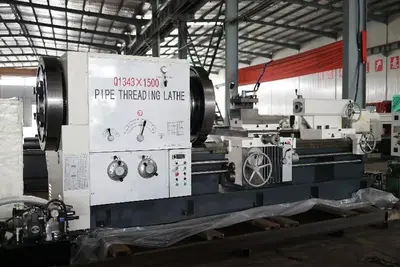

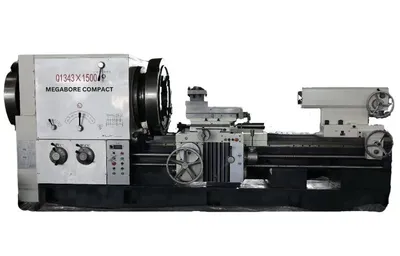

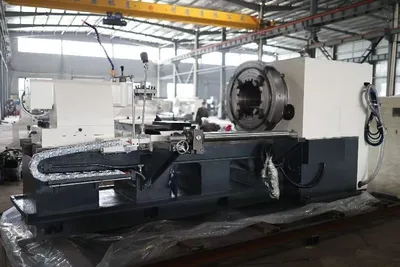

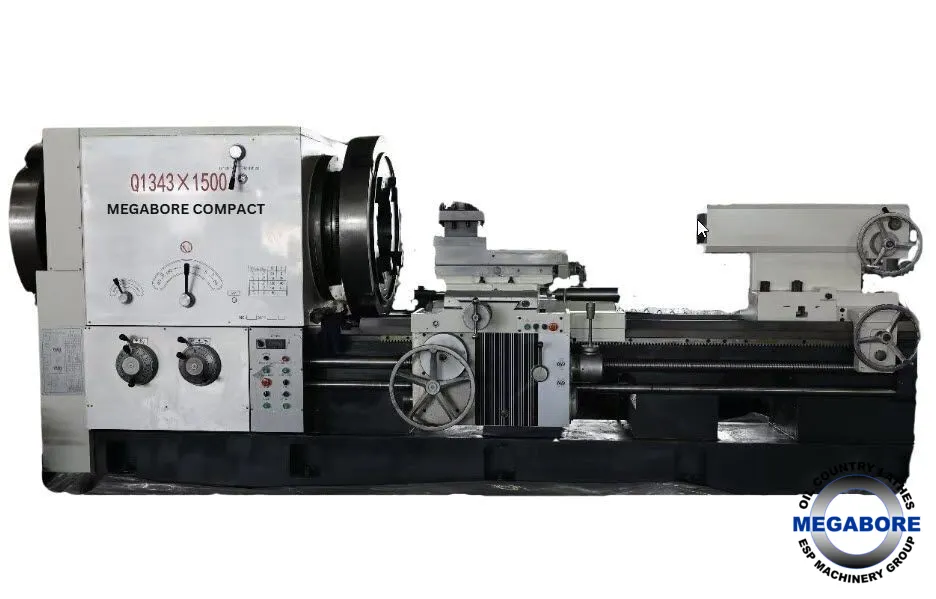

Macturn 17 inch hollow spindle x 1000 mm swing x 1500 mm between centers.
$173,400.00 USD
1 available
New
Macturn's new 17 HS medium duty manual is the perfect choice for your lathe needs. Designed for the oil field, hydraulic and hollow spindle work, this machine combines reliability and precision, ensuring optimal performance for your projects.

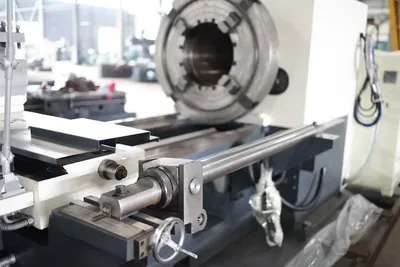

Fitted with 2x 4 Jaw Chucks, Taper turning, splash guards, DRO. Power tail stock.
Available in 2000, 3000, 4000mm between centers.
Also available in CNC version.
Max.diameter swing over bed:1000mm
Max.diameter swing over cross slide:610mm
Max.length of workpiece:1500mm (2000, 3000,4000mm available)
Max.Machining length:1250mm
Pipe threading range:260-430mm
Width of bed:755mm
Spindle bore:440mm
Spindle center height:500mm
Power of spindle motor:22KW
Range of spindle speed:VF2 steps 23-90/65-260mm
Z axis feed grade /range:32/0.1-1.5mm/r
X axis feed grade /range:32/0.05-0.75 mm/r
Carriage raid traverse speed:3740 mm/min
Cross slid raid traverse speed:1870 mm/min
Metric thread grade/range:23/1-15 mm
Inch thread grade/range:22/28-2T.P.I
Traverse of cross slide:520mm
Max. Traverse of turret:300mm
Tailstock quill diameter:160mm
Tailstock quill travel:300mm
Tailstock quill taper:MT6

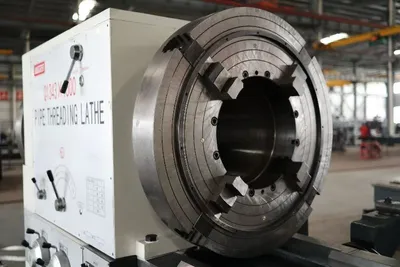

Chuck:4-jaw electric chuck( (Hydraulic clamping )
Overall dimensions(L×W×H): TBA
