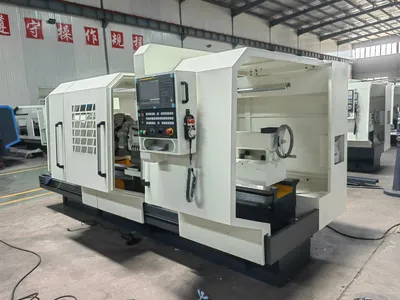

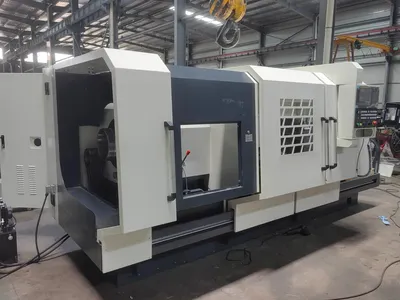

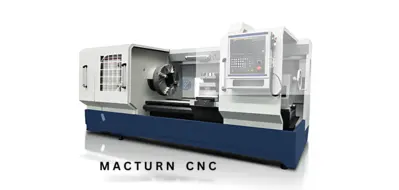

Macturn Plus 10 inch Hollow Spindle CNC Lathe 800mm swing x 2000 Centers
$148,630.00 AUD
1 available
New
Macturn Plus
The Higher version of the 10 Inch HS Macturn with a Fanuc 22kw servo motor and Manual Guide Software.

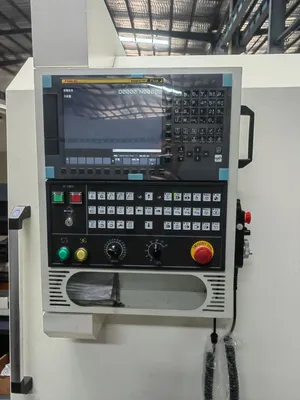

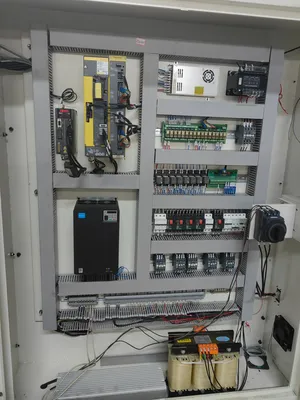

This machine is fitted with the highly respected Fanuc 0i-TF control.

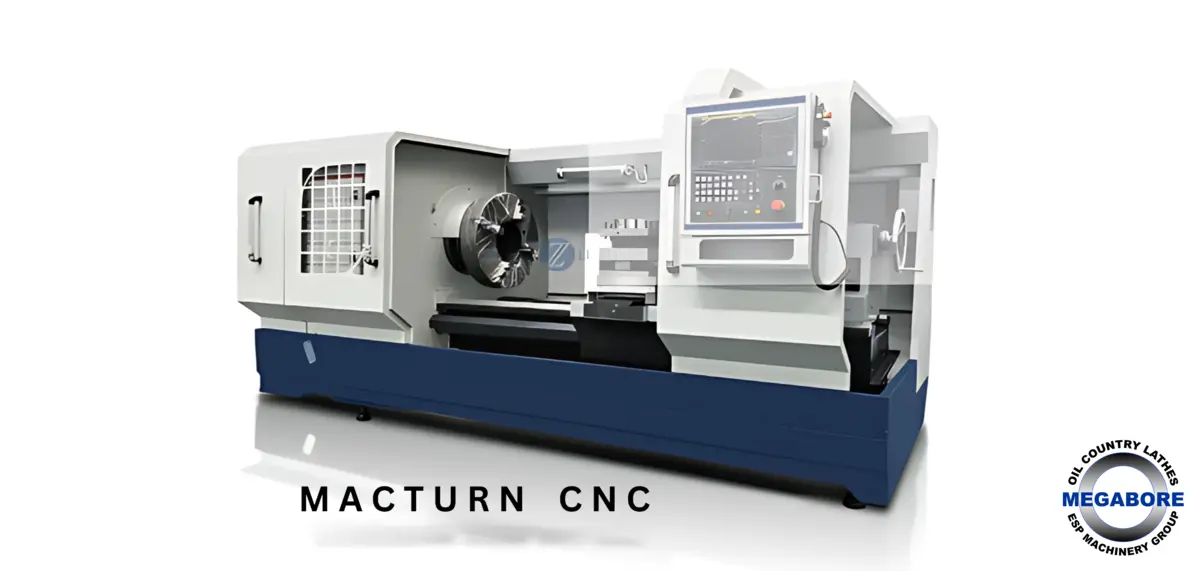

The MACTURN + CNC machine at an unbeatable price.
Shipped world-wide.

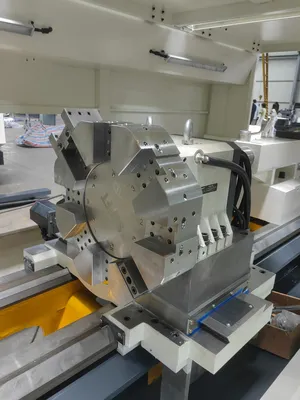

8 station Turret
The Fanuc CNC unit on this machine is suitable for Thread Repair function.
Max. Swing over bed:800mm
Max. Swing over cross slide:480mm
Max. work piece of length:2000mm
Guideway width:550mm
Spindle bore:255mm 10 inch available with a 300mm 12inch bore
Max. load capacity:3T
Spindle center height:400mm
Threading range:Φ50-250mm
Mode of spindle speed: Two-speed frequency
conversion, infinitely variable speed within the gear
Spindle motor power:15KW
Max. traverse of X/Z:X:420mm/Z:3000mm
X/Z rapid traverse:4000/6000mm/min
Tailstock quill diameter:100mm
Tailstock quill travel:250mm
Tailstock quill taper:MT5
Tool shank size:32*32mm
Overall dimension:5300×1900×1900mm
Machine Weight:6.7T

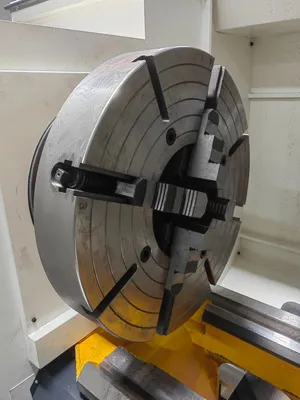

Front and Rear Chucks

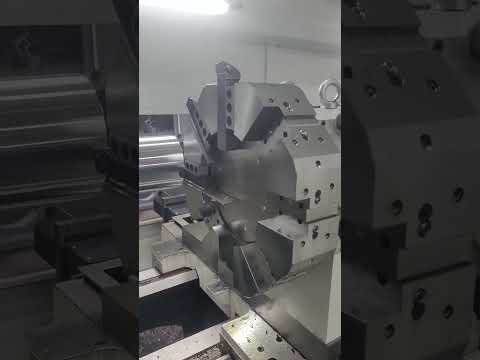

8 Station Turret

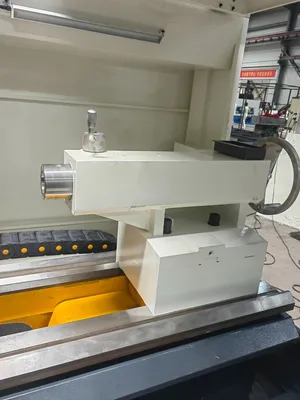

Manual Tailstock
