VMC 4 axis -X-axis: 600mm Y-axis: 400mm Z-axis: 450mm
1 available
New
A great small VMC ideal for intricate components.

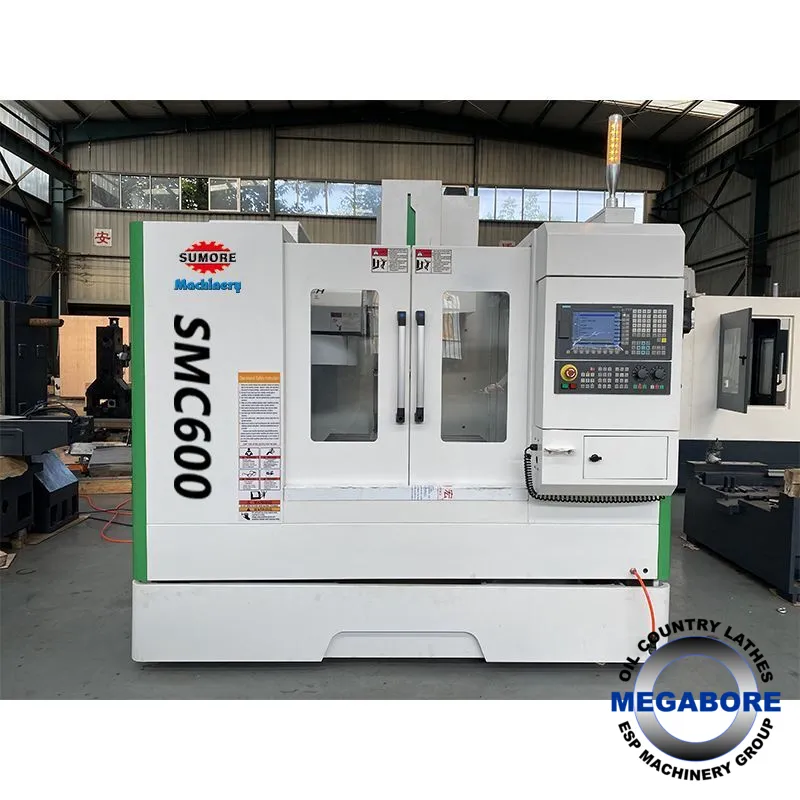

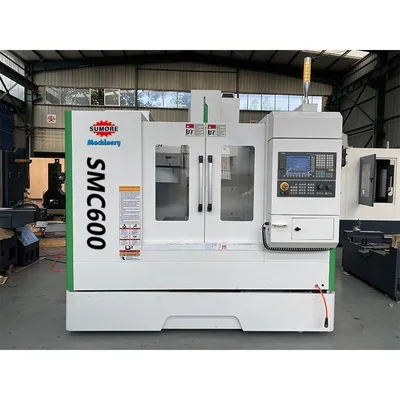

SMC600 Vertical Machining Center with Fanuc-OIMF
system plus manual guide I function & Fanuc servo motor
Configurations:
Fanuc-OI-MF control system
12000 RPM spindle speed

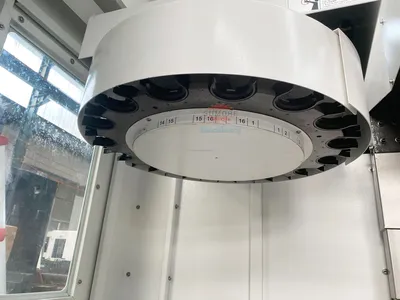

16 tools robot magazine. Worktable: 800*320mm
X/Y/Z travel:600/400/450mm
Terms are 40% deposit with order 60% prior to Shipping including delivery to your door. (Not unloading)
Delivery 90 Days from receipt of deposit.
1.Travel
X-axis:600mm Y-axis:400mm Z-axis:450mm
Spindle nose to table surface:100 -550mm
Four-axis size:125mm
Spindle axis to column surface:360mm

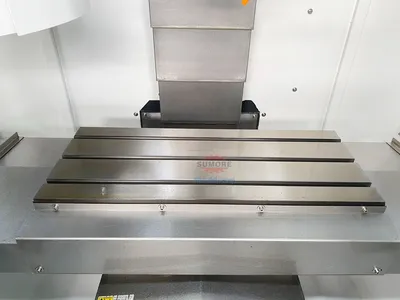

2.Worktable
Table size:800×320mm Max.loading:200kg
T-slot width:18mm T-slot quantity:5
T-slot distance:80mm

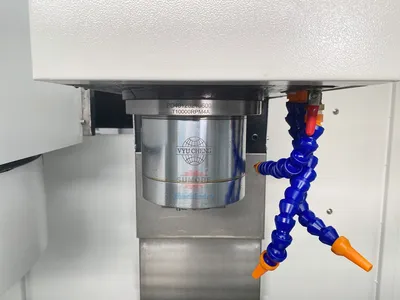

3.Spindle
Spindle taper:BT40 -45°
Spindle speed:12000rpm
Spindle motor:3.7 -5.5kw
4.Tool
Max.tool diameter:φ78/φ125mm
Max.tool length:300mm
Max.tool weight.:8kg
5.Rapid movement
X/Y /Z axis rapid movement rate:15000/15000/15000mm
Cutting feed rate:0-10000mm/min
6.Accuracy
Position accuracy: ±0.015mm
Repeat positioning accuracy: ±0.008mm
7.Motor
(1)Power device Form:3-phase AC 380V±10%
50Hz±10% Capacity:20KVA
(2)Air supply: Using air pressure:0.6 -0.8MPa
8.Dimension and weight
Dimensions:2100 ×1800×2200mm
Machine weight:1900Kg
Centralized automatic oil lubrication ；
External cooling system and water tank；
Simple oil-water separation device；
Full protection sheet metal shield and rail shield；
Adjustable block ；
Tubular work lights, warning lights；
Rigid tapping
