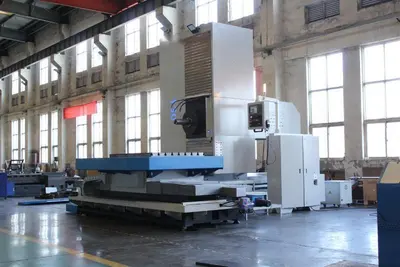

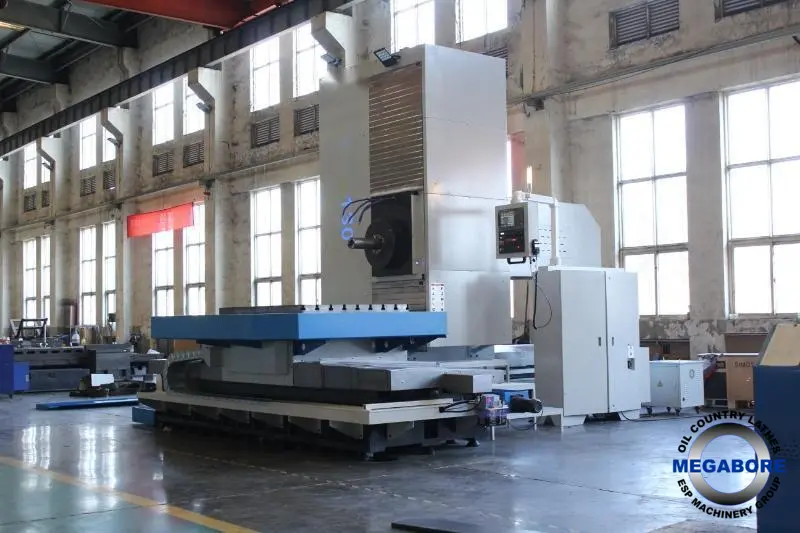

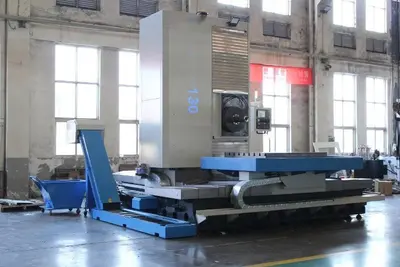

Horizontal CNC Boring & Milling Machine 130mm spindle,1800mm x 1600mm x 1300mm
$224,000.00 USD
1 available
This machine tool is suitable for high-efficiency, high-precision continuous
milling, drilling, boring, and reaming of medium to large-sized and heavy basic parts, as
well as plate, disc, shell, and mold parts. It is widely used in aerospace, shipbuilding, wind
power, petroleum machinery, coal mining machinery, and construction
machinery.
The machine tool performs multiple machining operations such as milling, drilling, boring, reaming, tapping, and countersinking. A single workpiece
clamping allows for efficient and high-precision machining of multiple operations on all four sides of the part. It is suitable for plane milling and hole machining. It can also perform curved surface milling.
Worktable dimensions (L x W): 1400*1000mm
Maximum worktable load: 5000KG
Worktable T-slot dimensions (quantity ~ width x spacing):
7-22*125MM
Worktable indexing: 0.001
Worktable rotation accuracy: 10’’
Worktable transverse travel (X-axis): 1800mm
Spindle head vertical travel (Y-axis): 1600mm
Slide head longitudinal travel (Z-axis): 1300mm
Bore spindle axial travel (W-axis): 550mm
Distance from spindle centerline to worktable: 0-1600mm
Minimum distance from bore spindle end face to worktable
center: 50mm
Bore spindle diameter: ø130mm
Maximum tool weight: 25KG
Bore spindle torque: 1200/1500Nm (30min)
Spindle motor power: 15/18.5KW
Bore spindle inner bore taper: MAS 403(45 DEGREE)
BT50
Bore spindle speed: 12-2000 RPM
Bore spindle speed levels: Stepless speed regulation
Rapid traverse speed (X/Y/Z axes): 10m/min
Rapid traverse speed (W axis): 5m/min
Feed rate (X/Y/Z/W axes): 5-2000mm/min
Positioning accuracy (X/Y/Z axes): 0.030mm
Positioning accuracy (W axis): 0.025mm
Repeatability (X/Y/Z axes): 0.020mm
Repeatability (W axis): 0.020mm
Ball screw size (X/Y/Z axes): ø63*10mm
Ball screw size (W axis): ø50*10mm
Machine weight: 19000kg
CNC system: Fanuc OI MF Plus,
Total electrical capacity: 50KVA; machine tool dimensions
