Turret type Bed Mill 1500 x 360 Table 40 ISO taper. DRO
$24,000.00 AUD
New

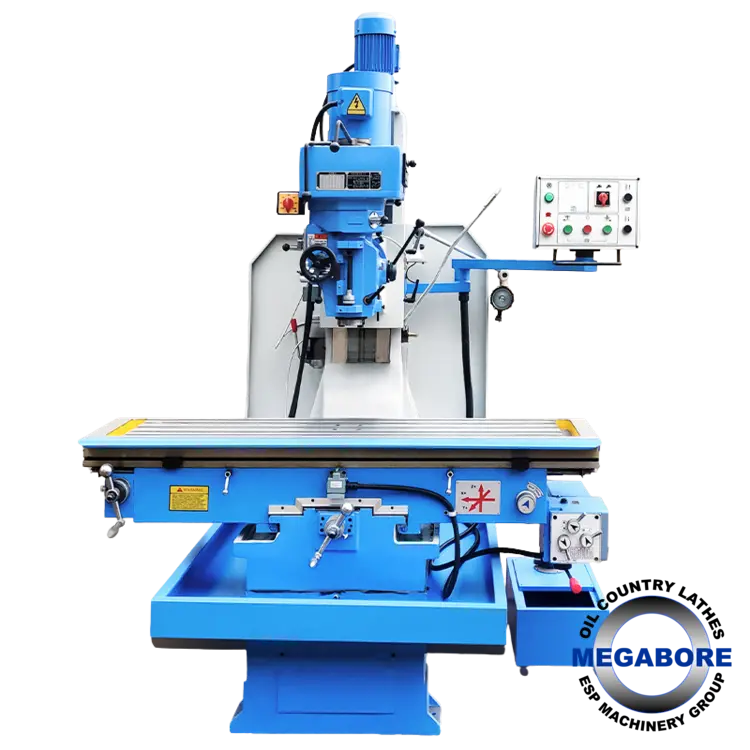

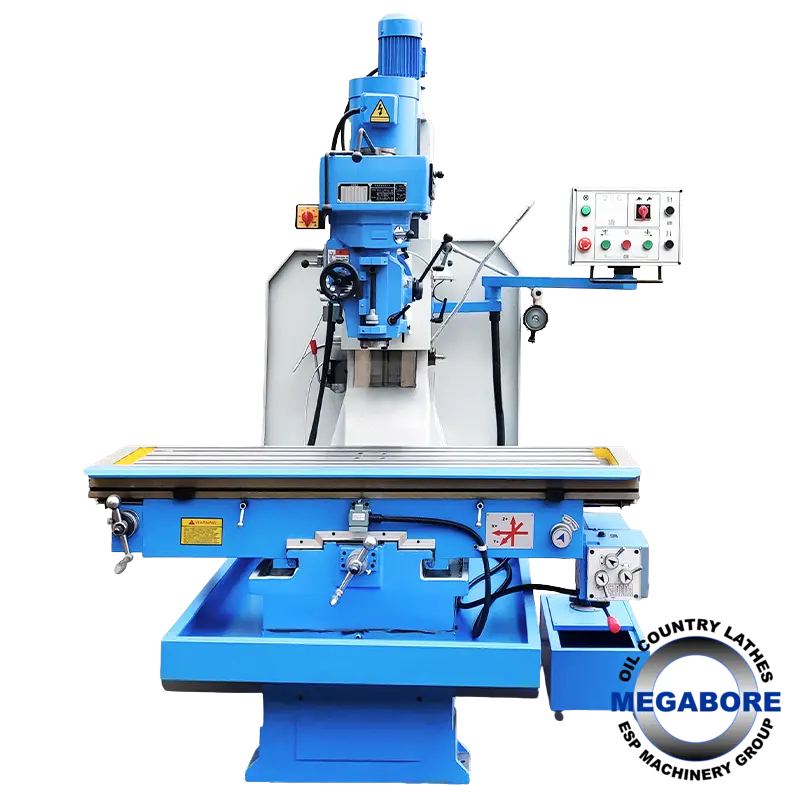

The ESP-Macmill Bed type milling machine is a versatile machine with a capacity usually found in bigger and much more expensive milling machines.
Add in the following features in the price and you have a super buy.

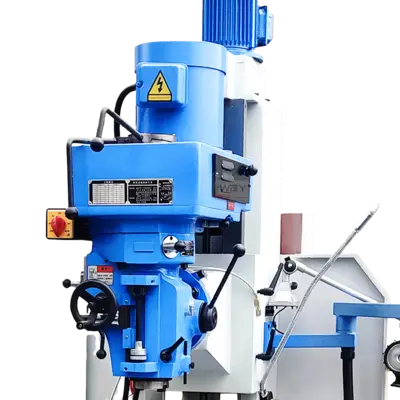

Variable speed turret type head
Power drawbar
3-axis DRO
Collet chuck & Boring Tool set/ 58 piece clamping set/
Spindle taper: ISO40
Spindle stroke:127 (V)
Distance from spindle to table:0 -600 mm
Spindle speeds:60-4540r.p.m

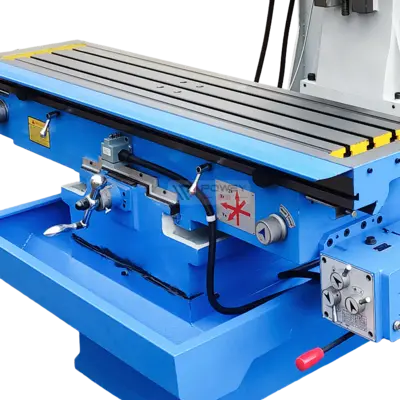

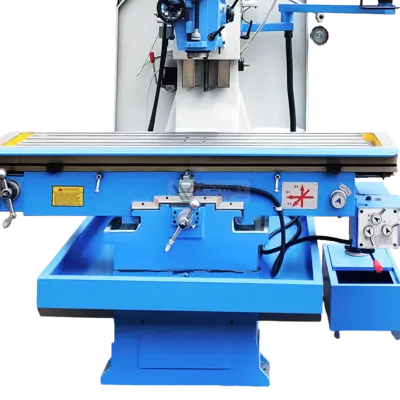

Table size:1500x360 mm
Table travel:1000 /550 /600 mm
Spindle rapid feed speed:0.04/0.08/0.15
Main power:5 HP
Packing size:1850x1500x2400 mm(Single unit
packaging)
N.W.:2520 kg(Single unit weight)
