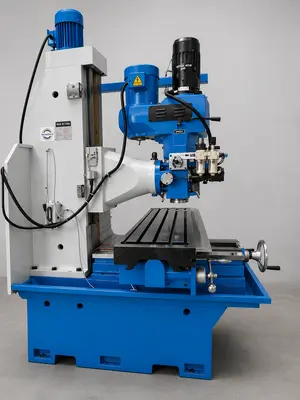

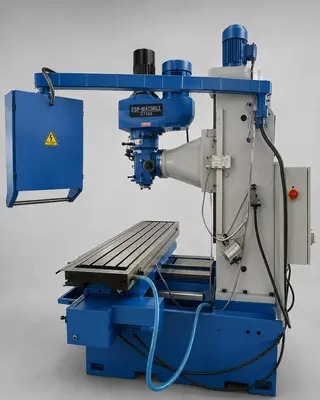

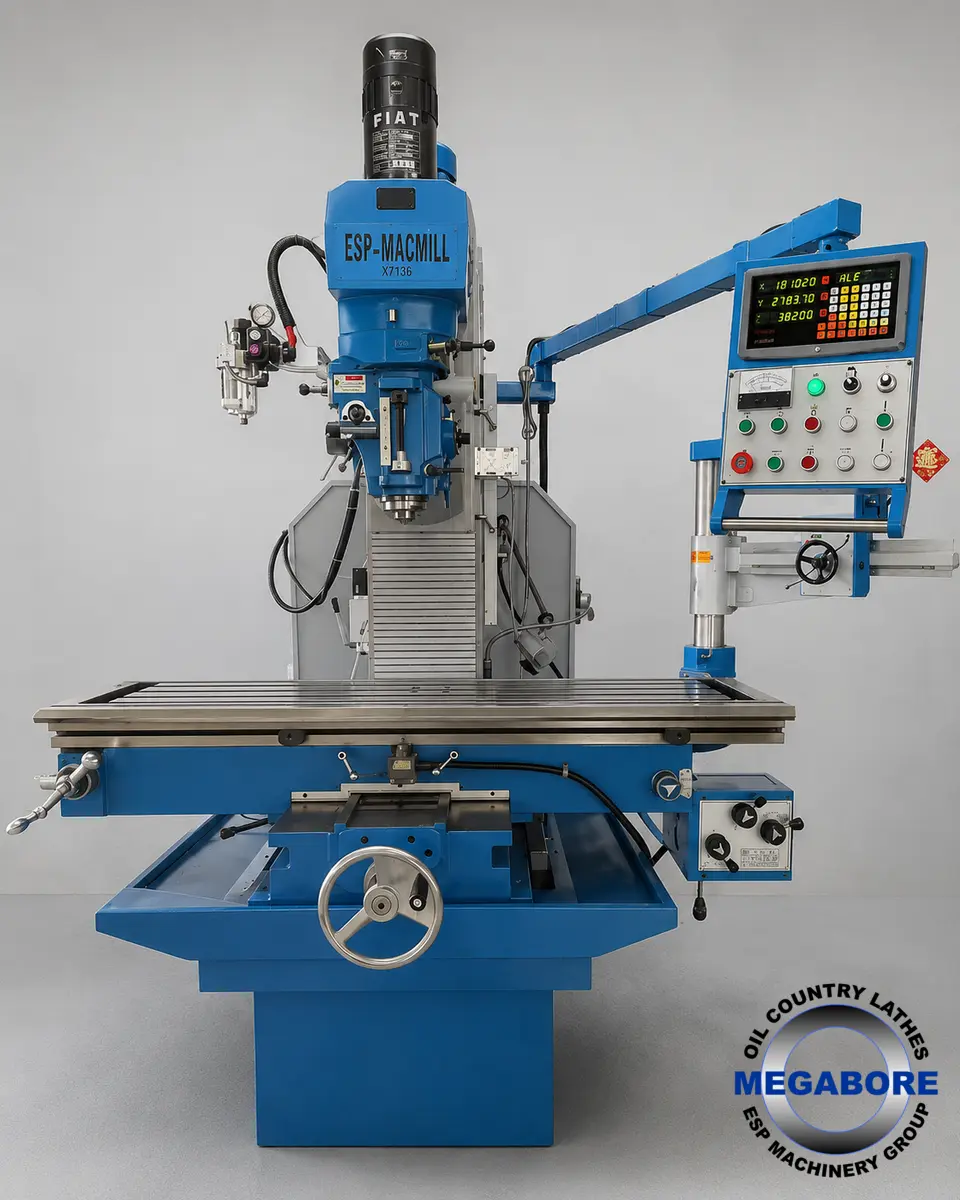

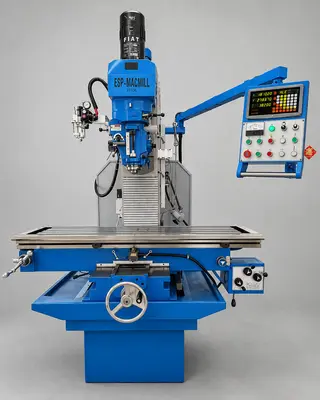

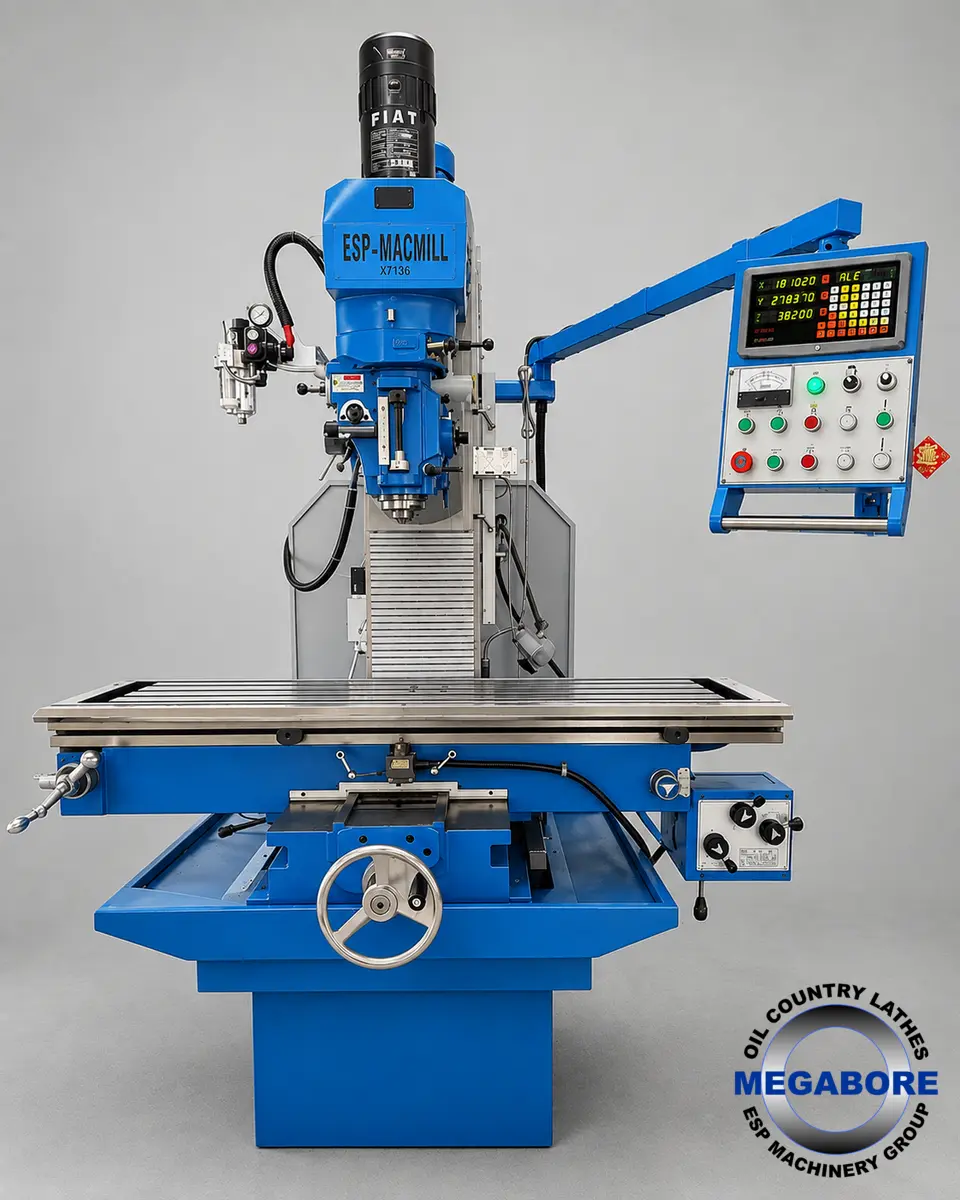

ESP Macmill Turret type Bed Mill 1500mm x 360mm Table 40 ISO Soindle Taper. DRO
$32,500.00 AUD
New
The ESP-Macmill Bed type milling machine is a versatile machine with a capacity usually found in bigger and much more expensive milling machines.
Add in the following features in the price and you have a super buy.
Variable speed turret type head
Power drawbar
3-axis DRO
Collet chuck & Boring Tool set/ 58 piece clamping set/
In stock for immediate delivery.
Spindle taper: ISO40
Spindle stroke:127mm (V)
Distance from spindle to table: 0 -600 mm
Spindle speeds: 60-4540rpm
Table size: 1500mm x 360 mm
Table travel:1000mm /550mm /600mm
Spindle rapid feed speed: 0.04/0.08/0.15
Main power: 5 HP
Packing size:1850mm x 1500mm x 2400mm
N.W.:2520 kgs (Single unit weight)
The ESP-Macmill Bed type milling machine is a versatile machine with a capacity usually found in bigger and much more expensive milling machines.
Add in the following features in the price and you have a super buy.
Variable speed turret type head
Power drawbar
3-axis DRO
Collet chuck & Boring Tool set/ 58 piece clamping set/
In stock for immediate delivery.
Metric
| Table-W | 359.92 mm |
| Table-L | 1,500.1 mm |
| Travel-Long | 1,000 mm |
| Travel-Cross | 549.91 mm |
| Power | 3.7 kW |
| RPM | 0 RPM |
| Taper | ISO40 |
| Dimensions | 72.8" x 59.1" x 94.5" |
| Weight | 2520 |
Spindle taper: ISO40
Spindle stroke:127mm (V)
Distance from spindle to table: 0 -600 mm
Spindle speeds: 60-4540rpm
Table size: 1500mm x 360 mm
Table travel:1000mm /550mm /600mm
Spindle rapid feed speed: 0.04/0.08/0.15
Main power: 5 HP
Packing size:1850mm x 1500mm x 2400mm
N.W.:2520 kgs (Single unit weight)
