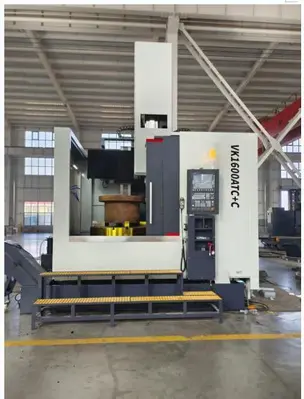

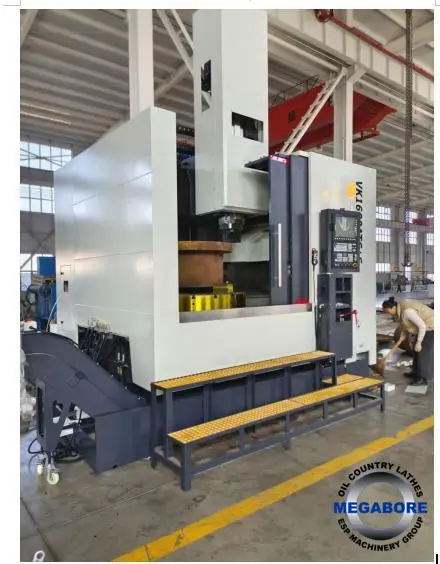

ESP-Macbore CNC Vertical Boring Mill
Fanuc with manual guide.
RAM type
Chuck 1600mm Diameter 3-jaw hydraulic chuck
Swing 2000mm
Z axis min 750mm
2000kg max load on the table.
Tool change minimum 4
Electronic control cabinet cooling
Spindle system:
Spindle unit A2-15;
Main servo motor power;
Equipped with an Italian dual -speed gearbox;
Equipped with an oil cooling device to ensure more stable operation.
Hydraulic centering chuck diameter :Φ1600(mm)
Maximum turning diameter : Φ1800mm
Maximum turning diameter : Φ1600mm
Maximum workpiece height : 800mm
Minimum machined hole diameter : Φ380mm
Maximum workpiece weight ： 2000kg
Spindle speed ：60-800 (r/min) (low speed: 60-
320(r/min) ; high speed: 320-800(r/min) )
1600mm Hydraulic chuck speed ： 300 (Maximum
speed)
Maximum torque of worktable ： 3100NM
Main motor power (continuous/30 minutes): 37kw
form of spindle end： A-15
two-speed gearbox 1:1/1:4
X-axis movement distance: -100 +750mm
Crossbeam lifting movement distance : 750mm
Z-axis slide block lifting movement distance : 900mm
Crossbeam lifting speed: 4(m/min)
X/Z axis speed :12/4(m/min)
Servo motor torque :X/Z Nm 30/22
Servo motor power :X/Z kW 4.7/3.5
Ball screw diameter :X/Z Φ5010mm /Φmm 5008
X specification of roller linear guide 2R-RGH55
Cross -sectional dimensions of square slide block :
240*240mm
Power supply for machine tool: 75 (kVA)
Volume (length × width × height: 3500x3250x3750 mm
total weight : 16000kg
Fanuc with manual guide.
RAM type
Chuck 1600mm Diameter 3-jaw hydraulic chuck
Swing 2000mm
Z axis min 750mm
Tool change minimum 4
+Electronic control cabinet cooling
+Spindle system:
+Spindle unit A2-15;
+Main servo motor power;
+Equipped with an Italian dual -speed gearbox;
+Equipped with an oil cooling device to ensure more stable operation of the
+reducer;
+Hydraulic tree -claw centering chuck Φ1600.
high density gray castings HT300
main shaft bearing double column cylindrical roller bearing NN3052K
double column cylindrical roller bearing NN3048K
double thrust angular contact ball bearing 223452
high precision linear guide 2R-RGH55
High -precision ball screw, Class C4 Φ5010 /Φ5008
balance cylinder device
screw bearing ABR3572
spindle cooling device LO-70C
automatic lubrication installation HG2 -L
cooling device, flushing device
Industrial air conditioning
oil-water separator
electrical apparatus element
hydraulic unit
reduction box CB-15
oil chuck Φ1600
workpiece spindle servo motor 37KW
fully enclosed protection
